MAX471 3A current sensor

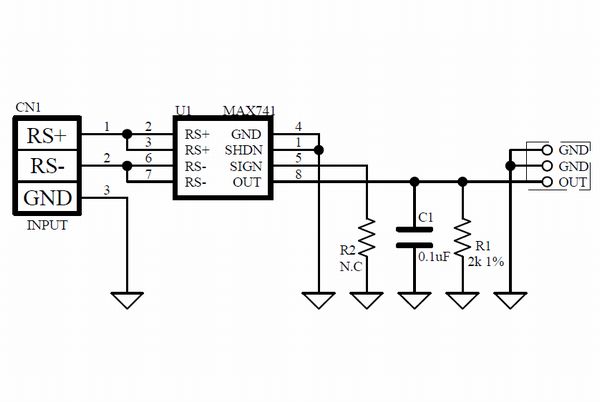

This module works on the principle of floating voltage drop across the shunt (around 35mΩ) and will allow you to measure the current for your application.
Specifications:
- Chip: MAX471
- Voltage: 3-36V
- Current measurement range: 0-3A.
- Sense Resistor: 35mΩ
- Output value 1V/A
- Measurement error (@ 25°C): < 2%
- Operating temperature: -40°C - +85°C.
- Size: 25x15mm.

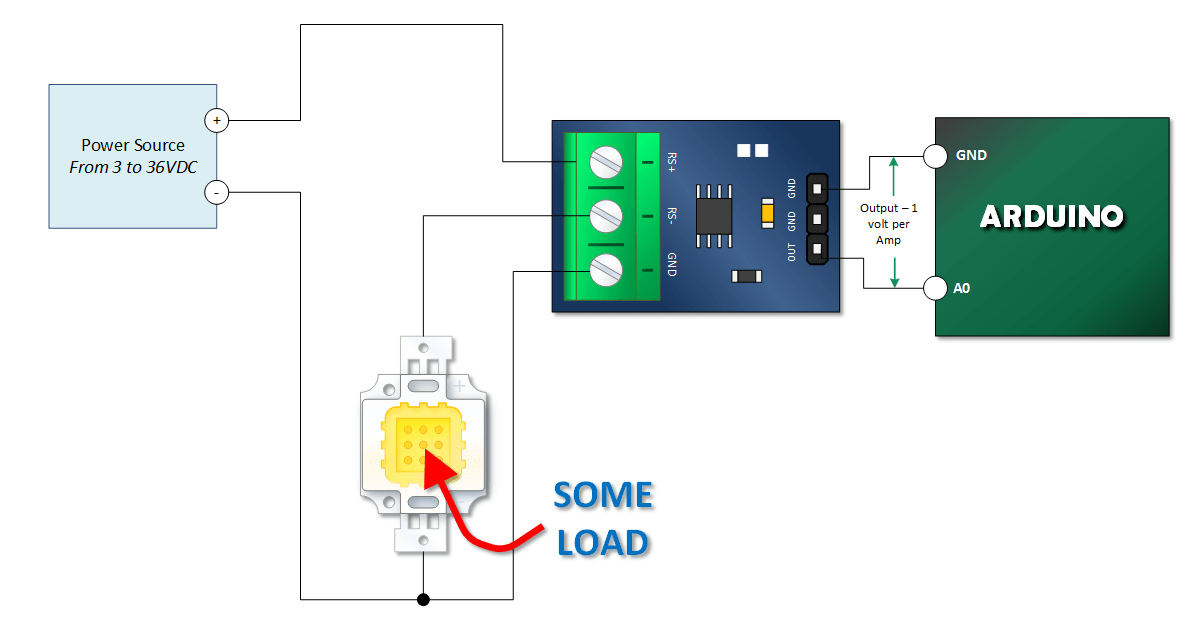

Connection
Included in delivery:
- 1pc Current sensor MAX471 3A
Sources:
Remark:
- This product is not a standalone functional unit and may require professional installation.
- Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
Additional parameters
| Category: | Retired |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.003 kg |
| Output: | Analog |
| Sensor type: | Current |
| The item has been sold out… | |
