    2.25" 76x284 TFT Colour Display ST7789, SPI

    Code: LA141117
    Not rated
    LaskaKit 2 25 76x284 tft barevny displej st7789 spi 4
    €6,13 €5,07 excl. VAT
    Currently not available
    The item has been sold out…

    This is a lowcost but powerful TFT display that will give your project a great look! The display has a resolution of 76x284 pixels and its size is only 2.25 inches.

    Detailed information

    Free Shipping
    Free Shipping
    From 100 EUR
    30 Days to Return
    30 Days to Return
    For Registered
    30 Days to Return
    30 Days to Return
    For Registered Customers
    Free Shipping
    Free Shipping
    For orders from 100 EUR
    It Doesn't End With Shipping
    Customer Care
    We handle complaints within 5 days
    Quick dispatch
    Quick dispatch
    Within 24 hours

    Product detailed description

    This is a lowcost but powerful TFT display that will give your project a great look! The display has a resolution of 76x284 pixels and its size is only 2.25 inches. This will allow you to display a high-quality image, which will really enhance your project.

    Note: If you are using a 3.3 V MCU, such as our ESP32-S3-DEVKit, you can connect directly. If you are using a 5 V MCU, make sure you use a logic level converter. An example of the wiring is in the test code on GitHub

    Specifications:

    • Resolution: 76x284 pixels
    • Colors: RGB 65k
    • Driver: ST7789
    • Connection: SPI
    • Working voltage: 3.3V
    • Backlight: 3.3V
    • Dimensions: 73 x 21 x 3.5 mm

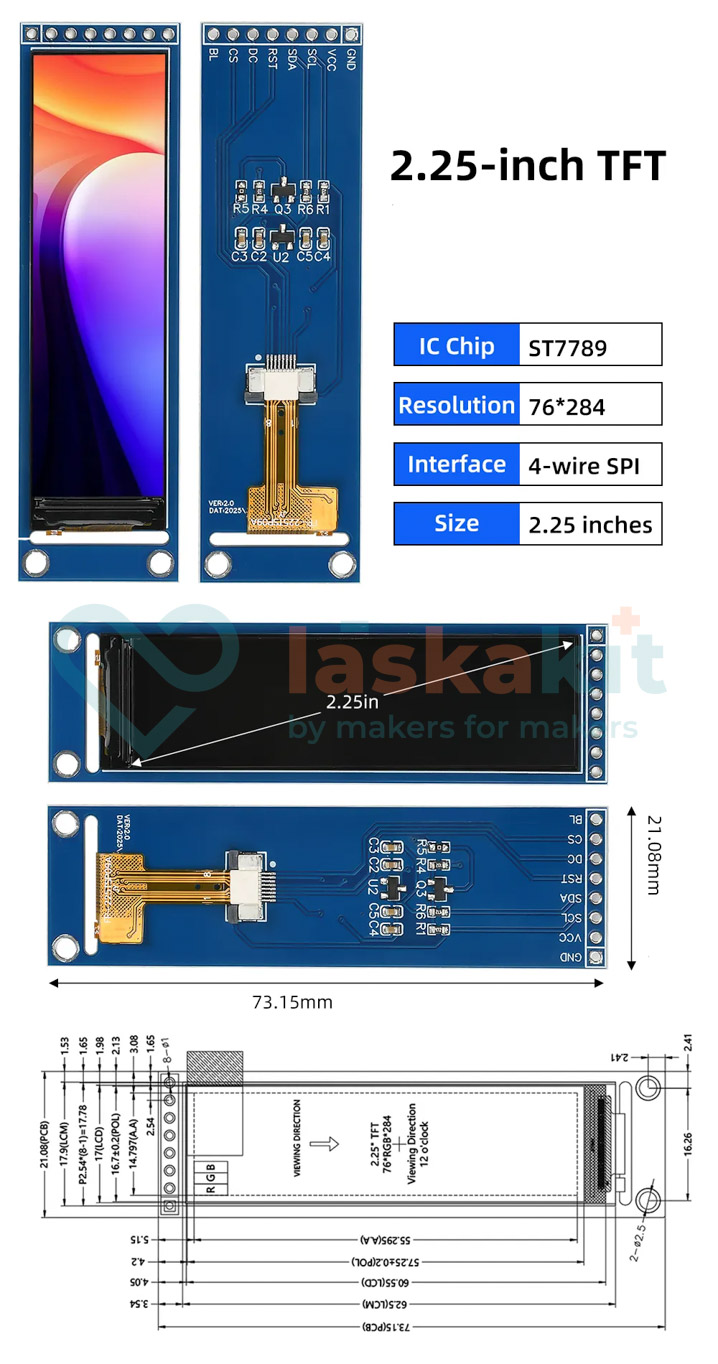

    LaskaKit-2-25--76x284-tft-barevny-displej-st7789--spi-d

    Delivery components:

    • 1pc 2.25" 76x284 TFT Colour Display ST7789, SPI

    Note:

    • This product is not a standalone functional unit and may require professional installation.
    • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

    Additional parameters

    Category: TFT LCD Displays
    Warranty: 2 years
    Weight: 0.024 kg
    The item has been sold out…
    NX4827T043
    Nextion orig. NX4827T043 4.3" 480 x 272 TFT display
    In stock (20 pcs)
    €68,36 excl. VAT
    €82,72

    Original Nextion TFT display with 480 x 272 pixels and touch layer.

    LA141007E
    MPI7002 02
    7" 1024x600 TFT display for Raspberry Pi, HDMI, touch
    In stock (7 pcs)
    €37,22 excl. VAT
    €45,04

    7" 1024x600 TFT display for Raspberry Pi, HDMI, touch

    LA141071A
    LaskaKit NX1060P101 011C I 1
    Nextion orig. Intelligent NX1060P101-011C-I 10.1" 1024×600 TFT capacitive display
    In stock (6 pcs)
    €164,16 excl. VAT
    €198,63

    Nextion The Intelligent NX1060P101-011C is a super display that's ideal for quick Human Interface (HMI) projects

    LA141108C
    Show all alternative products

    Be the first who will post an article to this item!

    Do not fill out this field:
    Do not fill out this field:

    List of discussions

    Avatar of author chibějící informace 25/10/2025 03:48
    Stránka s produktem nemá správné informace, chibý: schéma breakout desky a samotného dipleje. datasheet driver chipu. ukázka kódu pro specifikovaný display. Svhéma a datasheet k displeji je zde: https://www.buydisplay.com/2-25-inch-tft-serial-spi-76x284-lcd-display-module-w-st7789p3 a schéma breakout jde najít po kopání na aliexpresu. A hlavně, backlight vyžaduje open drain, takže musí být přitažené na gnd.
    KL Avatar of author chybějící informace 25/10/2025 09:04
    Datasheety jsme přidali, schéma není nutná. Příklady použití s ESP32 tam jsou
