2.42" 128x64 OLED display, I²C, white

Product detailed description

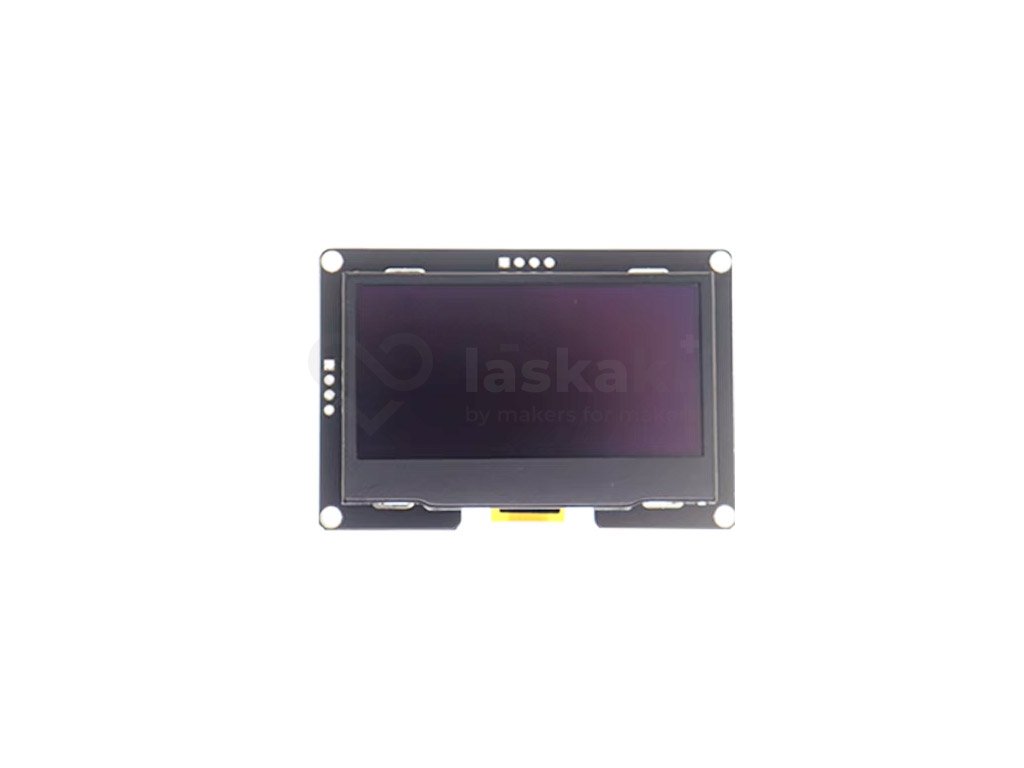

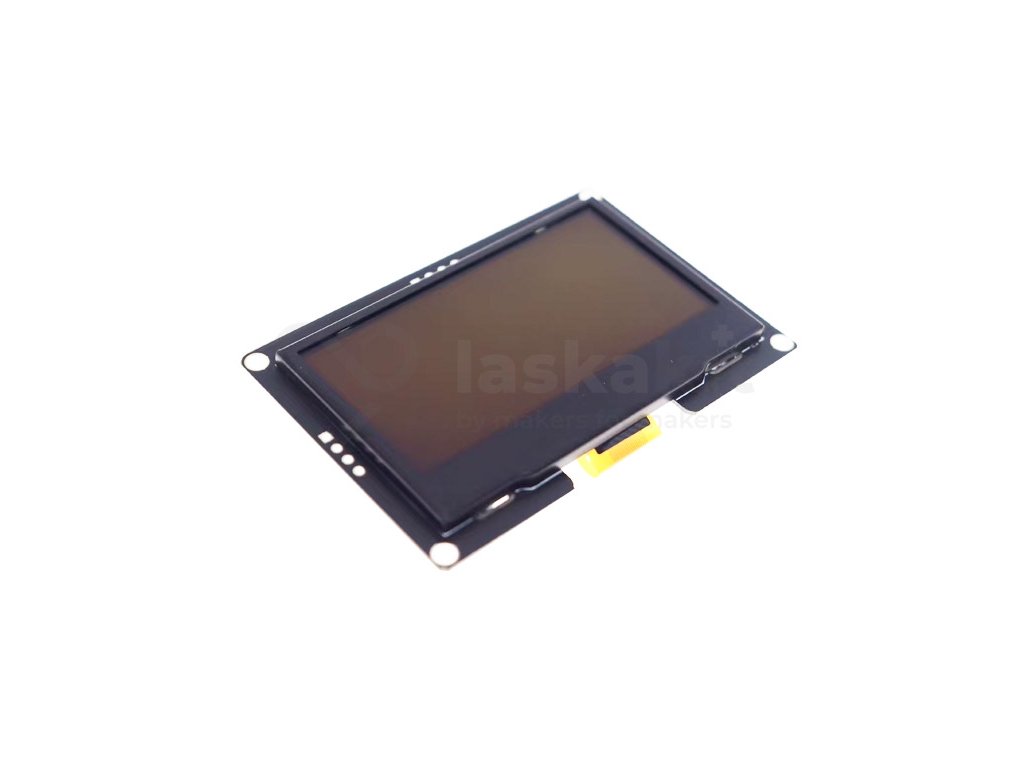

Large OLED display with a diagonal of 2.42" and a resolution of 128×64 pixels, using a two-point I²C interface. The display provides high contrast, a wide viewing angle, and a bright white image on a black background. Thanks to its low power consumption and simple connection, it is ideal for use in microcontroller projects such as ESP32, Arduino, STM32 and other embedded systems.

Specifications:

• Diagonal: 2.42" (≈ 61 mm)
• Resolution: 128 × 64 pixels
• Display type: OLED (organic LED)
• Display colour: white on black background
• Controller: SSD1309 (compatible with SSD1306 libraries with modification)

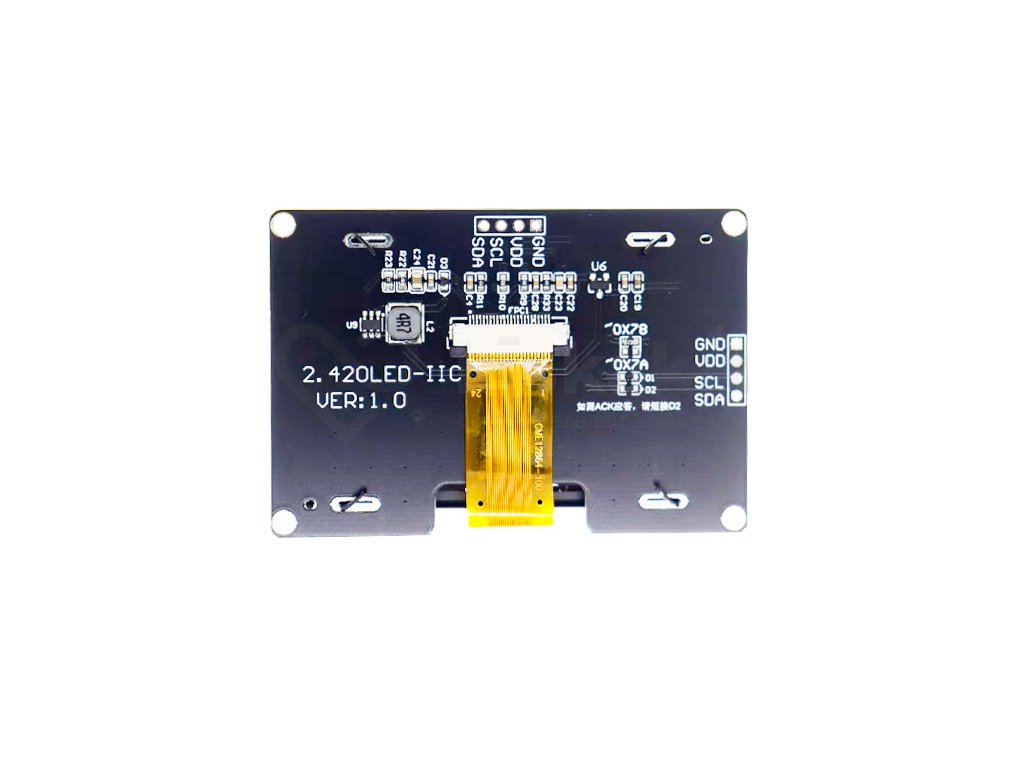

• Interface: I²C (4 pins: VCC, GND, SCL, SDA)
• Supply voltage: 3.3V or 5V (internal stabilisation)
• Operating current: approx. 100–300 mA
• Dimensions: 70 x 48 x 6mm
• Active area: approx. 55 × 28 mm
• Mounting: M3 screw holes

Package contents:

• 1× OLED display 2.42" 128×64, I²C, white

Notes:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustrative purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
