    Home / Displays / TFT / 5" 800x480 TFT display for Raspberry Pi, HDMI, capacitive touch

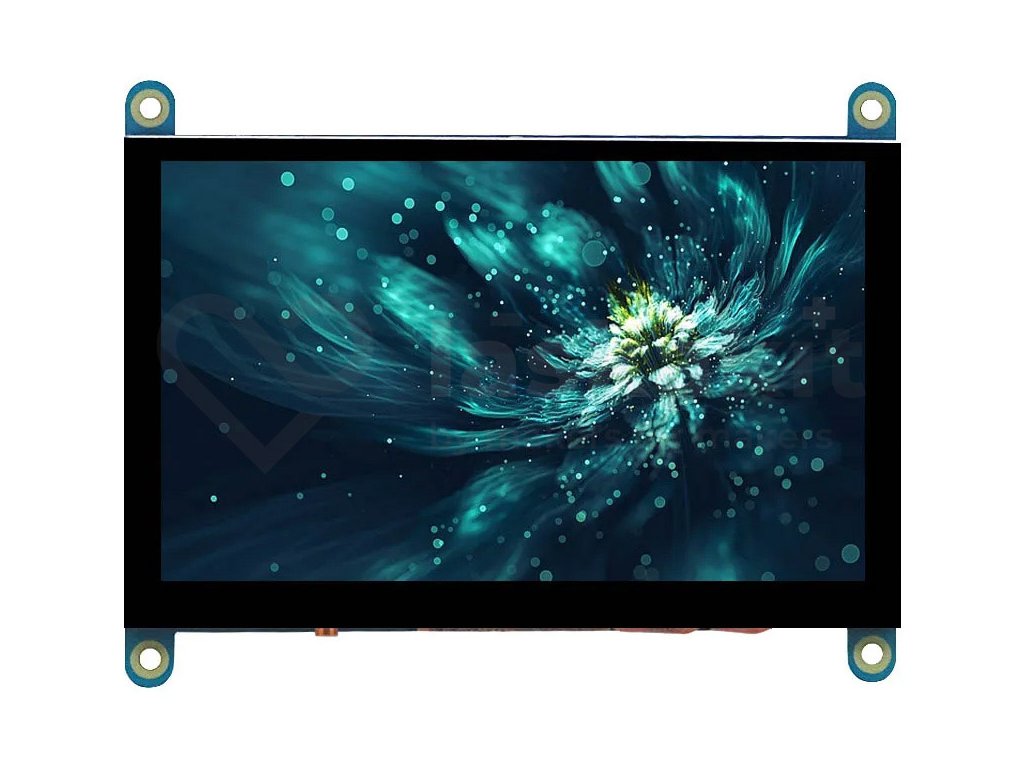

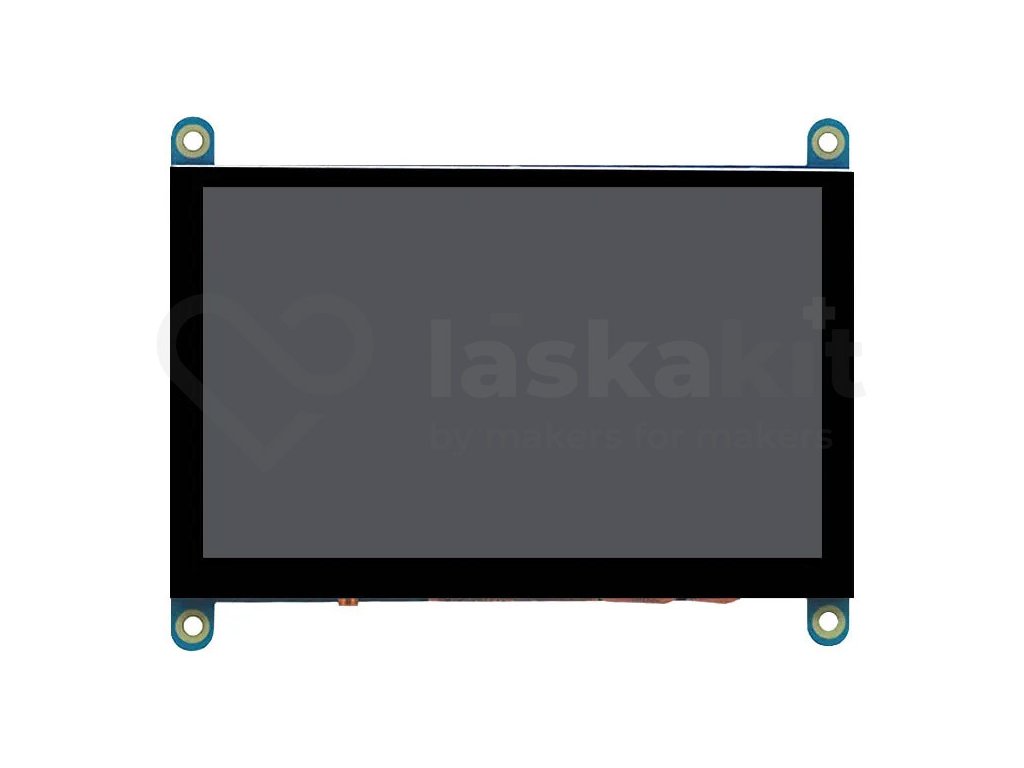

    5" 800x480 TFT display for Raspberry Pi, HDMI, capacitive touch

    Code: LA141049
    2 ratings
    LaskaKit 5 800x480 tft displej pro raspberry pi hdmi kapacitni dotyk 2
    €32,62 €26,96 excl. VAT
    In stock (6 pcs)
    Delivery to:
    09/12/2025

    This amazing display is the best way to add a pretty big, colorful and bright display to your project with Raspberry Pi.

    Detailed information

    Free Shipping
    Free Shipping
    From 100 EUR
    30 Days to Return
    30 Days to Return
    For Registered
    30 Days to Return
    30 Days to Return
    For Registered Customers
    Free Shipping
    Free Shipping
    For orders from 100 EUR
    It Doesn't End With Shipping
    Customer Care
    We handle complaints within 5 days
    Quick dispatch
    Quick dispatch
    Within 24 hours

    Related products

    rpi4 2
    Raspberry Pi 4B 2GB RAM
    Currently not available
    €49,88 excl. VAT
    €60,36

    Single chip mini computer Raspberry Pi 4B, 4-core 1.5 GHz Cortex-A72 + VideoCore VI, 2GB LPDDR4 SDRAM, microSD reader, Wi-Fi 802.11a/b/g/n/ac, Bluetooth 5.0 + BLE, Gigabit...

    LA1001102
    rpi4 2
    Raspberry Pi 4B 4GB RAM
    Currently not available
    €59,12 excl. VAT
    €71,54

    Single chip mini computer Raspberry Pi 4B, 4-core 1.5 GHz Cortex-A72 + VideoCore VI, 4GB LPDDR4 SDRAM, microSD reader, Wi-Fi 802.11a/b/g/n/ac, Bluetooth 5.0 + BLE, Gigabit...

    LA1001104
    rpi4 2
    Raspberry Pi 4B 8GB RAM
    Currently not available
    €82,73 excl. VAT
    €100,10

    Single chip mini computer Raspberry Pi 4B, 4-core 1.5 GHz Cortex-A72 + VideoCore VI, 8GB LPDDR4 SDRAM, microSD reader, Wi-Fi 802.11a/b/g/n/ac, Bluetooth 5.0 + BLE, Gigabit...

    LA1001108
    Show all related products

    Product detailed description

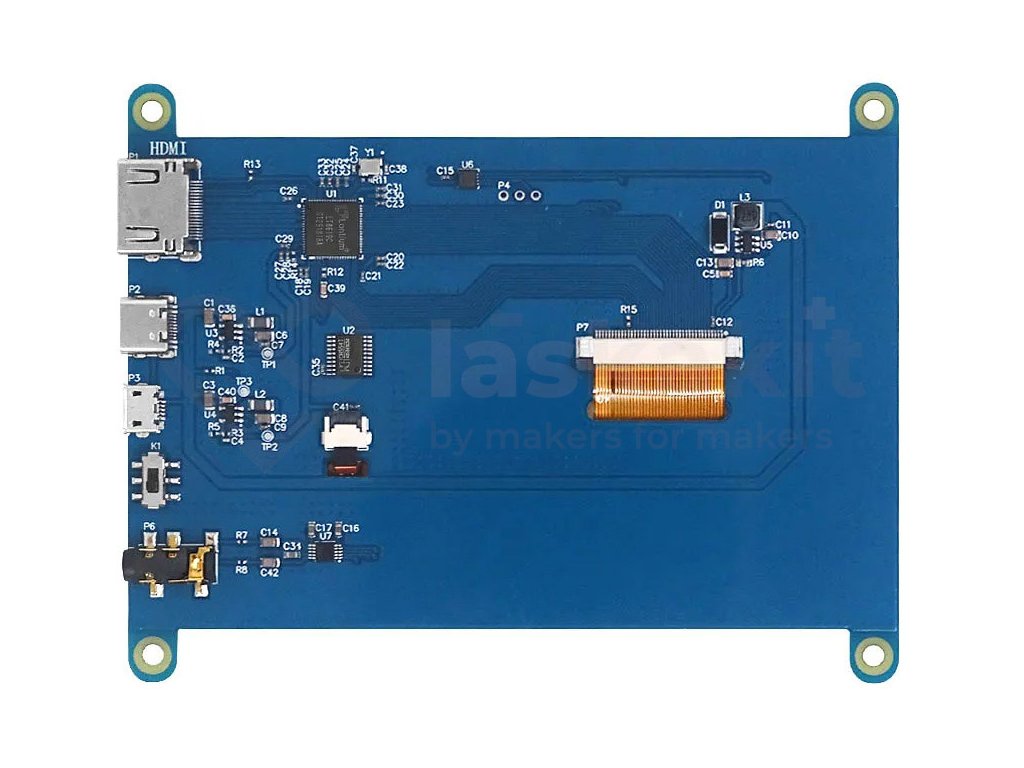

    This amazing display is the best way to add a pretty big, colorful and bright display to your project with Raspberry Pi. The display functions as a standalone monitor. The board also integrates a headphone output in the form of a standard 3.5mm jack for connecting headphones or an amplifier. Sound is transmitted via HDMI. The microUSB and USB-C connectors are used for power and touchpad connectivity. Only one USB cable is needed for both - data and power are supplied via the same cable. Therefore, an external power supply can be used for power supply. The module also has mounting holes that allow the display to be easily mounted into the structure itself.

    Specifications:

    • Display size: 5"
    • Resolution: 800x480 pixels
    • Touch panel: capacitive, maximum 5 points
    • Dimensions: 122x95x15mm
    • Compatible with common mini PCs such as Raspberry Pi, BB Black, Banana Pi and Windows PC
    • It can also be used as a universal HDMI display, for connecting computers, TV boxes, Xbox360, PS4, Nintendo Switch, etc.

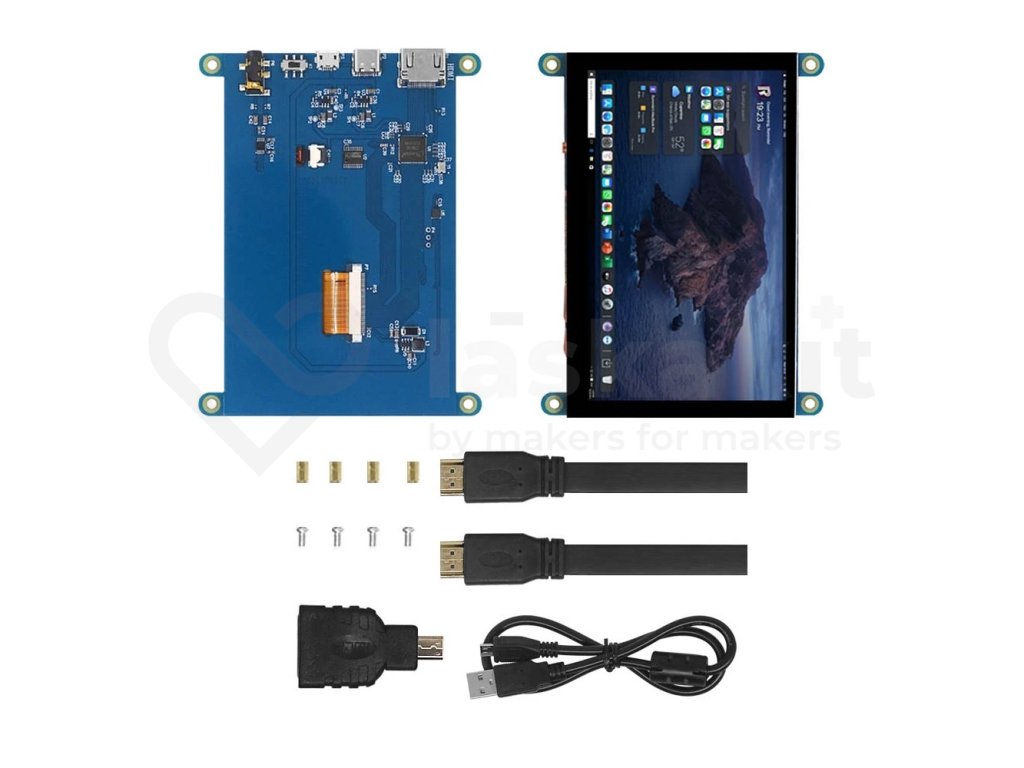

    Included in delivery:

    • 1pc 5" TFT display
    • 1pc approx. 30cm HDMI cable
    • 1pc approx. 46cm microUSB cable
    • 1 pc HDMI - microHDMI adapter
    • Fasteners

    Remark:

    • This product is not a self-contained functional unit and may require professional installation
    • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

    Additional parameters

    Category: TFT LCD Displays
    Warranty: 2 years
    Weight: 0.251 kg
    5" palcový TFT LCD Displej 800x480 SSD1963 Dotykový
    5" 800x480 TFT display, SSD1963, touch
    Currently not available
    €49,55 excl. VAT
    €59,95

    Colour TFT LCD display with 800x480 pixels and touch layer.

    LA141044
    240x320 Barevný LCD TFT displej 2.2" SPI
    2.2" 240x320 TFT display, ILI9341, SPI
    In stock (19 pcs)
    €10,20 excl. VAT
    €12,34

    Colour TFT LCD display with 240x320 pixels.

    LA141039
    2.8" Palcový Barevný Dotykový TFT LCD Displej 240x320 ILI9341 SPI
    2.8" 240x320 TFT display, ILI9341, SPI, touch
    In stock (30 pcs)
    €10,20 excl. VAT
    €12,34

    Colour TFT LCD display with 240x320 pixels and touch layer.

    LA141043
    Show all alternative products
    5,0 2 ratings
    5
    2x
    4
    0x
    3
    0x
    2
    0x
    1
    0x
    Do not fill out this field:

    List of ratings

    5
    PZ Avatar of author | 22/02/2025
    Displej je super, jen je škoda že má konektory u hrany displeje a proto kabely zbytečně moc vyčuhují ven.
    5
    MK Avatar of author | 18/02/2025
    rychlovka k rpi
    Do not fill out this field:

    List of discussions

    VD Avatar of author Schéma konektorů na desce 26/09/2025 17:40
    Vidím, že v nabídce je více displejů různé velikosti s téměř identickou deskou. Existuje nějaká dokumentace nebo schéma zapojení těch konektorů z desky přímo do displeje? Ohledně podsvícení, budou to tak dva max 4 piny, žádné pwm tam osazené asi není. Jenže které? Nezkoušel to už někdo?
    MF Avatar of author Schéma konektorů na desce 29/09/2025 09:35
    Dobrý den, bohužel k těmto displejům žádná dokumentace není.
    VD Avatar of author Podsvícení 25/09/2025 20:29
    Nepřišel jsem na to, jak změnit podsvícení. Na displeji je je zezadu vypínač a softwarově to myslím nejde. Podobné modely na to tlačítko maji, ale tady nic. Určitě by se to dalo nějak upravit přidáním rezistoru a posuvného přepínače za stabilizátor, ale kam?
    MF Avatar of author Podsvícení 26/09/2025 13:52
    Dobrý den, bohužel nevíme, jak by se dal jas řídit. Displej to standardně nepodporuje.
    VD Avatar of author 25/09/2025 23:35
    ...zezadu je JEN vypínač a... no a samozřejmě jsem koukal do sys/backlight a zkoušel nastavit přes ddcutil nebo xrandr --backlight, nic z toho nefunguje (ignored).
    PZ Avatar of author Multidotyk 17/02/2025 19:01
    Zdravim, jak rozchodit vicebodovy dotyk? Funguje mi jen jeden bod. Dekuji.
    VD Avatar of author 25/09/2025 23:32
    V případě Raspberry tak v utilitě Screen Configuration vyvolat kontextové menu na konkrétním displeji, dále Touchscreen > Mode > Multitouch (změnit z Mouse Emulation).
