6 DoF YF-6125MG Servo Metal Robotic Arm

Product detailed description

This 6 Degrees of Freedom (6DoF) robotic arm kit contains everything you need to build a fully functional arm - including 6 powerful YF-6125MG servo motors. The anodised aluminium construction is strong, durable and ideal for beginners and advanced riders alike. The hand is suitable for connecting with Arduino, ESP32, STM32 and other microcontrollers.

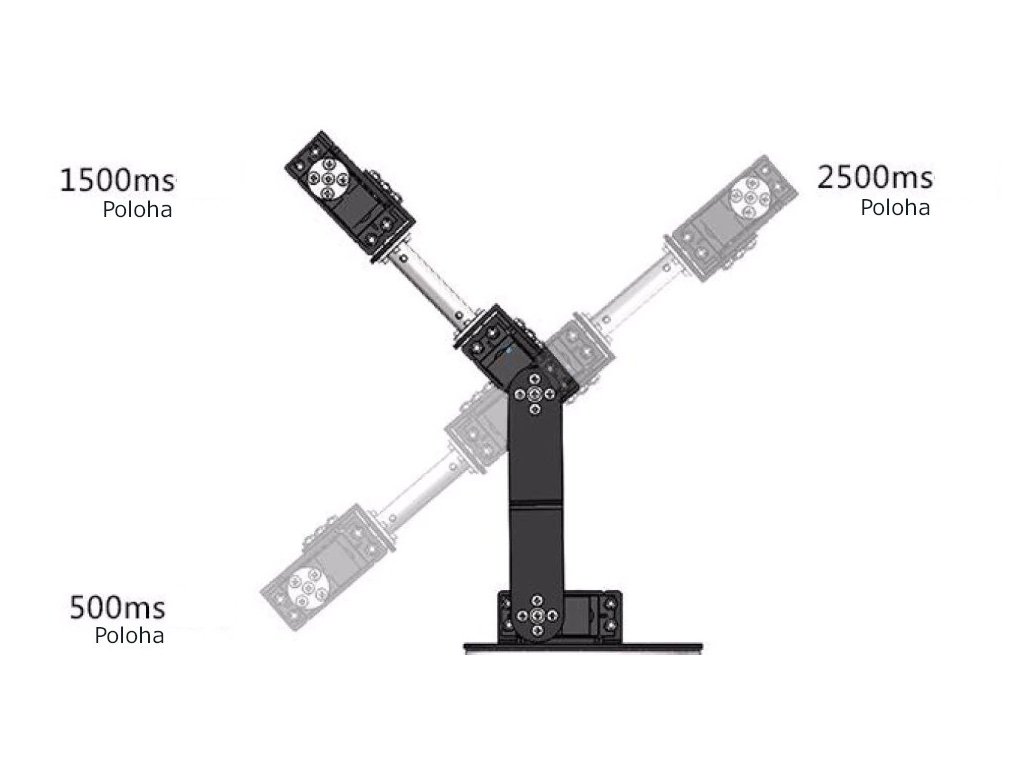

Before installation, you must determine the centre of the servo (P = 1500)

The use of screws should follow the following rules:

• M3*6 screws are mainly used to install the corner;
• M3*8 screw is mainly used to install the servo, bracket and wiring bracket;
• M3*10 bolts are mainly used for installing bearings

Specifications:

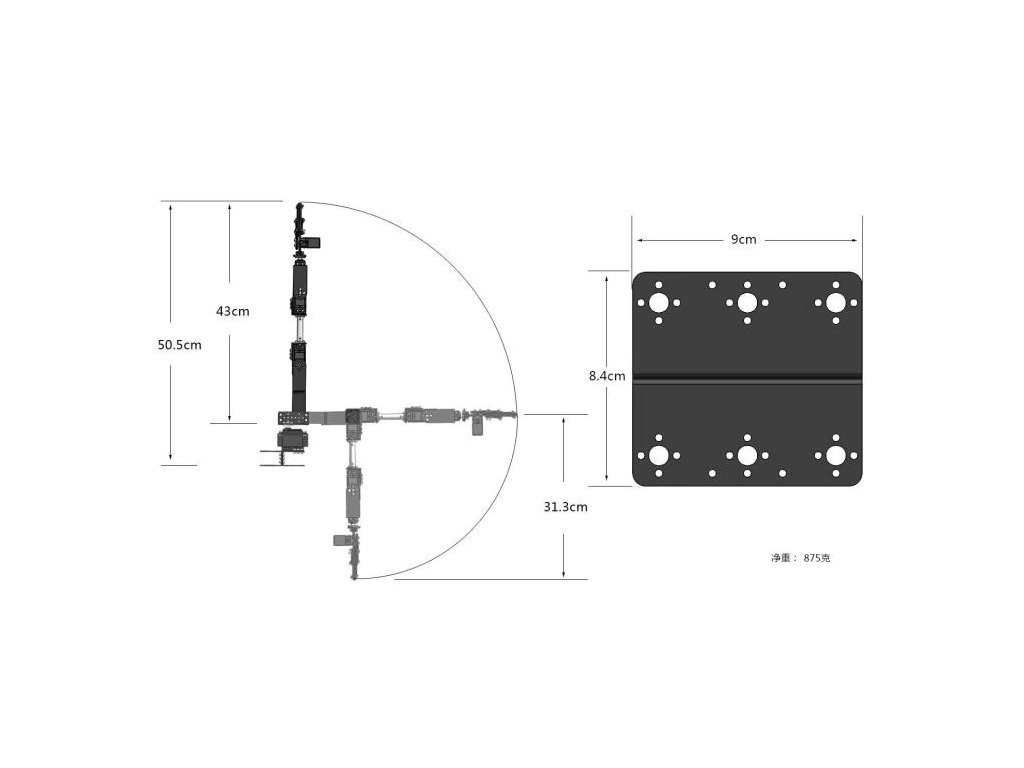

• Dimensions: 210x174mm
• Weight: around 930g
• Material: aluminum
• YF-6125MG servo
  • Weight: 60g
  • Dimensions: 40x20x40.5mm
  • Speed: 0.18s/60°@4.8V 0.14s/60°@7.2V
  • Torque: 23.5kg/cm @4.8V 26.8kg/cm @7.2V
  • Power: 4.8-7.2Volts
  • Current: 150mA

Included in delivery:

• 1pc 6 DoF Metal robotic arm YF-6125MG servo

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
