3.5mm jack to terminal block adapter

Product detailed description

The 3.5 mm jack to screw terminal adapter allows for the quick connection of audio wires without the need for soldering. Simply insert the stripped ends of the wires into the terminal block and tighten the screw. It is suitable for connecting headphones, powered speakers, line inputs and outputs, or audio modules to Arduino and ESP32, e.g. MP3 players and amplifiers. Available in two versions – as a socket (female) and as a plug (male).

Specifications:

• Connector: 3.5 mm jack, stereo (TRS, 3-pole)
• Terminal block: 3-pin, screw terminal, 5.0 mm pitch

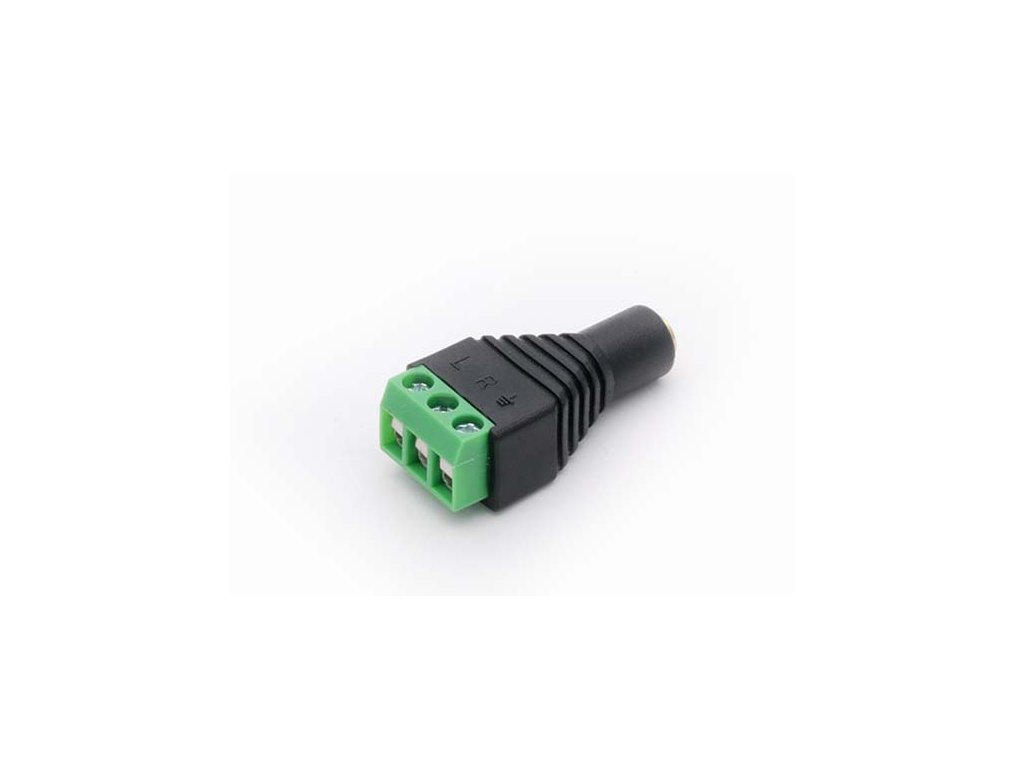

• Terminal block wiring:
  • L: left channel (tip)
  • R: right channel (ring)
  • GND: ground (connector sleeve)
• Variants:

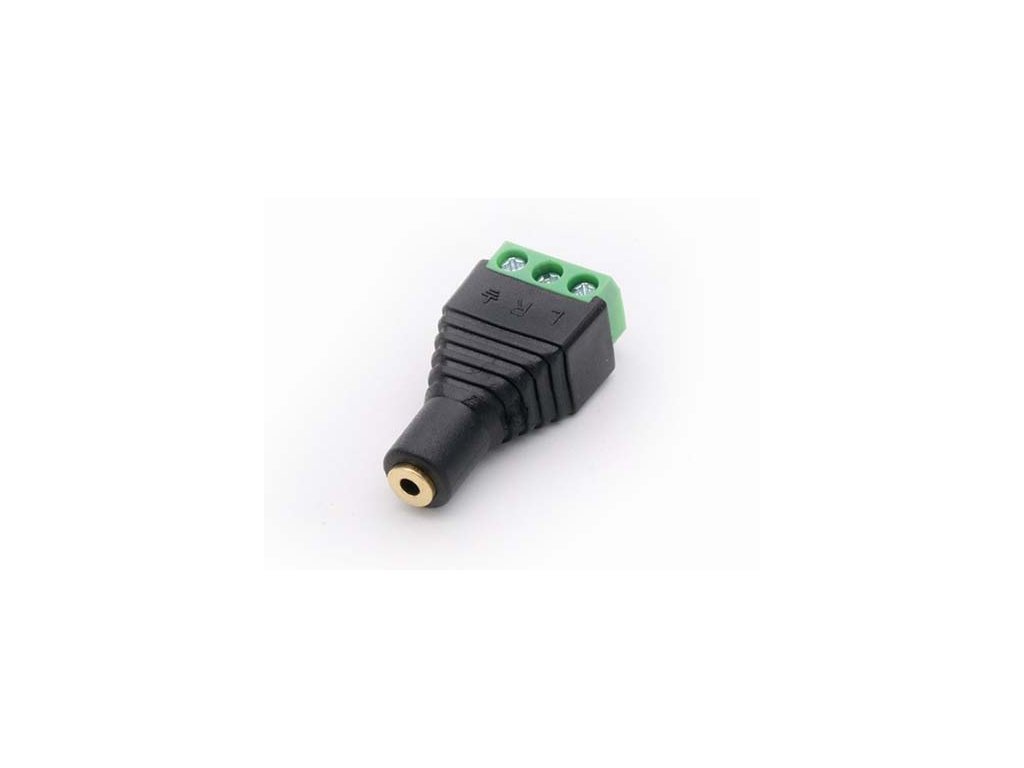

  • Female: 3.5 mm jack socket – for connecting headphones or an audio cable plug
  • Male: 3.5 mm jack plug – inserts into the audio output or input of a device
• Application: analogue audio signal, not intended for power supply

Package contents:

• 1× 3.5 mm jack to terminal block adapter (depending on the selected variant)

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustrative purposes only and may sometimes differ from the actual appearance of the item. However, this does not change their basic properties.
