    Home / Development Boards / Arduino / Arduino Mega2560 rev3, original

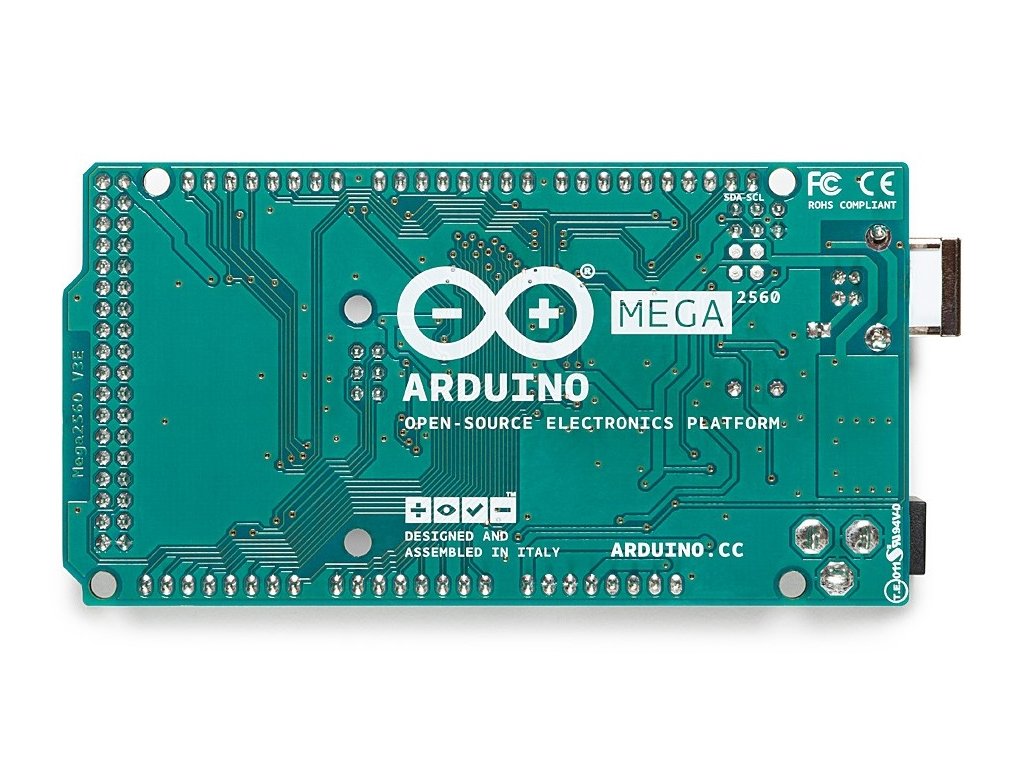

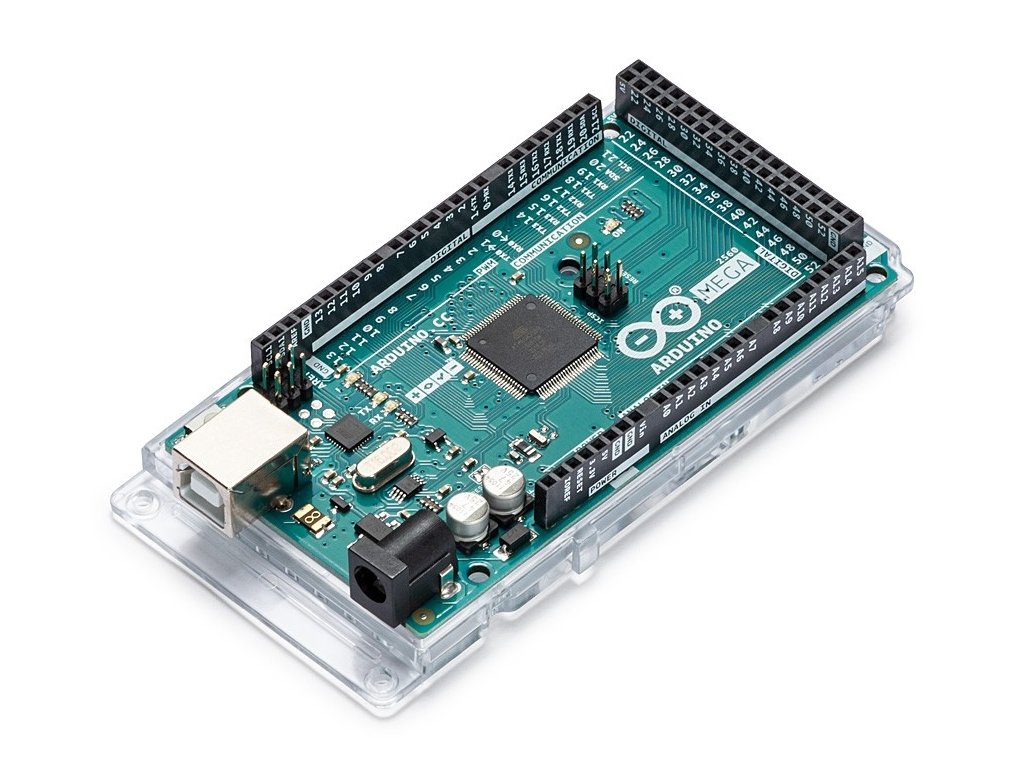

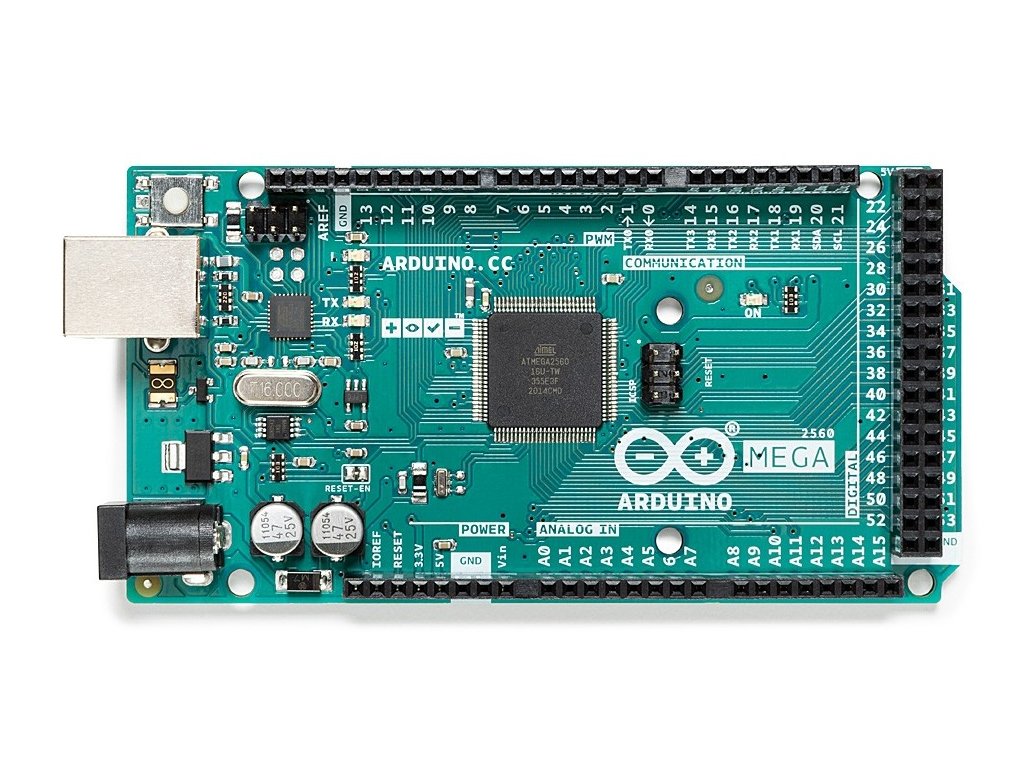

    Arduino Mega2560 rev3, original

    Code: LA100005
    1 rating
    5904 3 arduino mega2560 rev3 original
    €46,28 €38,25 excl. VAT
    In stock (13 pcs)
    Delivery to:
    09/12/2025

    Powerful, affordable and with a large number of pins - that's exactly what the Arduino Mega is. It is suitable for anyone working on complex projects and wanting to control them using a single board.

    Detailed information

    Free Shipping
    Free Shipping
    From 100 EUR
    30 Days to Return
    30 Days to Return
    For Registered
    30 Days to Return
    30 Days to Return
    For Registered Customers
    Free Shipping
    Free Shipping
    For orders from 100 EUR
    It Doesn't End With Shipping
    Customer Care
    We handle complaints within 5 days
    Quick dispatch
    Quick dispatch
    Within 24 hours

    Related products

    Transparentní krabička pro Arduino mega

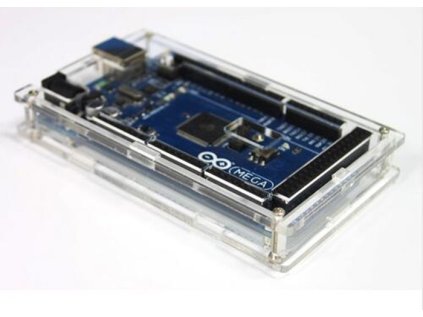

    Transparent box for Arduino mega
    Naskladníme cca 24.11.
    €1,78 excl. VAT
    €2,15

    Transparent polyacrylate box for Arduino MEGA boards with cutouts for connecting contacts.

    LA200001
    LaskaKit arduino mega prototype shield prototypova dps 1
    Arduino Mega prototype Shield, prototype PCB
    In stock (3 pcs)
    €3,69 excl. VAT
    €4,47

    A ready-made printed circuit board that allows you to easily make your own shield for Arduino Mega boards.

    LA150165
    875 1 3 5 320x480 tft displej ili9486 arduino mega shield
    3.5" 320x480 TFT display, ILI9486, Arduino Mega shield
    In stock (14 pcs)
    €16,69 excl. VAT
    €20,20

    3.5" LCD TFT display with 320x480 color pixels communicating using a parallel interface in the form of a shield for the Arduino Mega board.

    LA141015
    Show all related products

    Product detailed description

    Powerful, affordable and with a large number of pins - that's exactly what the Arduino Mega is. It will find its place in projects that require a larger memory size and a higher number of I/O pins. You're not gonna be short on those. The board offers an incredible 54 digital I/O pins (14 with PWM technology), 16 analogue I/O pins, a USB connector and a barrel jack for powering from a battery, for example. The board is therefore suitable for anyone working on complex projects and wanting to control them with a single board.

    Pinout-Mega2560rev3_latest

    Specifications:

    Microcontroller ATmega2560
    Crystal 16MHz
    Flash 256kB
    GASH 8kB
    EEPROM 4kB
    USB - Serial Converter ATmega16U2
    Digital I/O 54 (14 PWM thereof)
    Analog Inputs 16
    DC Current per pin 40mA
    Input voltage 6-12V recommended
    5V max Current 800mA
    3.3V max Current 180mA
    Weight 45g

    Delivery components:

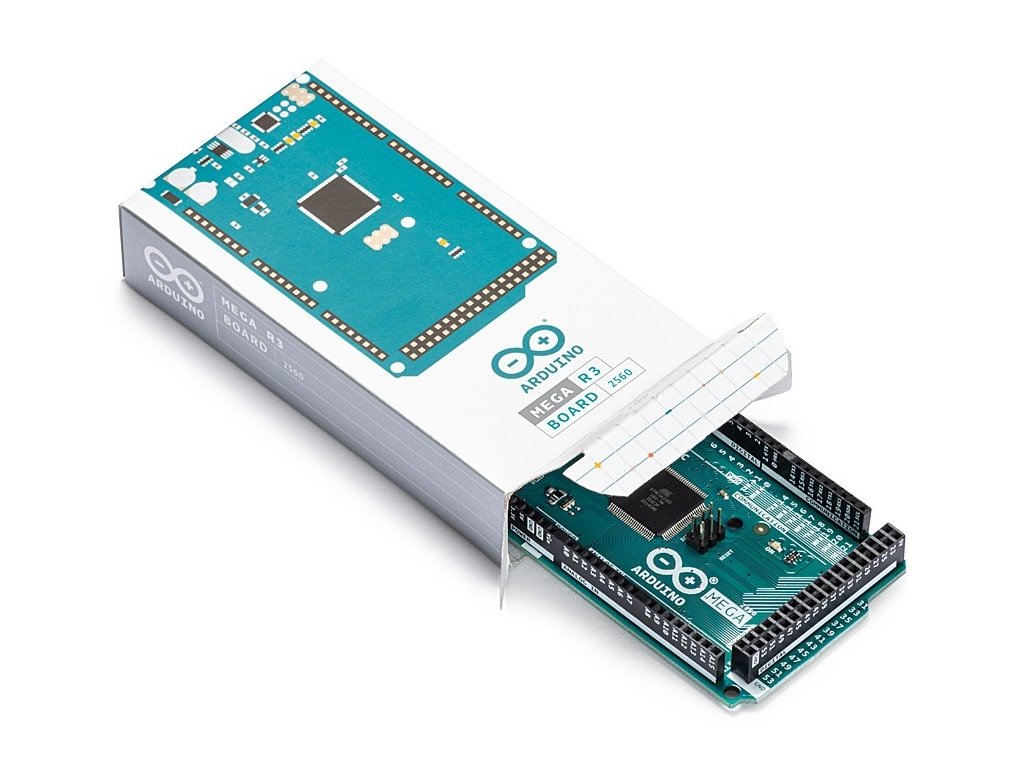

    • 1x Arduino Mega2560 rev3, original

    Note:

    • This product is not a standalone functional unit and may require professional installation.
    • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

    Additional parameters

    Category: Arduino development boards
    Warranty: 2 years
    Weight: 0.064 kg
    EAN: 7630049200067
    Type: AVR
    Logical levels: 5V
    I/O pins: 54
    Frequency: 16MHz
    Flash memory: 256kB
    SRAM memory: 8kB
    EEPROM memory: 4kB
    Connector with battery charger: No
    Microcontroller: ATmega2560
    Converter: ATmega16U2
    Bluetooth: No
