Arduino Pro Micro ATmega32U4 3.3V 8MHz, Clone

Product detailed description

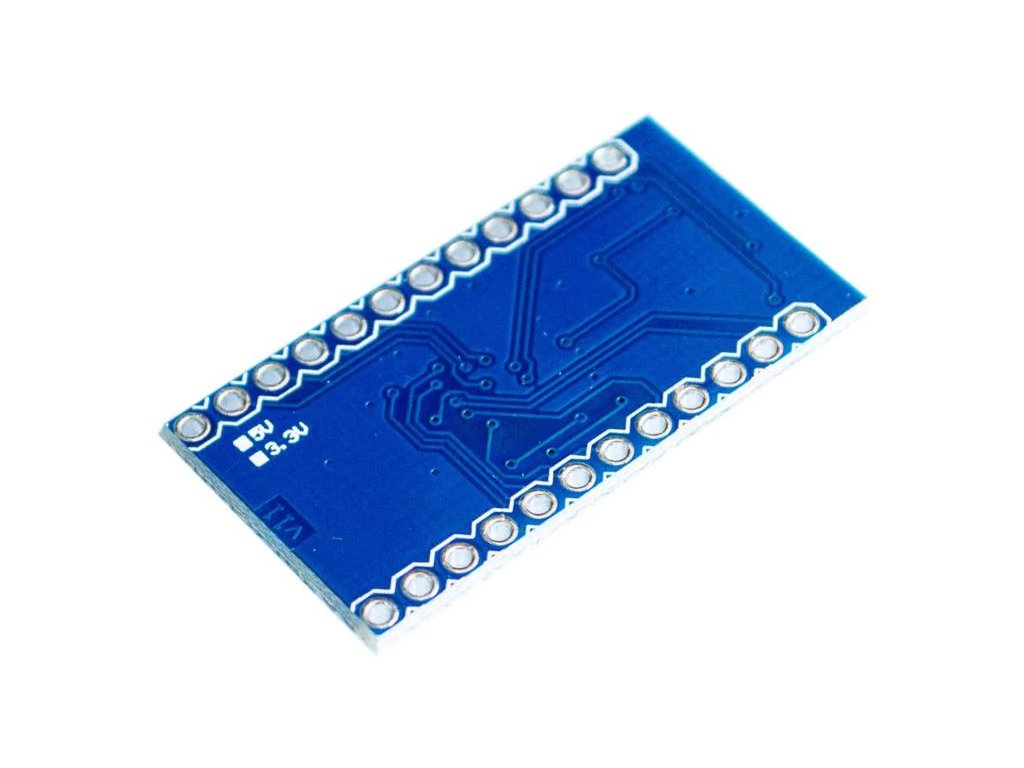

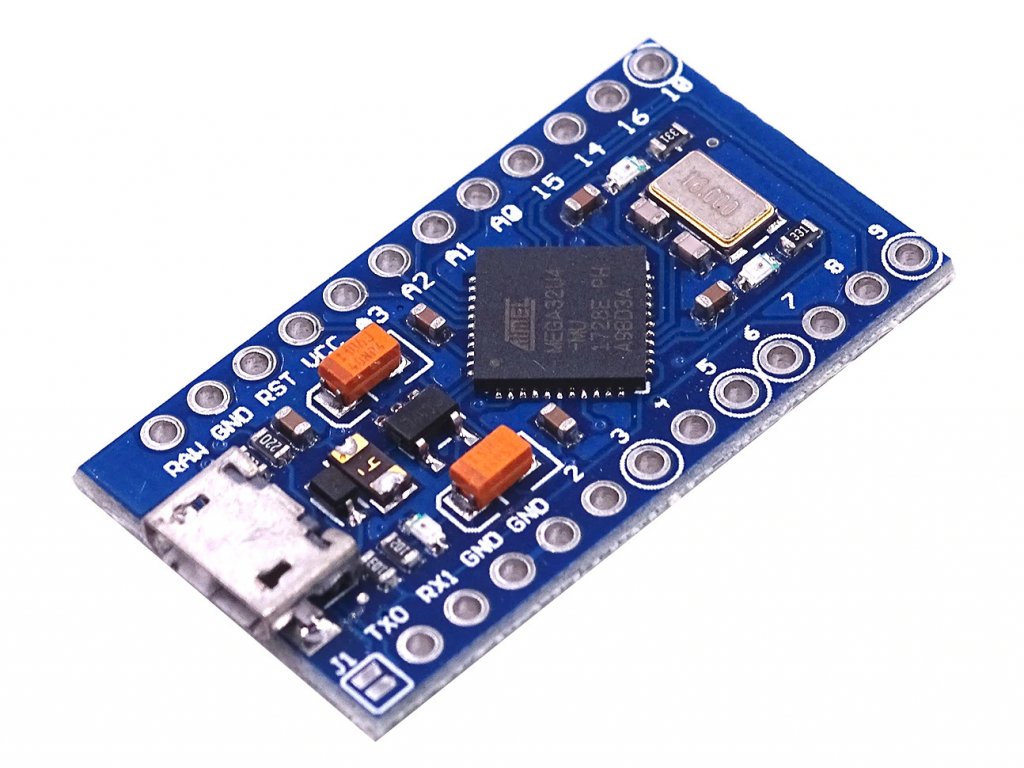

Arduino Pro Micro is an electronic board equipped with an ATmega32U4 microcontroller. The board provides amazing measurement, monitoring and device control capabilities using a simple C++ based programming environment. The software package includes a lot of examples and libraries for controlling other extension modules (shields).

The Pro Micro differs from all previous Arduino boards in that the ATmega32U4 microcontroller has a built-in USB interface, so there is no need to use additional special circuits to communicate with a computer. For the Micro, it can appear to the connected computer as either a mouse, keyboard, or as a virtual (CDC) serial/COM port.

When powering from USB, the ATmega32U4 is at 4.5V, bridging the J1 jumper will turn off the volatage stabilizer.

This board uses 3.3V logic and its processor has a frequency of 8MHz, however, we also offer a faster variant that utilizes 5V logic.

In the arduino IDE, you need to select the LilyPad Arduino USB board. Other settings result in the loss of the original bootloader and the board cannot be reloaded without repair!

Specifications:

Delivery components:

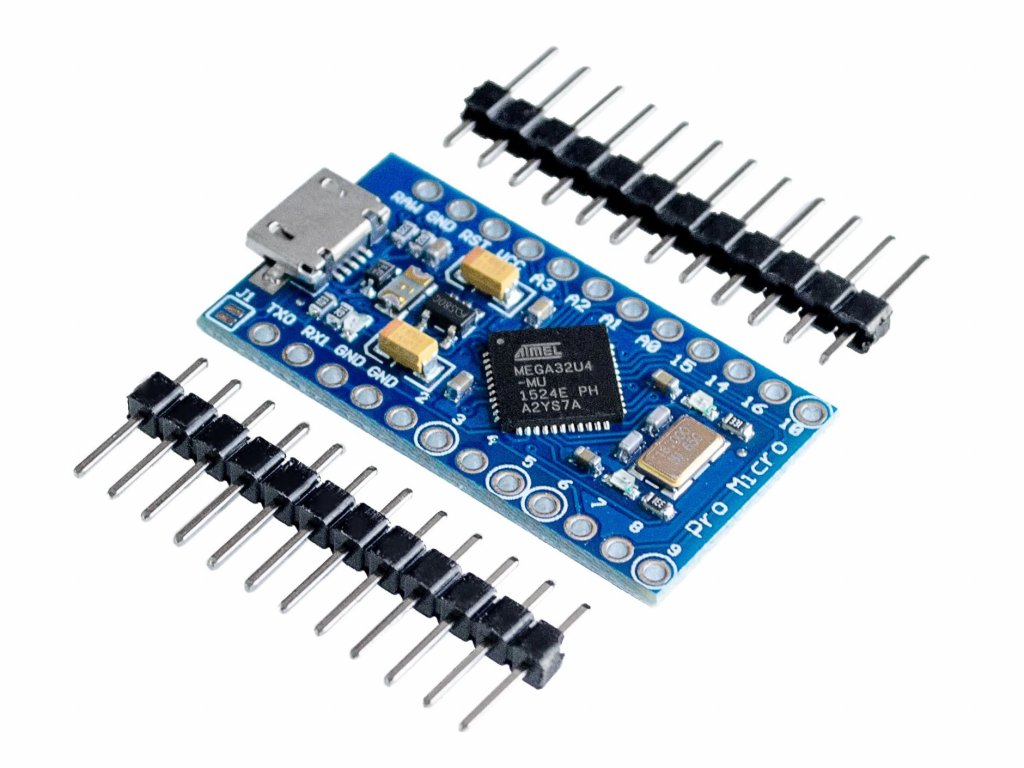

• 1x Arduino Pro Micro ATmega32U4 3.3V 8MHz, Clone
• 2x Pin strip

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
