Arduino UNO Q, original

Product detailed description

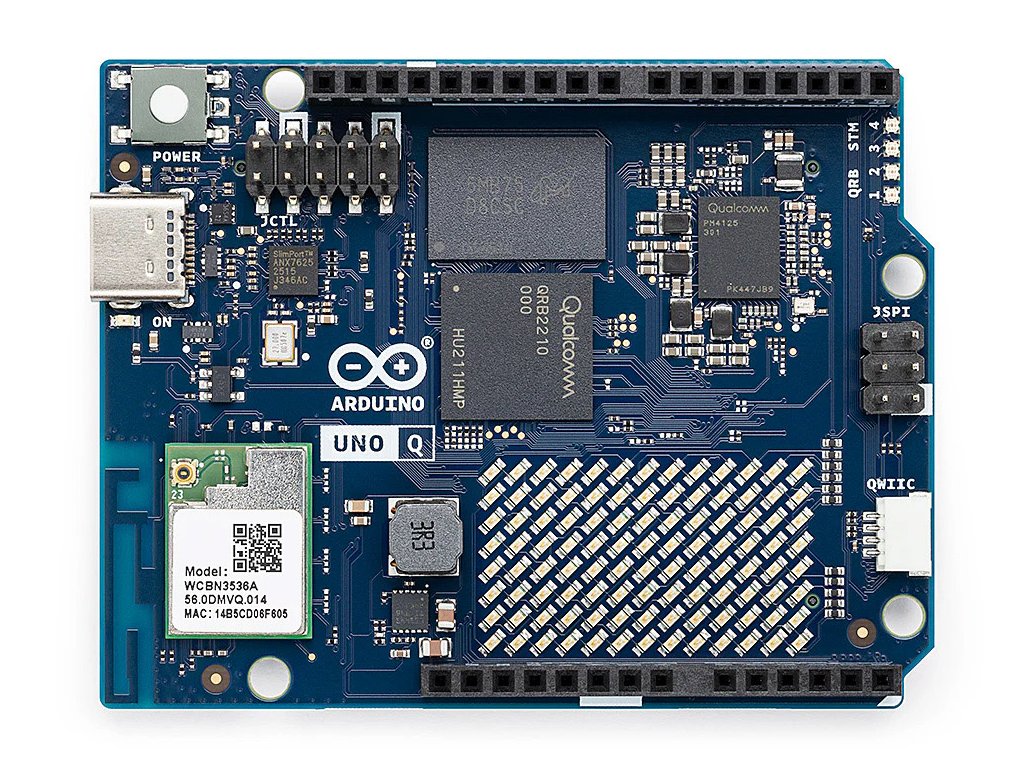

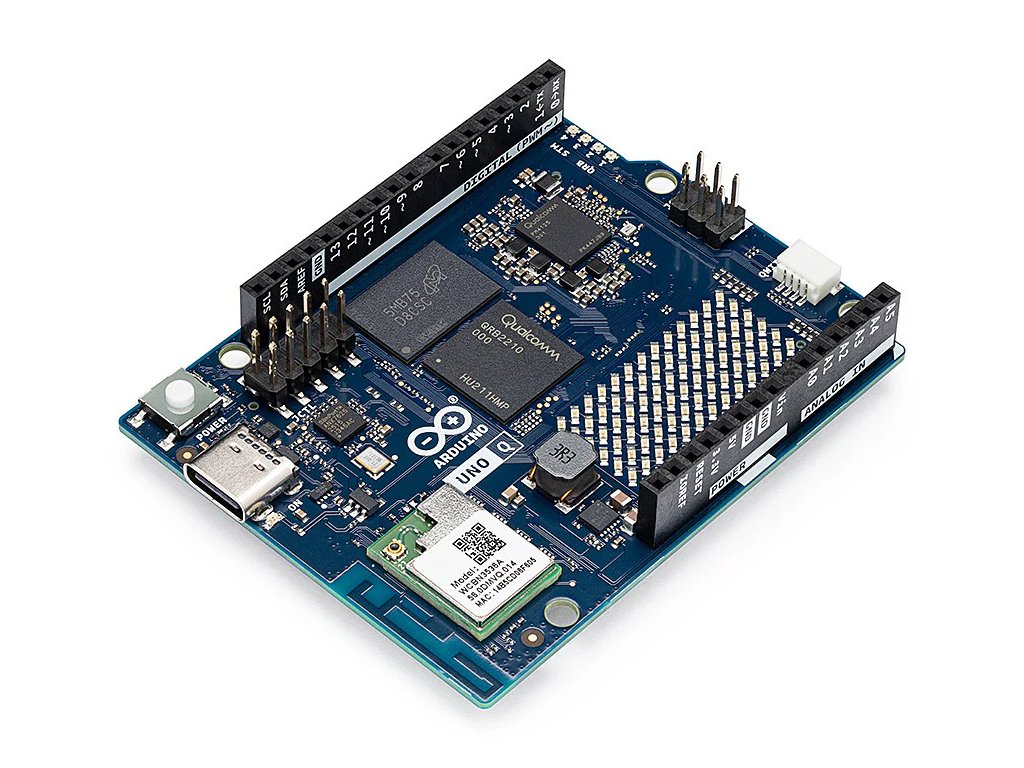

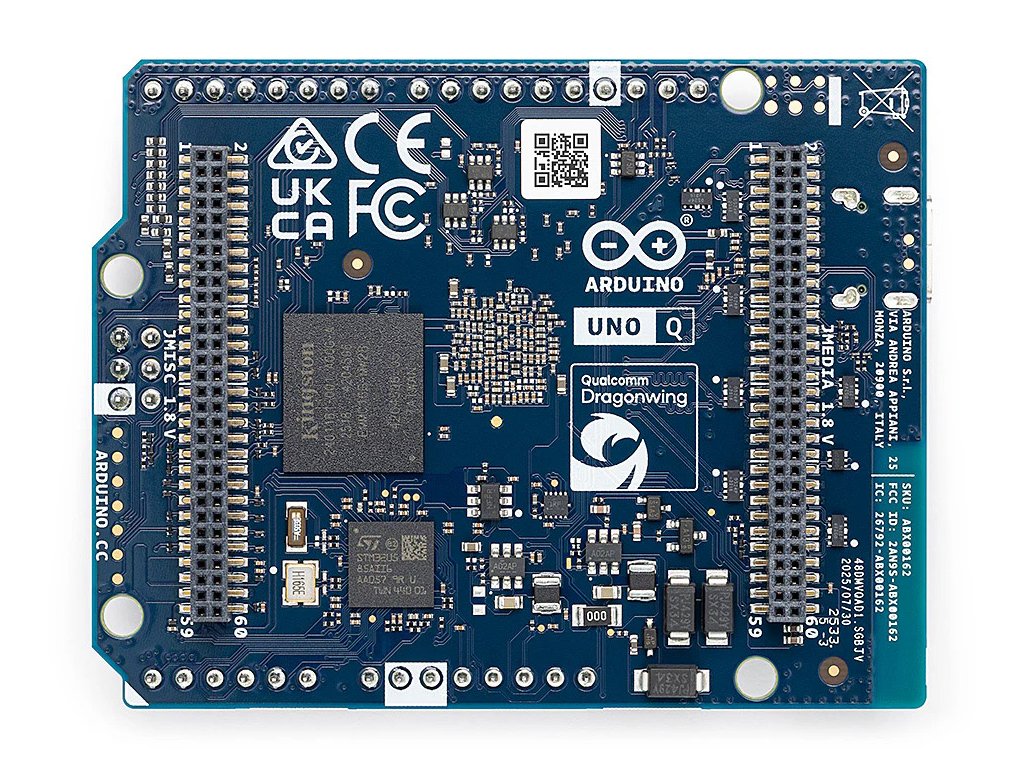

Arduino UNO Q is an advanced next-generation mini-computer that combines the power of a microprocessor with the Linux Debian operating system and the real-time precision of a microcontroller. This makes it ideal for developing advanced applications in robotics, the Internet of Things (IoT), and artificial intelligence. The platform combines the Qualcomm Dragonwing QRB2210 processor (quad-core ARM Cortex-A53 2.0 GHz) with the STM32U585 microcontroller (ARM Cortex-M33), providing high computing power and precise control. The Arduino UNO Q offers 2 GB of LPDDR4 RAM, 16 GB of integrated eMMC storage, and support for Wi-Fi 5 (2.4/5 GHz) and Bluetooth 5.1 wireless connectivity. It includes a USB-C connector for power, connecting peripherals, or a display, as well as a Qwiic port for easy system expansion without soldering. The board supports both classic UNO shields and modern Modulino modules, making it highly versatile and compatible with a wide range of projects. Programming is simple thanks to the Arduino IDE and the Arduino App Lab environment, which combines Arduino code, Python, and AI models into a single interface for rapid application development.

Specifications:

• Microprocessor (MPU): Qualcomm Dragonwing QRB2210, quad-core ARM Cortex-A53 2.0 GHz, integrated Adreno GPU, 2x ISP (13 MP + 13 MP or 25 MP at 30 fps)
• Microcontroller (MCU): STM32U585 with ARM Cortex-M33 core up to 160 MHz, 2 MB flash, 786 kB RAM
• RAM: 2 GB LPDDR4
• Storage: 16 GB eMMC (no SD card required)
• Connectivity: Wi-Fi 5 (2.4/5 GHz), Bluetooth 5.1, integrated antennas
• Power: via USB-C 5 V (max. 3 A) or VIN 7–24 V
• USB port: 1× USB-C with host/device role switching, power management, and video output
• Interfaces: I2C/I3C, SPI, PWM, CAN, UART, PSSI, GPIO, JTAG, ADC
• Video: output via USB-C or MIPI DSI pins on JMEDIA connector
• Audio: microphone input, headphone and line output (JMISC connector)
• LED indication: 8×13 blue LED matrix, 4× RGB user LEDs
• Qwiic connector: 3.3 V I2C interface for Modulino and other solderless expansions
• Operating System: Linux Debian OS with Docker and Docker Compose support
• Real-time: Arduino Core running on Zephyr OS
• Supported systems: Windows 10+, macOS 11+, Ubuntu 22.04+ and Debian Trixie (64bit)
• Dimensions: 68.85 × 53.34 mm (UNO format)

Arduino App Lab:

• New unified development environment for Linux and real-time OS.
• Allows combining Arduino Sketches, Python scripts, and AI models.
• Pre-installed examples, applications, and modules (Apps and Bricks) for a quick start.
• Support for pre-loaded AI models – image recognition, audio, and anomaly detection.

Package contents:

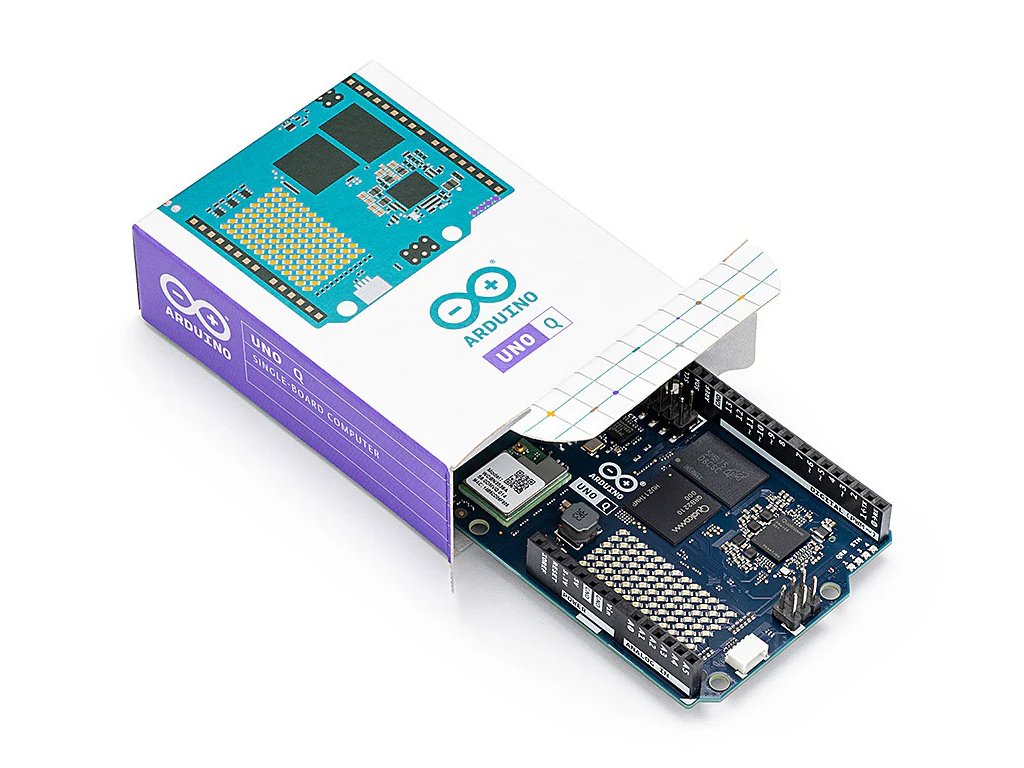

• 1x Arduino UNO Q

Note:

• For full functionality, a quality USB-C power supply 5 V / 3 A or an external power supply 7–24 V is recommended.
• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
