    Arduino Uno+WiFi ATmega328P+ESP8266 32Mb

    Code: LA100026
    2 ratings
    5678 3 arduino uno wifi atmega328p esp8266 32mb
    €9,85 €8,14 excl. VAT
    In stock (23 pcs)
    Delivery to:
    09/12/2025

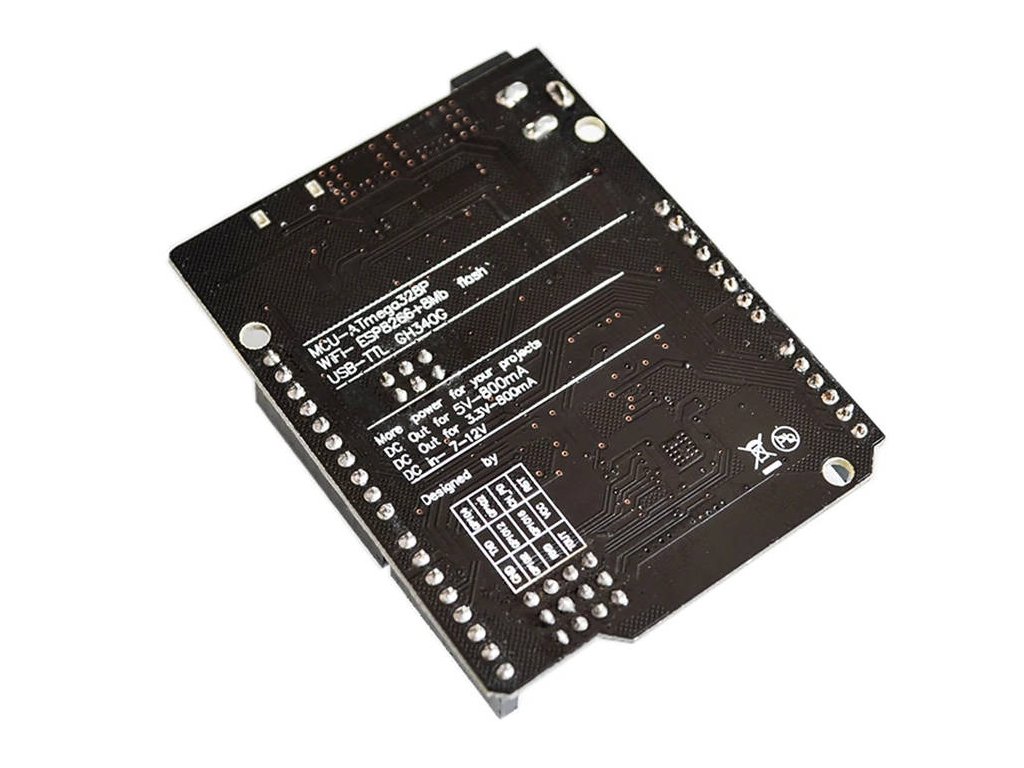

    Modified version of the classic ARDUINO UNO R3 board with full integration of the ATmega328 microcontroller and ESP8266 IO with 32MB flash memory and CH340G USB-TTL converter. All modules can work together or independently.

    Detailed information

    Free Shipping
    Free Shipping
    From 100 EUR
    30 Days to Return
    30 Days to Return
    For Registered
    30 Days to Return
    30 Days to Return
    For Registered Customers
    Free Shipping
    Free Shipping
    For orders from 100 EUR
    It Doesn't End With Shipping
    Customer Care
    We handle complaints within 5 days
    Quick dispatch
    Quick dispatch
    Within 24 hours

    Related products

    development pcb board type 1 1499955880
    Large non-soldering contact field with 2860 pin power terminals
    In stock (10 pcs)
    €10,20 excl. VAT
    €12,34

    Large non-soldering contact array with power terminals for prototyping and testing your projects.

    LA150074
    9V
    Connection cable for 9V battery
    In stock (196 pcs)
    €0,17 excl. VAT
    €0,21

    Connection cable for 9V battery

    LA150038
    Napájecí adaptér síťový 1000mA 5,5/2,1 mm 9V
    Mains power adapter 9V/1A 5.5/2.1mm
    In stock (179 pcs)
    €3,36 excl. VAT
    €4,06

    Power supply for plugging into a socket with power connector, 9V and 1A output. Fits Arduino UNO boards

    LA121001A
    Show all related products

    Product detailed description

    Modified version of the classic Arduino Uno rev. 3 board with full integration of the ATmega328 microcontroller and IO ESP8266 with 32MB flash memory and CH340G USB-TTL converter. All modules can work together or independently.

    This combination of two legendary boards is an ideal board for beginners as well as advanced users. Thanks to the USB port and integrated converter, programming both microcontrollers is a breeze. The board also offers a coaxial connector that can be used to power the board from a battery or AC adapter. On the software side, the Arduino is programmed via the integrated Arduino IDE development environment. The ESP8266 microcontroller gives the devkit the ability to communicate via WiFi.

    Specifications:

    Microcontroller ATmega328P / ESP8266
    MCU frequency 16MHz / 80/160Mhz
    Flash 32kB / 1MB
    GASH 2kB / 160kB
    EEPROM 1kB
    USB - Serial Converter CH340G
    Digital I/O 14 (of which 6 are PWM)/ 5
    Analog Inputs 8
    DC Current per pin Max 40mA
    Input voltage 6-12V recommended
    5V max Current 800mA
    3.3V max Current 800mA
    Weight 22g

    There is a switch with 8 positions on the board

    propojky

    Delivery components:

    • 1x Arduino Uno+WiFi ATmega328P+ESP8266 32Mb

    Note:

    • This product is not a standalone functional unit and may require professional installation.
    • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

    Additional parameters

    Category: Arduino development boards
    Warranty: 2 years
    Weight: 0.022 kg
    Type: AVR
    Logical levels: 3.3V, 5V
    I/O pins: 26
    Frequency: 16MHz, 26MHz
    Flash memory: 36MB
    SRAM memory: 160kB
    EEPROM memory: 1kB
    Connector with battery charger: No
    Microcontroller: ATmega328, ESP8266EX
    Converter: CH340
    Bluetooth: No
    WiFi: Yes
    foto 1
    Arduino UNO R3, ATmega328P, Clone
    In stock (96 pcs)
    €6,09 excl. VAT
    €7,37

    Clone of the Arduino UNO board, the most popular Arduino board on the market. It is an ideal board for beginners as well as advanced users, offering both a great price and...

    LA100002
    m380
    LaskaKit UNO R3, ATmega328P
    In stock (67 pcs)
    €9,51 excl. VAT
    €11,51

    A clone of the most legendary Arduino board on the market. Thanks to its popularity, versatility, and community, the Arduino Uno rev3 is an ideal board for both beginners and...

    LA100000
    5901 3 arduino uno rev3 original
    Arduino Uno rev3, original
    In stock (21 pcs)
    €20,46 excl. VAT
    €24,76

    The most legendary Arduino board on the market. Thanks to its popularity, versatility, and community, the Arduino Uno rev3 is an ideal board for both beginners and advanced...

    LA100001
    Show all alternative products
    5,0 2 ratings
    5
    2x
    4
    0x
    3
    0x
    2
    0x
    1
    0x
    Do not fill out this field:

    List of ratings

    5
    DJ Avatar of author | 30/11/2025
    Naprostá spokojenost, zatím funguje podle očekávání. Je nutné si dávat pozor na špatné přepnutí desky a přepnutí výběru v Arduino IDE
    5
    JL Avatar of author | 04/01/2022
    Oba čipy pracuji spravne. Pozor na krkolomne nastavivani prepinacu na desce dle toho zda chcete nahrat data do At nebo esp cipu, nebo zda maji oba bezet spolecne bez moznosti prehrani sketch. Na prvni hrani je lepsi wemos d1 mini. Nemusi se nic prepinat piny a i nahravani je rychlejsi. Ale pozor vetsinou se prodava s dirkami a ruznymi piny/konektory. Dobra je moznost volby, ale znamena to dopajeni. U wifi cipu zvazte vzdalenost od wifi routru a moznost pripojeni externi anteny s vetsim ziskem signalu. Pro ULV, provoz na baterky např. Pro pokojove stanice se zaznamem kvality ovzdusi se hodi spise desky s esp32. Odealne ty s optimalizaci spotreby energie, kde se lze dostat na rozni provoz na baterii.
    Do not fill out this field:

    List of discussions

    Avatar of author Sdílení portů 25/08/2025 10:15
    Jakým způsobem oba čipy (AT/ESP) sdílejí I/O porty v jednotlivých režimech provozu?
    Avatar of author Sdílení portů 25/08/2025 11:24
    Pak má tedy ESP omezený počet I/O pinů. Normálně 22, zde jen 12.
    KL Avatar of author Sdílení portů 25/08/2025 10:38
    Zdravím, . Každý čip má své vlastní piny, nic se nesdílí .
    JK Avatar of author Dotaz 29/06/2025 23:35
    Dobrý den, jakým konektorem se připojuje deska k počítači ?
    VH Avatar of author Dotaz 30/06/2025 07:18
    Dobrý den, deska se připojuje přes mikro USB.
    TE Avatar of author Jaký anténní konektor na ESP části 20/06/2024 08:55
    Dobrý den, ta wifina úplně citlivá není. Jaký je tam konektor pro připojení externí antény? Díky za váš čas.
    MF Avatar of author Jaký anténní konektor na ESP části 20/06/2024 09:50
    Dobrý den, konektor je U.FL/IPEX1
    M Avatar of author Rozsah napětí na pinech 09/05/2024 11:34
    Dobry den, jaky je rozsah napětí pro vstupní piny (Digital a analog)?
    KL Avatar of author Rozsah napětí na pinech 09/05/2024 11:37
    ESP má 3.3V logiku, Atmel 5V
    M Avatar of author 09/05/2024 11:35
    Resp. hledám desku s WiFi co bude mít rozsah do 5V, ne jen 3,3 :)
    PK Avatar of author nastaveni Arduino IDE 12/10/2022 11:13
    Dobrý den, dotaz začátečníka. Chci tuto desku používat jako normální Arduino Uno, jen s větší pamětí Flash - 4Mb. V popisu je popsáno jak nastavit přepínače. Jakou mám ale nastavit vývojovou desku v Arduinu IDE? Děkuji za odpověď. Pavel
    MF Avatar of author nastaveni Arduino IDE 13/10/2022 11:53
    Dobrý den, u této desky se jedná o chybu v popisu zboží, kterou jsme neprodleně opravili. Mikrokontroler ATMega328, který je na této desce osazený nedisponuje FLASH pamětí 4MB, ale pouze 32KB, stejně jako Arduino UNO.
