ATORCH DL24P Laboratory Electronic Load 200V, 25A, 180W

Product detailed description

The ATORCH DL24P is a modern active regulated electronic load module with a maximum power of 180 W, an input current of up to 25 A, and a voltage of up to 200 V. It offers digital regulation of electrical parameters, a multi-functional colour LCD display with backlight, and an integrated Bluetooth module for wireless control via the E-TEST app (iOS, Android, Windows). Thanks to robust cooling with a large heat sink and a 120mm fan, it is ideal for testing power supplies and batteries.

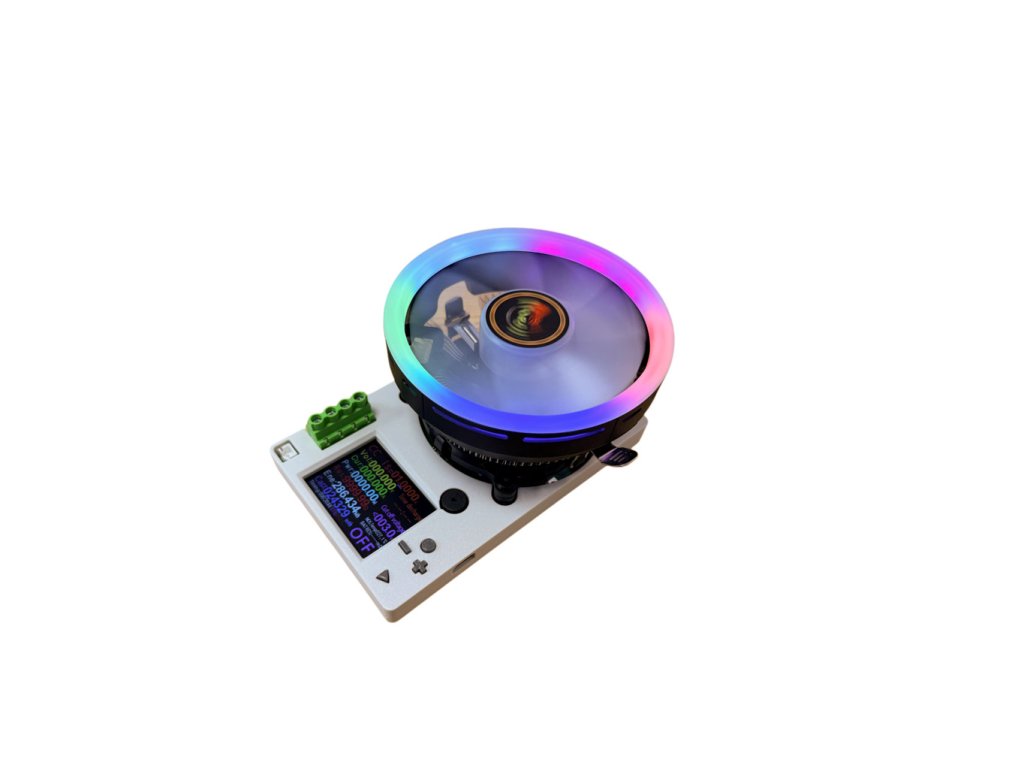

Measured and set parameters are clearly displayed on the 2.5" colour LCD display with a choice of English or Chinese language. Function control and value settings are performed using four function buttons located next to the display. For reliable operation even under prolonged load, the device is equipped with active cooling with a fan.

Included is a connector adapter with a 5mm DC connector, mini USB, micro USB and USB-C, plus a temperature sensor, USB cable and two wires with crocodile clips. Power is supplied by a 12V DC / 1A US adapter with an EU adapter.

For wireless control via mobile phone, you can use the "E-test" (Android) or "E_test" (iOS) application. A link to the Software for PC and Android is in the "Related Files" tab. We do not guarantee the functionality or language localisation of the applications.

Accessories:

• ATORCH 20A High Current Universal Battery Testing Adapter
• ATORCH DL24B-XSP16 PD3.1 universal adapter for charger testing

Specifications:

• Model: ATORCH DL24P-Plus (updated version)
• Current range: 0.2–25 A
• Voltage range: 2–200 V
• Maximum power: 180 W
• Operating modes:
  • CC – constant current
  • CV – constant voltage
  • CR – constant resistance
  • CP – constant power
• Parameter regulation: digital
• Display: colour LCD with backlight
• Displayed values: voltage [V], current [A], power [W], resistance [Ω], energy [Wh], capacity [mAh], time [hh:mm:ss], temperature [°C]
• Built-in Bluetooth module + E-TEST app (iOS, Android, Windows)
• Communication port: microUSB
• Input connectors:
  • High-current screw terminals
  • DC-Jack (12VDC power supply)
  • USB-C
  • MicroUSB
  • MiniUSB

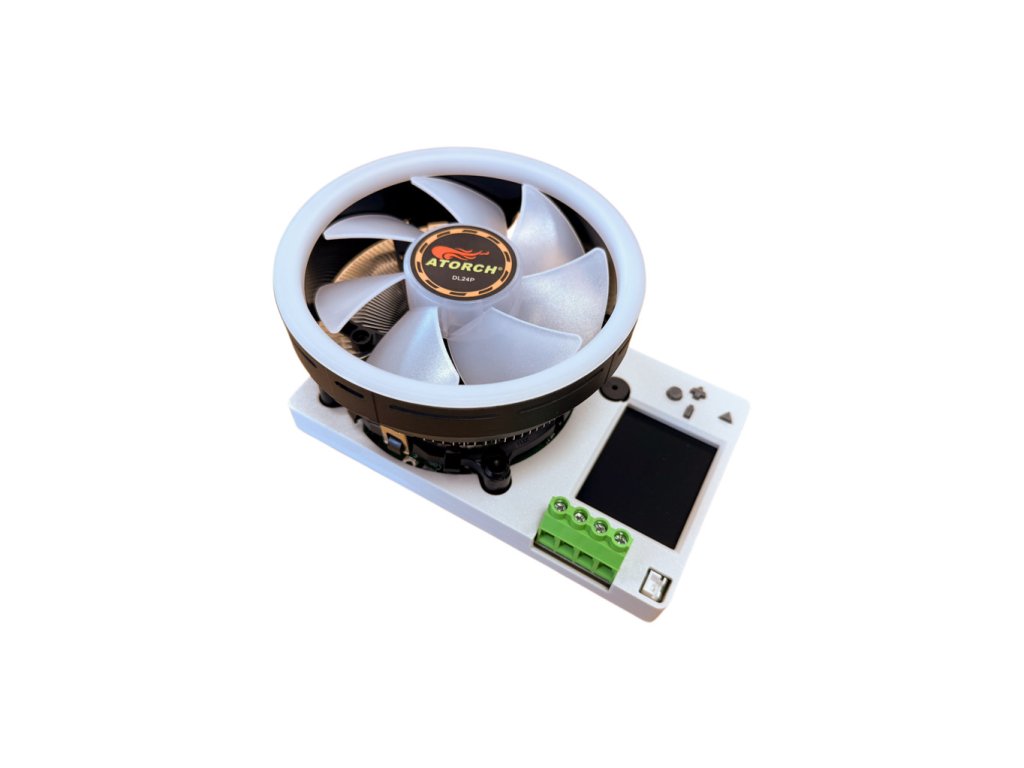

• Cooling: large heatsink + 120mm fan with colour backlight (automatic switching)
• Power supply: 12 VDC (DC-Jack)
• Sound buzzer for alerts
• Control: 4 buttons

Package contents:

• ATORCH DL24P-Plus 180W electronic load
• Power adapter 12 V DC US version with EU adapter
• USB – USB-C cable
• NTC temperature sensor on the cable
• 2× crocodile clip with short cable

Comment:

• This product is not a standalone functional unit and may require professional installation.
• Product photos are for illustration only and may differ slightly from the actual appearance, but do not change the basic properties.
