Wireless Induction Charging Module 5V/1A, Set

Product detailed description

This wireless power module allows power transfer without the use of a physical connector. It consists of a transmitter and a receiver that communicate with each other by magnetic induction. Ideal for DIY wireless chargers, powering closed boxes, or devices that are frequently plugged and unplugged.

Key features:

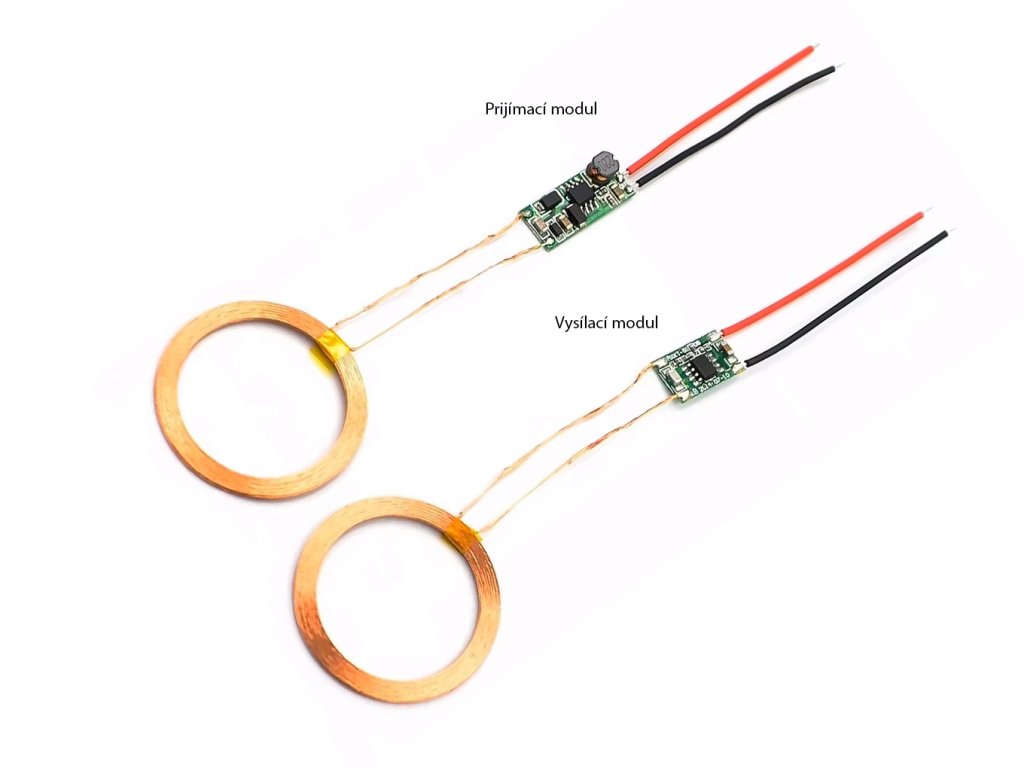

• Complete set - transmitter and receiver
• Output voltage of the receiver 5 V DC at consumption up to 1 A
• Safe and reliable energy transfer through air (inductive)
• Working distance usually 2-10 mm (depends on conditions)
• Compact dimensions - suitable for building into your own projects

Specifications:

• Transmitter power supply: 5-12 V DC
• Receiver output: 5 V DC / max. 1 A
• Transmission power: up to 5 W
• Coil dimensions: 37.5 x 1.6 mm
• Transmission distance: optimally 2-6 mm (max. approx. 10 mm)
• PCB dimensions:
  • Transmitter: 17 x 10.6 mm
  • Receiver: 24 x 10 mm

Package contents:

• 1× transmitting coil + Transmitter
• 1× receiving coil + Receiver

Comment:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
• The 5 V output is stabilized - suitable for powering 5 V devices (e.g. ESP, Li-ion charging with TP4056 module, etc.)
• At greater distances or through metal, efficiency may decrease
• Not compatible with Qi standard (mobile phones)
