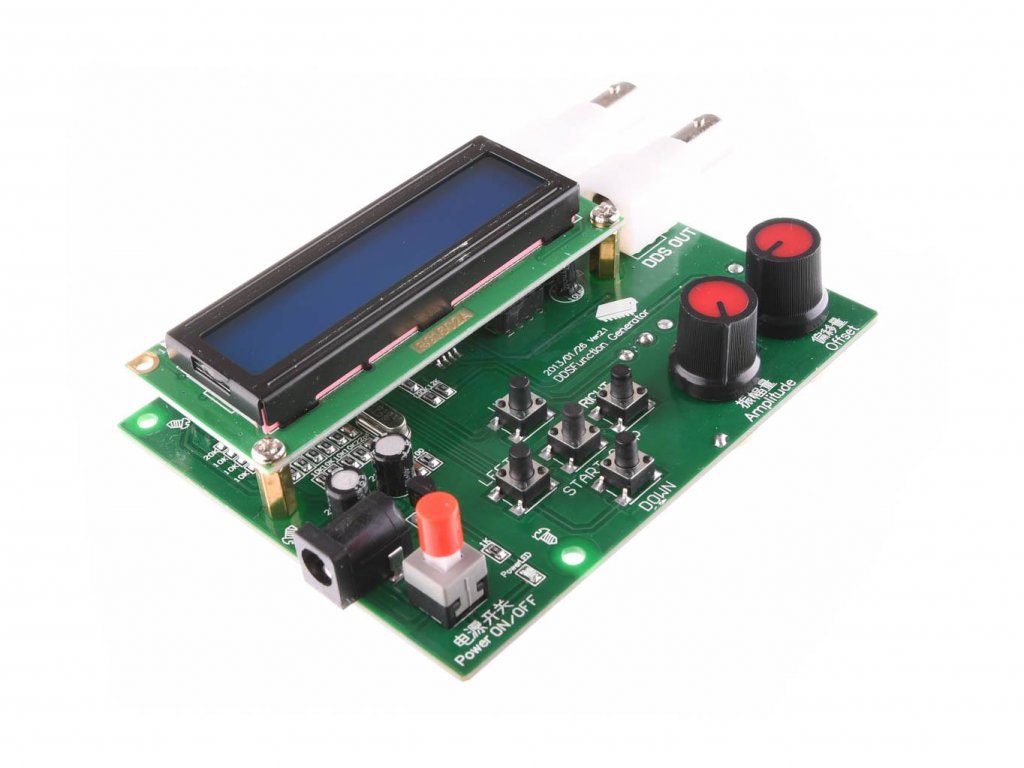

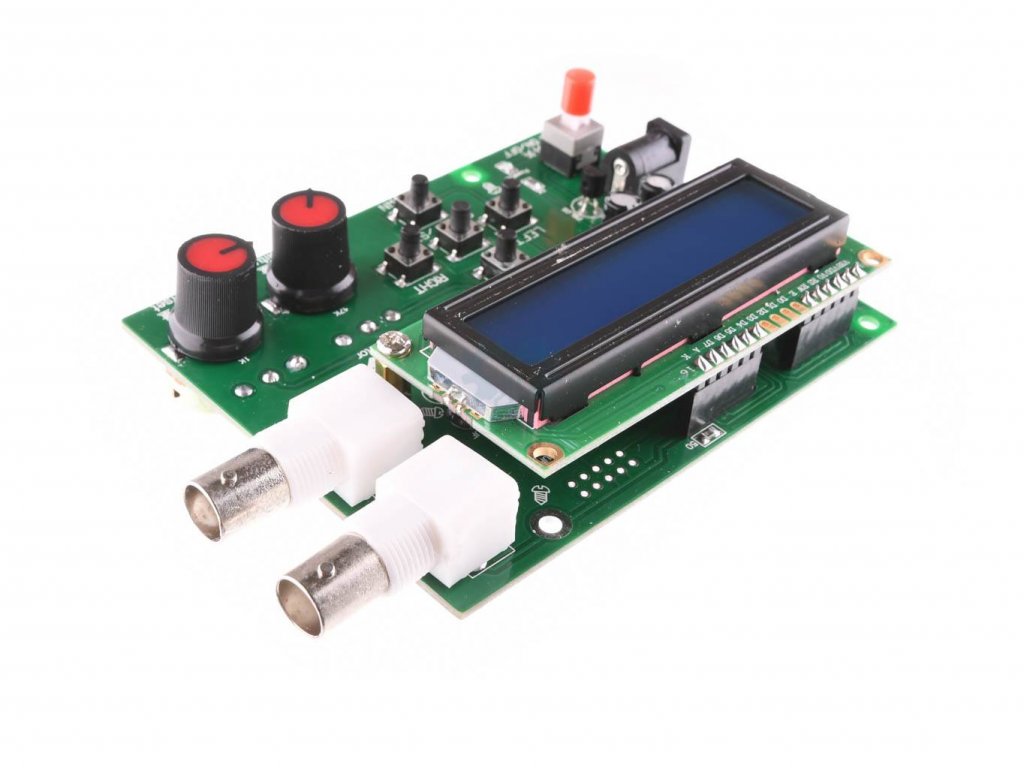

DDS Function Generator 1Hz - 65KHz, coupled version

Product detailed description

DDS Function Generator 1Hz - 65KHz, coupled version

Reliable, easy-to-use function generator for use in low-frequency technology with frequencies up to 65KHz. Testing of control circuits, checking of analogue and digital circuits, determination of frequency ranges of low frequency amplifiers, filters (switches) or loudspeakers. The DC link output allows for continuously adjustable offsets and thus a variety of applications in digital circuits.

Specifications::

• Power supply: 7-9V
• Frequency range: 1Hz - 65KHz
• HS output: up to 8MHz;
• Output impedance: 50?±10%
• Resolution : 1,10,100,1000,10000 Hz;
• Dimensions: 100x80mm
• Number of channels: 1 channel
• Offset: 0.5pp-5Vpp
• Output: 0.5Vpp-14Vpp

Included in delivery:

• 1pc DDS Function Generator 1Hz - 65KHz, coupled version

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
