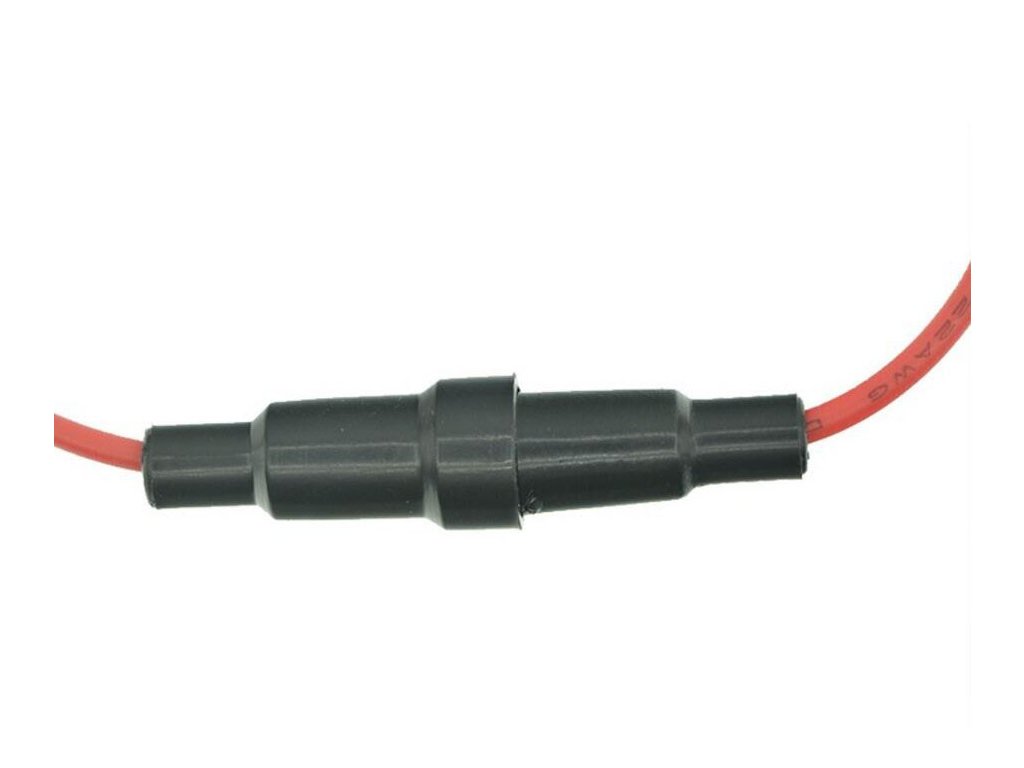

Holder for tube fuses 5x20mm with 22AWG conductors

Product detailed description

The 5×20 mm tubular fuse holder with 22AWG wires allows for easy and safe integration of standard glass or ceramic fuses into electrical circuits. The wire is terminated with a straight connector featuring a plastic cover that protects the fuse from touch and contaminants. The holder is suitable for applications in power supplies, the automotive industry, consumer electronics, and DIY projects.

Specifications:

• Compatible fuses: 5×20 mm (tubular)
• Wire gauge: 22 AWG (0.33 mm²)
• Maximum current: 10 A
• Maximum voltage: 250 V AC / 32 V DC
• Wire length: approx. 9cm
• Operating temperature: -40 °C to +85 °C
• Cover: plastic, with touch protection
• Mounting: inline (in series with the conductor)

Package contents:

• 1× 5×20 mm fuse holder with wires

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustrative purposes only and may sometimes differ from the actual appearance of the item. However, this does not change their basic characteristics.
