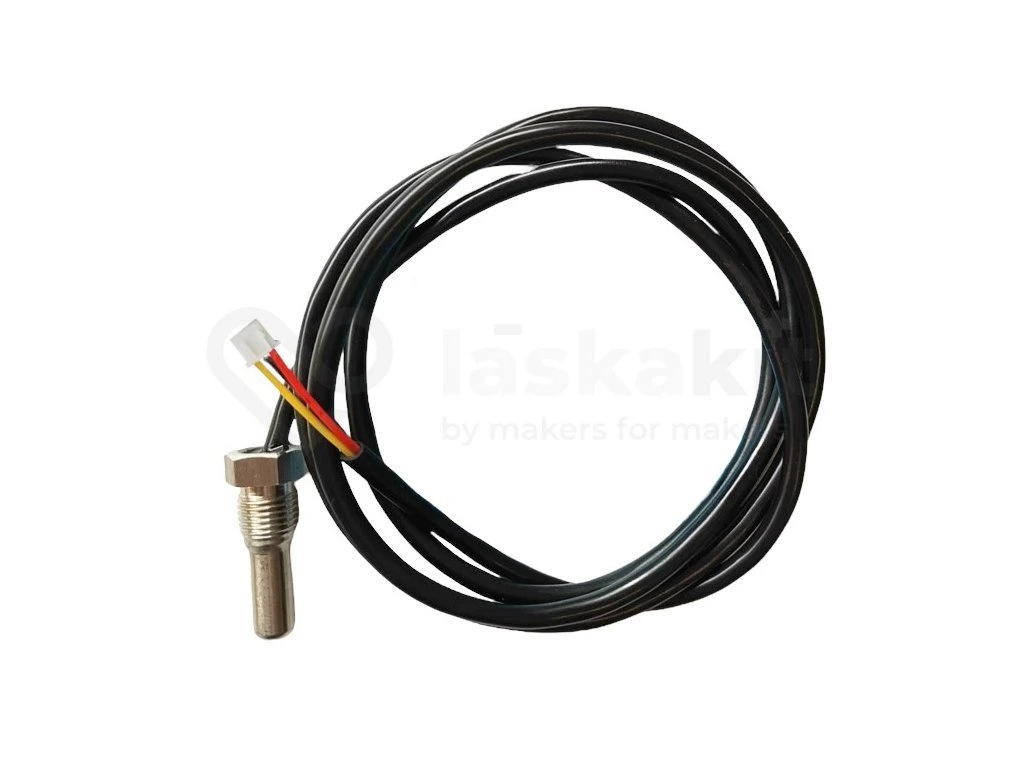

DS18B20 digital waterproof temperature sensor 1m

Product detailed description

Clone of the popular DS18B20 digital temperature sensor, works only in normal mode, parasitic mode is not supported. The sensor is calibrated to an accuracy of 0.2 degrees. This waterproof design allows you to plunge the sensor directly into the liquid and accurately detect the temperature. The digital sensor returns the temperature directly by value, so there is no need to recalculate it. Possibility to connect up to 50 sensors on one cable in a row. Each sensor has its specific unique address.

Specifications:

• Chip: DS18B20, clone.
• Design:

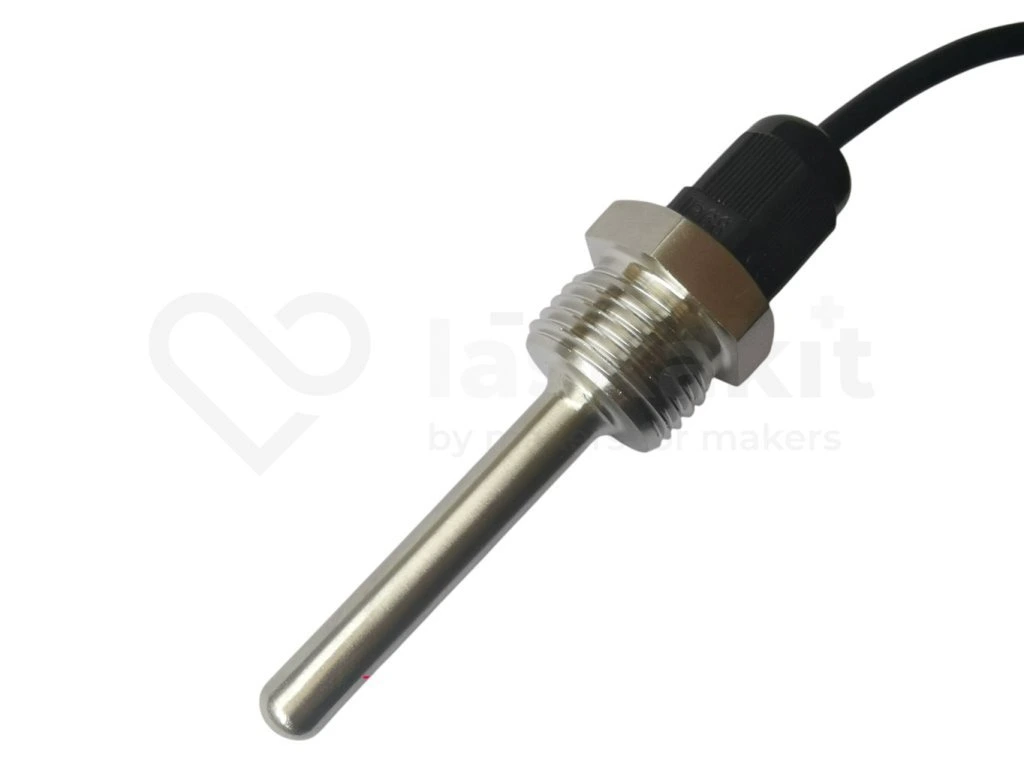

  • M10x1: IP67, Thread: 12mm, ø7x15mm
  • 8x50mm G1/2: IP68

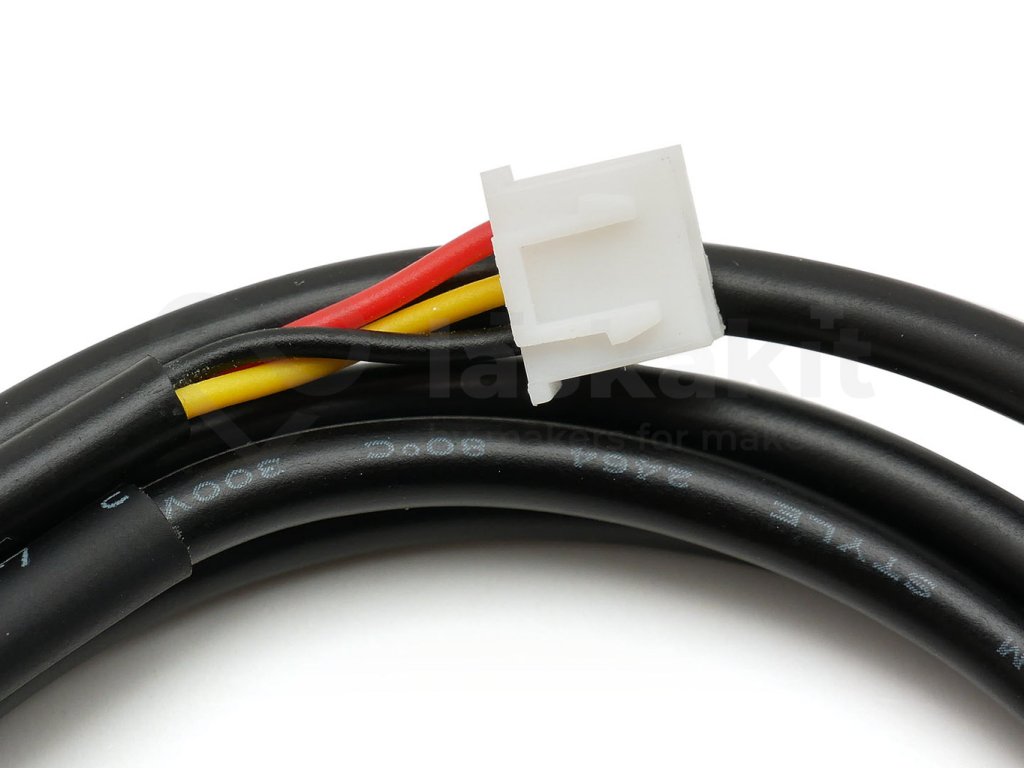

• Connector: JST-XH-3
• Temperature range: -55 to +125 °C.
• Normal and parasitic connections!
• Accuracy: 0.2°C.
• Power supply: 3.0-5.5V
• Cable length: 1m
• Cable diameter: 4mm
• Wiring: red: VDD, black: GND, yellow: DQ

Included in delivery:

• 1pc DS18B20 digital waterproof temperature sensor 1m

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
