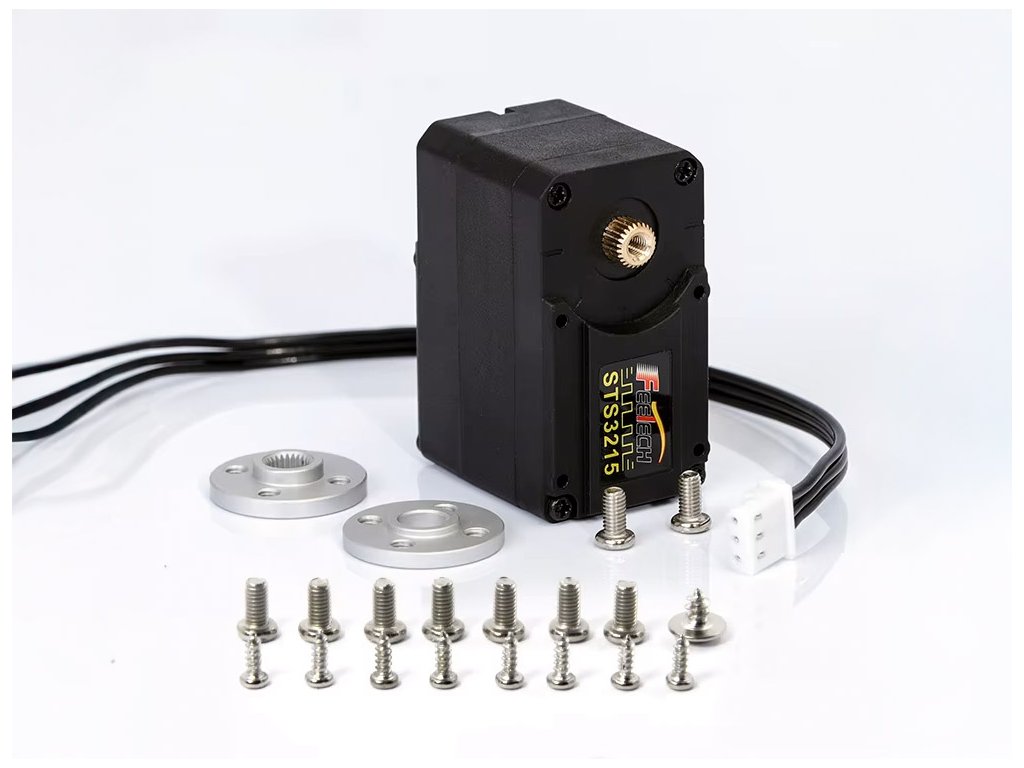

Feetech STS3215 Serial Bus Servo 30kg

Product detailed description

the 30KG Bus Servo Motor is a programmable servo with a magnetic encoder that allows full 360° rotation. Any angle can be set as the center position and the device can be switched to continuous or stepper motor mode. It operates with a voltage of 12V V and delivers a torque of up to 30 kg*cm at 12 V. The servo is precise and reliable, ideal for use in robotics and engineering. With a maximum speed of 45rpm and high programmability, it is an excellent choice for demanding projects.

Specifications:

• Model: ST-3215-C018
• Communication: UART
• ID range: 1 to 253
• Supply voltage: 7.4V to 12.6V
• Rotation range: 360°
• Step resolution: 4096
• Idle speed: 0.222s / 60°
• Torque with stopped shaft: 30kg*cm / 12V
• No-load current consumption: 180mA
• Current consumption when shaft is stopped: 2.7A
• Feedback: position, load, speed, input voltage
• Dimensions: 45x35x24.7mm

Included in delivery:

• 1pcs Feetech STS3215 Serial Bus Servo 30kg

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
