Product detailed description

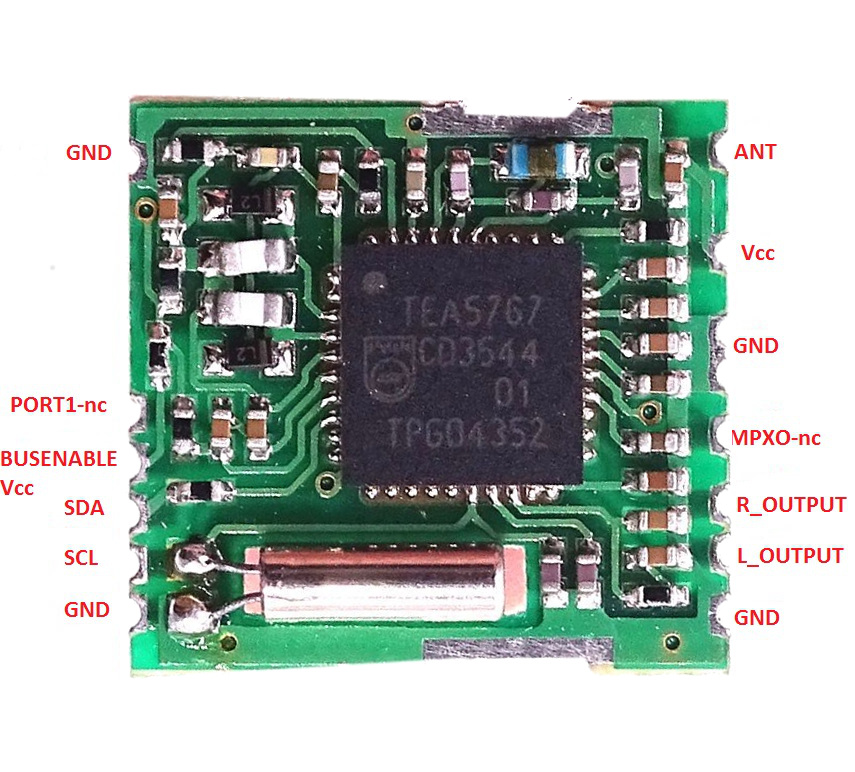

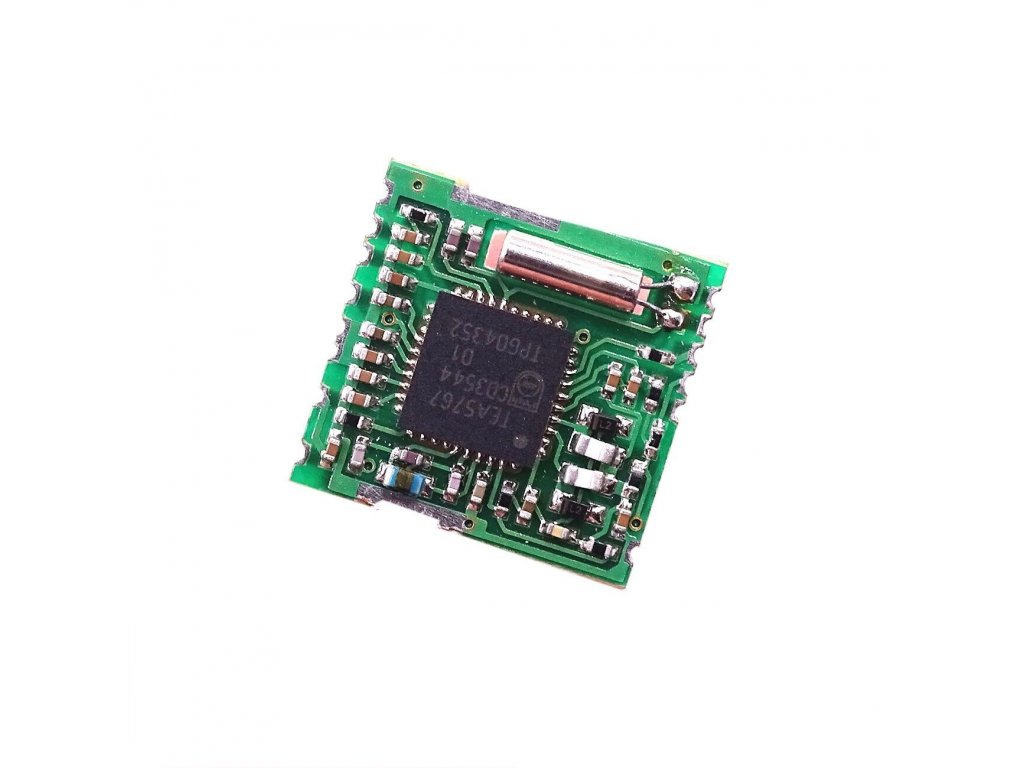

Miniature complete DSP radio receiver module for FM (86-106MHz). It is equipped with a TEA5767 integrated circuit - ideal for building a simple digitally controlled radio with Arduino. You connect only two outputs for communication with Arduino, power supply, output to the amplifier (headphones) and a piece of wire as an antenna.
Specifications:
- Chip: Philips TEA5767
- Frequency range: 76 Mhz to 108 Mhz
- I2C interface
- Power supply: 2.8-5V
- Headphone output
- Size: 15x15mm
Included in delivery:
- 1pc FM tuner 76MHz - 108MHz TEA5767
Remark:
- This product is not a standalone functional unit and may require professional installation.
- Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
Additional parameters
| Category: | Retired |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.001 kg |
