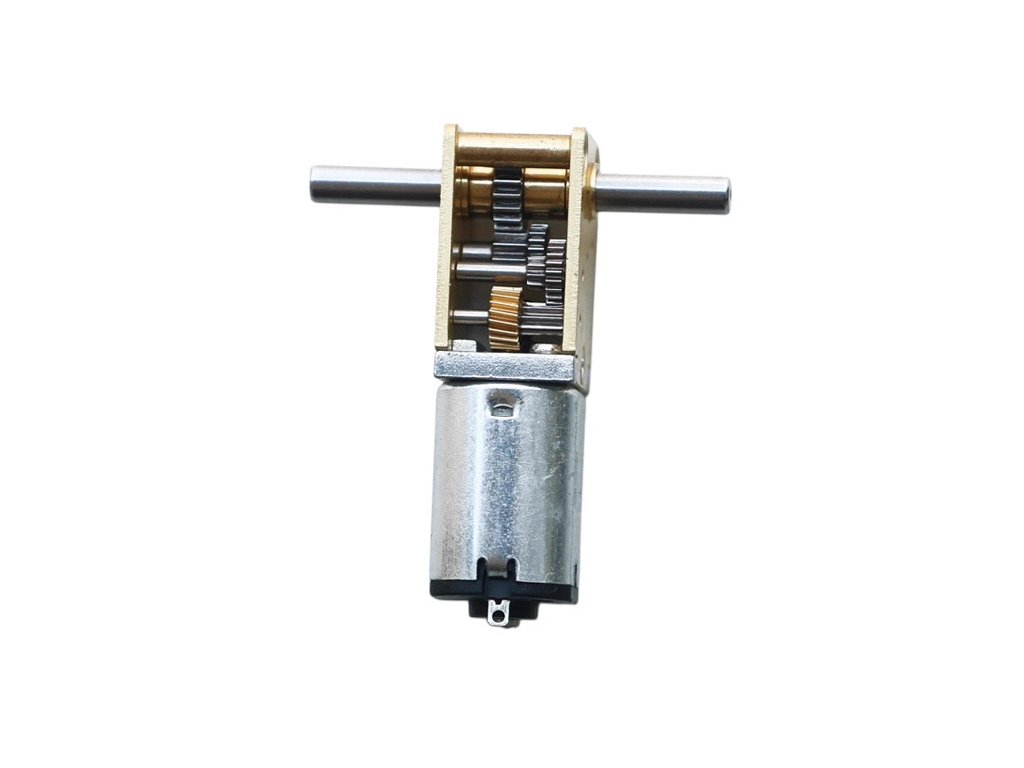

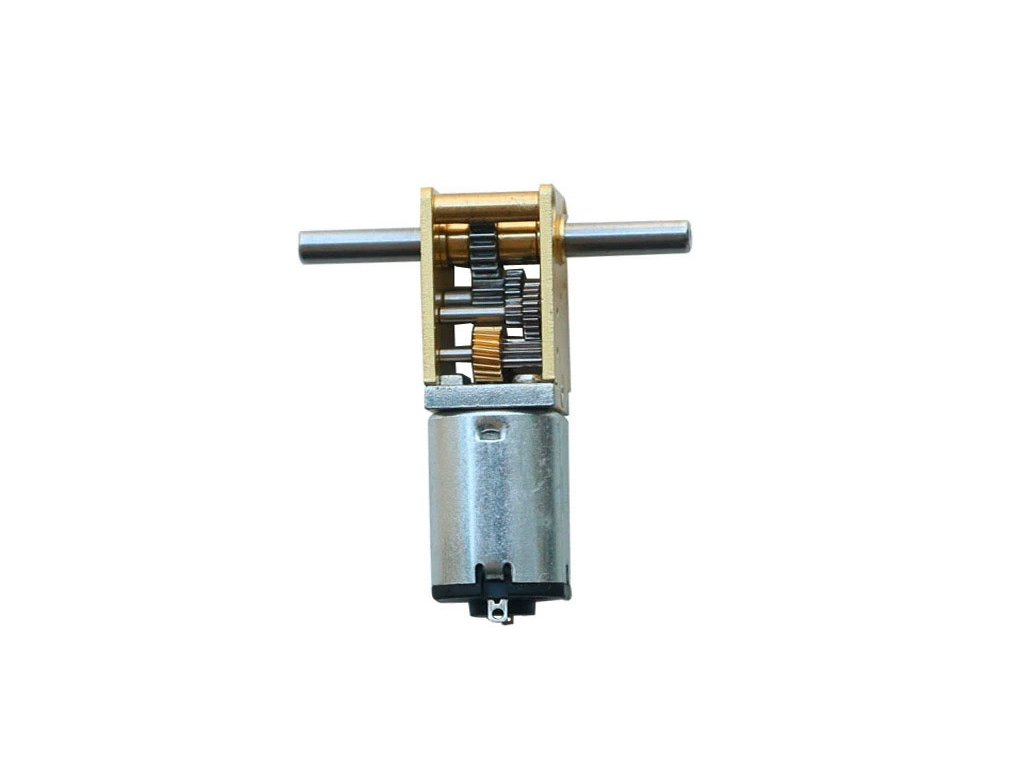

GA12-N20 DC motor 12 V with gearbox and dual shaft

Product detailed description

GA12-N20 is a compact DC motor with a metal gearbox and a double output shaft, designed for precision drives in robotics, automation, models, and DIY projects. Thanks to its small footprint, high gear ratio, and good torque, it is suitable for applications requiring a combination of low speed, power, and precise control. The motor is available in several variants differing in gear ratio and output speed.

Specifications:

• Motor type: brushed DC gear motor (GA12-N20)
• Rated voltage: 12 V DC
• Gearbox: all-metal, spur gear
• Output shaft: double (pass-through the gearbox)
• Shaft diameter: 3 mm
• Gearbox dimensions: 18 × 10 mm
• Total length: approx. 33.5 mm
• No-load current: approx. 30 mA
• Load current: approx. 85 mA
• Starting (stall) current: approx. 700 mA
• Available speed and Torque variants:
  • 16 RPM: approx. 989 gf·cm
  • 27 RPM: approx. 579 gf·cm
  • 53 RPM: approx. 362 gf·cm
  • 68 RPM: approx. 283 gf·cm
  • 100 RPM: approx. 180 gf·cm
  • 136 RPM: approx. 142 gf·cm
  • 381 RPM: approx. 71 gf·cm

Package contents:

• 1× GA12-N20 DC motor 12 V with gearbox and double shaft (according to the selected variant)

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
