GUITION JC1060P470C_I_W_Y ESP32-P4 + C6 Development module with 7" 1024x600 display

Product detailed description

GUITION JC1060P470C_I_W_Y is a fully equipped 7" development panel based on a pair of ESP32-P4 and ESP32-C6 chips. It combines a powerful dual-core RISC-V processor, Wi-Fi 6 with Bluetooth 5, a 1024×600 IPS display with capacitive touch, 100Mbit Ethernet, a camera interface, and a rich set of connectors into one compact unit in a protective case. It is suitable for wall-mounted HMI panels, smart home controllers, industrial terminals, and graphical applications using the LVGL library.

The panel comes pre-programmed with a demo application from the factory – simply connect power via USB-C and it is ready to run. It supports one-click programming, and ready-made libraries and sample programs (LVGL, MP3 player, Wi-Fi scan, battery voltage measurement) are available for Arduino IDE and ESP-IDF, allowing you to launch even complex projects surprisingly quickly.

Specifications:

• Model: GUITION JC1060P470C_I_W_Y (capacitive touch, version with protective case)
• MCU – main unit: ESP32-P4 (JC-ESP32P4-M3 module), dual-core RISC-V up to 400 MHz, FPU and AI instruction extensions
• Wireless section: ESP32-C6 connected via ESP-Hosted (SDIO/SPI/UART) – 2.4GHz Wi-Fi 6, Bluetooth 5 (LE)
• Memory:
  • PSRAM: 32 MB
  • Flash: 16 MB
  • Internal memory: 768 kB HP L2MEM + 32 kB LP SRAM + 128 kB HP ROM
  • External storage: TF card slot (microSD)
• Display:
  • Diagonal: 7.0" TFT
  • Type: IPS
  • Resolution: 1024 × 600 px
  • Color depth: 24bit RGB, 16.7 million colors
  • Display Controller: JD9165 (MIPI-DSI)
  • Touch: capacitive, GT911 controller (I2C)
• Camera: 30P 0.5mm FPC interface (MIPI-CSI) for camera module; the driver for the OV02C10 sensor (2 Mpx) is included in the demo projects
• Multimedia: hardware H.264 encoding and JPEG decoding, speaker connector (MX 1.25 2P)
• Power Supply:
  • Supply Voltage: 5 V DC (via USB-C)
  • Current consumption: approx. 600 mA
  • Battery: connector for Li-ion cell (MX 1.25 2P) with charging circuit and battery button
  • RTC: backup battery holder for real-time clock

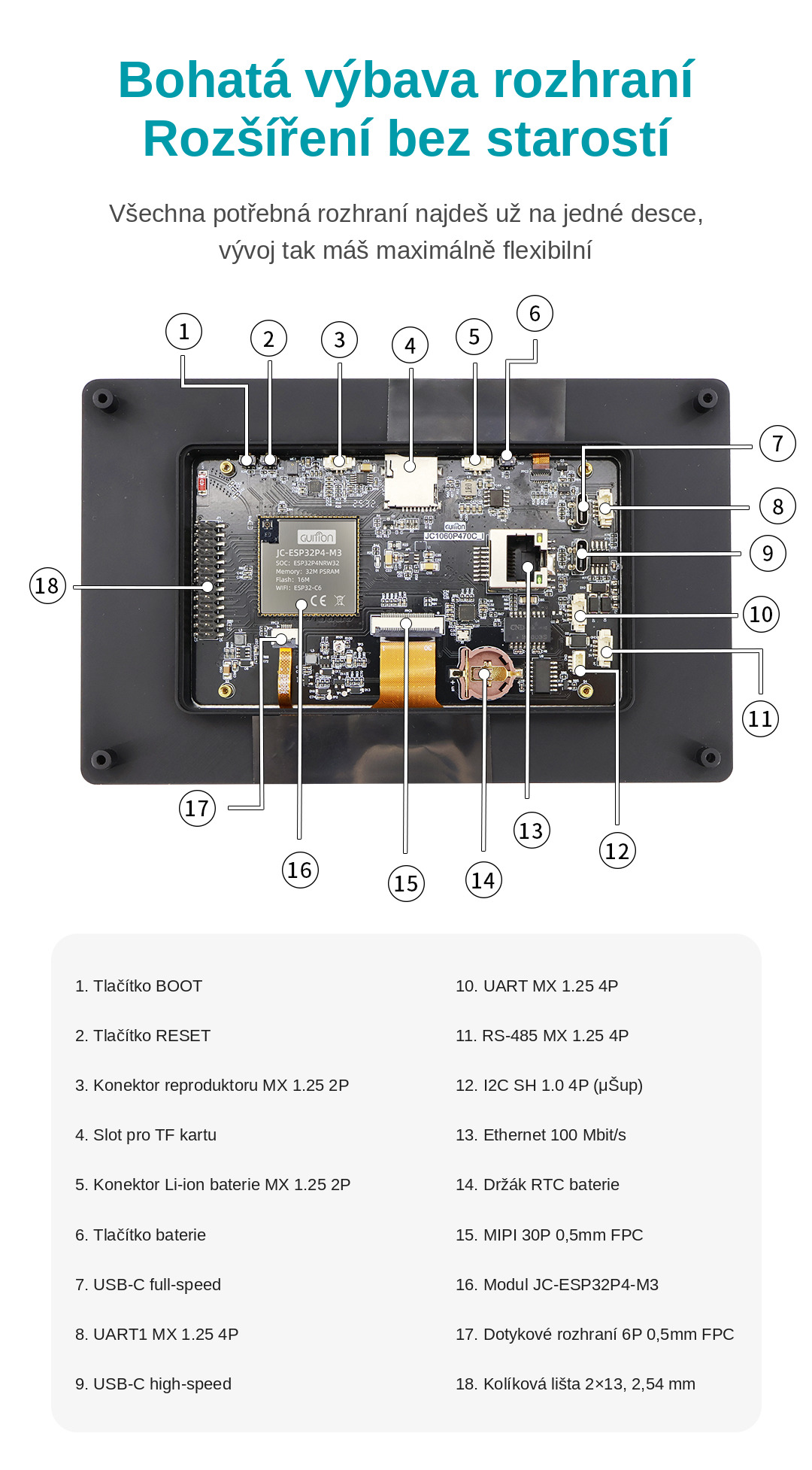

• Connectors and Interfaces:
  • USB-C ×2: one full-speed, one high-speed (power, programming, serial output)
  • Ethernet: RJ45, 100 Mbit/s
  • μ-Plug (Qwiic, easyC, STEMMA QT): SH 1.0 4P, I2C
  • UART1: MX 1.25 4P
  • UART: MX 1.25 4P
  • RS-485: MX 1.25 4P
  • Touch Interface: 6P 0.5mm FPC
  • Expansion Pins: 2×13 pin header with 2.54 mm pitch
  • Buttons: BOOT and RESET

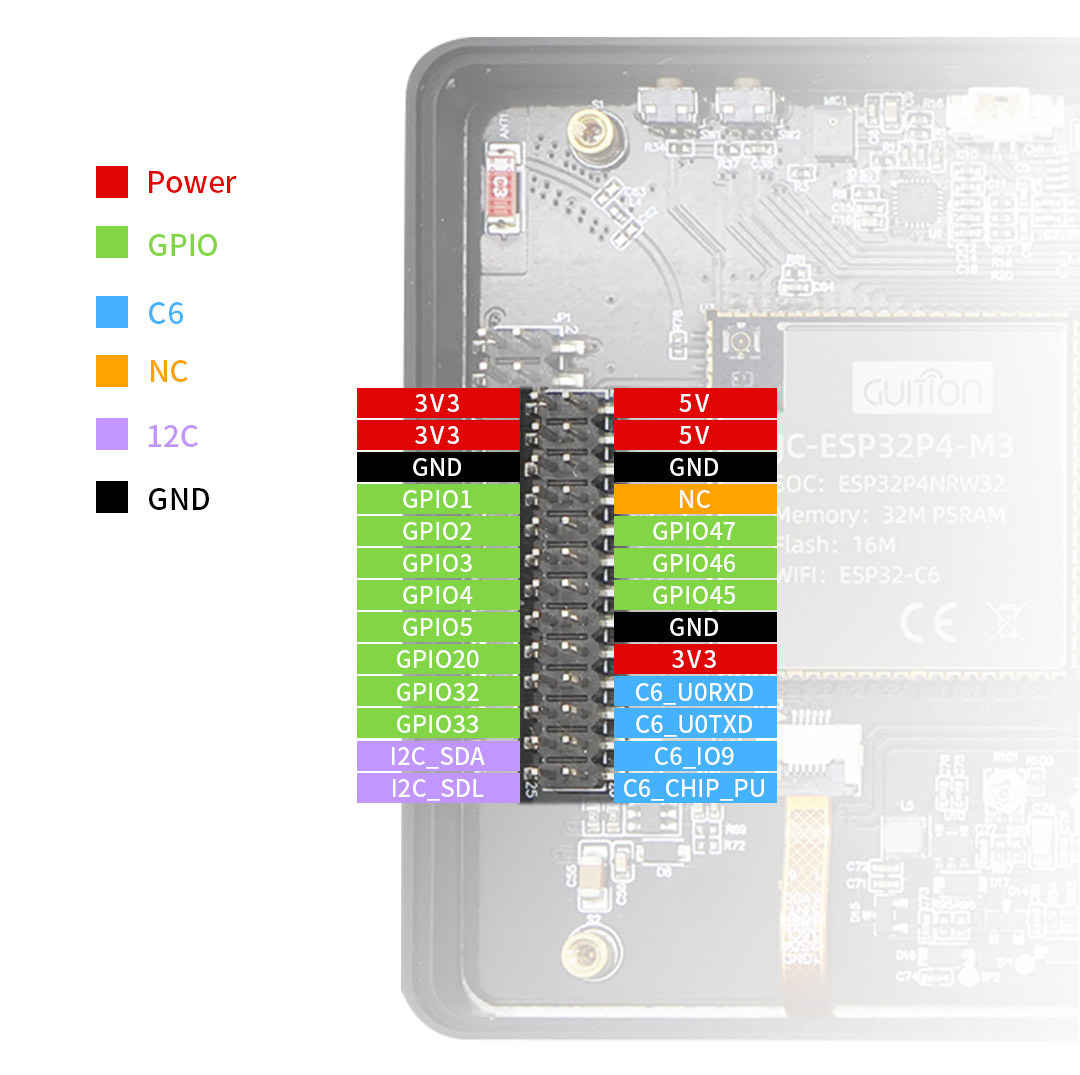

• Breakout pins on the 2×13 header:
  • Power: 3V3 (3×), 5V (2×), GND (3×)
  • GPIO (ESP32-P4): GPIO1, 2, 3, 4, 5, 20, 32, 33, 45, 46, 47
  • I2C: I2C_SDA, I2C_SCL
  • ESP32-C6: C6_U0RXD, C6_U0TXD, C6_IO9, C6_CHIP_PU
• Dimensions:

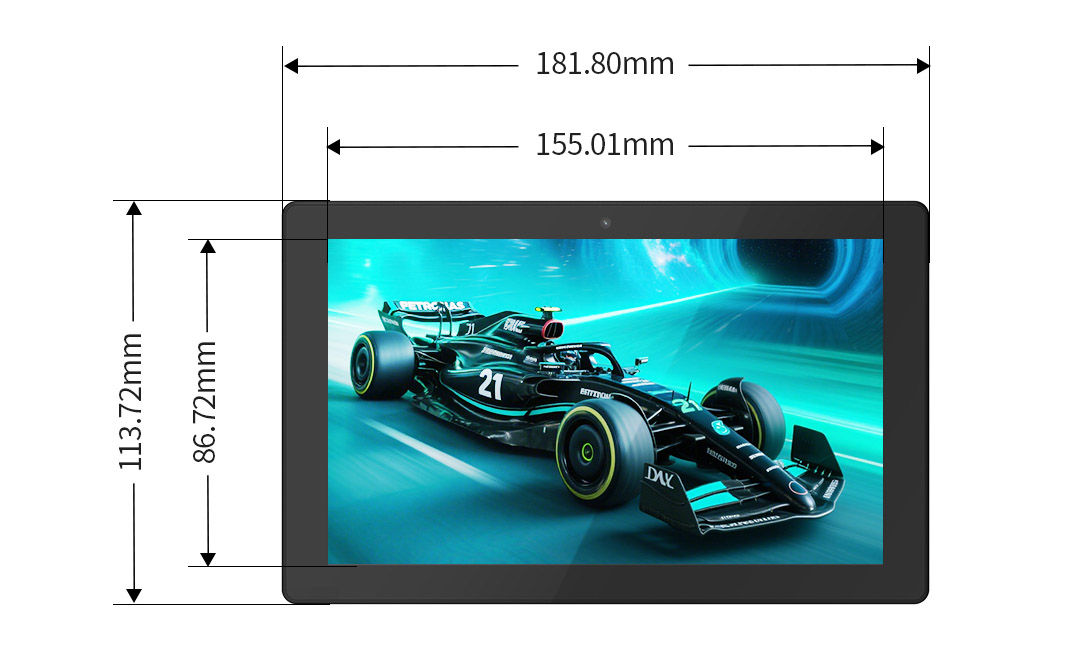

  • Module: 181.80 × 113.72 mm
  • Active Display Area: 155.01 × 86.72 mm

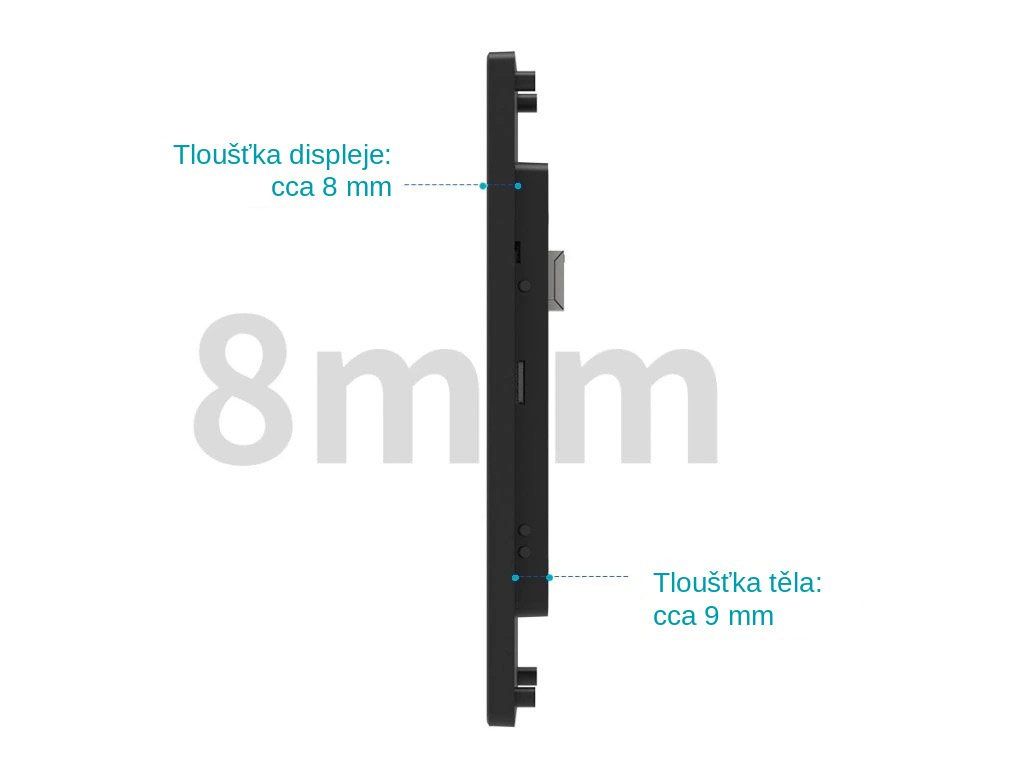

  • Display Thickness: approx. 8 mm
  • Body Thickness: approx. 38 mm
• Weight: approx. 300 g
• Operating Temperature: -20 °C to +70 °C
• Storage temperature: -30 °C to +80 °C
• Supported Development Environments: Arduino IDE ("ESP32P4 Dev Module" board, arduino-esp32 v3.1.0 or newer), ESP-IDF 5.5.4, MicroPython, Guition
• GUI Support: LVGL library v8.4 and v9, ESP-Brookesia, SquareLine Studio
• Example Programs: LVGL demo, LVGL with image rotation, MP3 player, Wi-Fi scan, battery voltage measurement (ADC)
• Pre-loaded firmware: built-in demonstration programs
