Heltec MeshPocket Qi2 10000mAh Magnetic Wireless Powerbank, nRF52840 + SX1262 Meshtastic

Product detailed description

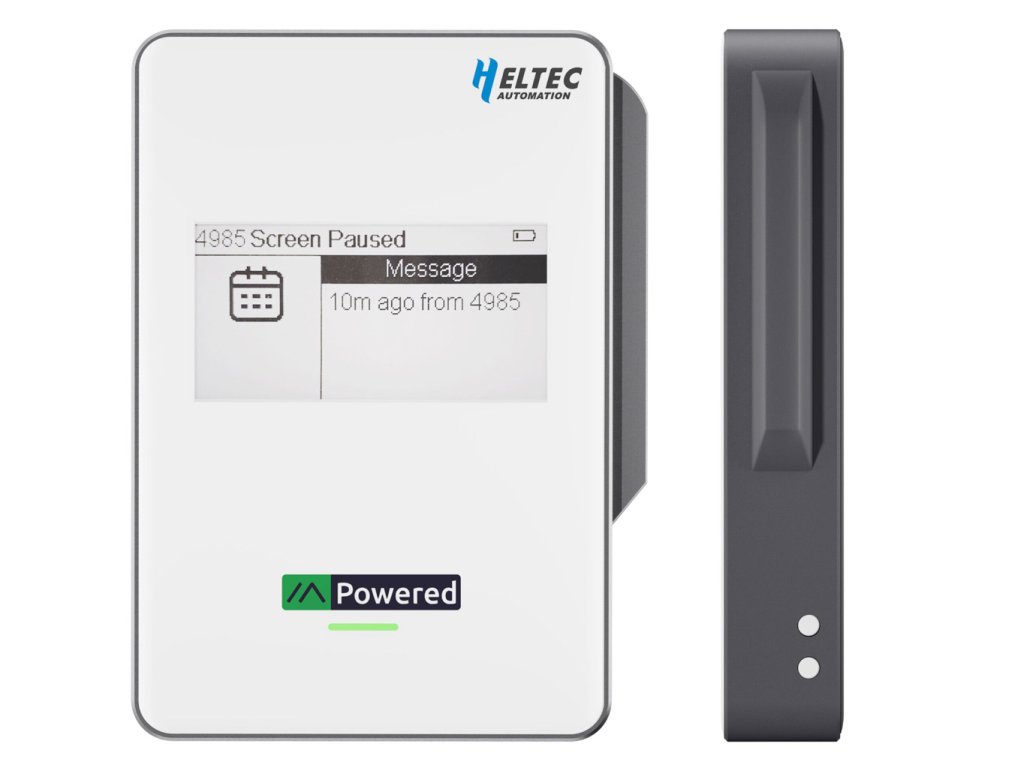

The Heltec MeshPocket Qi2 Magnetic Wireless Powerbank is an innovative device that combines the functions of a magnetic wireless power bank with LoRa/BLE communication and an e-ink display. It is ideal for users of the Meshtastic platform, outdoor enthusiasts and IoT solution developers.

Power and charging:

• Battery capacity: 10000 mAh (Li-Pol)
• Wireless charging: Qi2 compatible, output 5 W / 7.5 W / 10 W / 15 W
• USB-C: Input/output 5 V/3 A or 9 V/2.22 A
• Supported protocols: PD, AFC, Huawei
• Simultaneous charging and discharging: yes (e.g. 10 W USB-C + 5 W wirelessly)
• Protections: overvoltage, undervoltage, overheating, short circuit, overcharge

Communication functions:

• LoRa chip: SX1262 868 MHz
• Bluetooth: nRF52840 (BLE)
• LoRa range: up to 10 km
• Pre-installed firmware: Meshtastic
• Update option: via web interface or magnetic programming port

Display and controls:

• Display: 2.13" e-ink
• Buttons:
  • USER: Meshtastic mode switching
  • CTRL: wireless charging and power mode control
  • RST: device reset

Dimensions and weight:

• Dimensions: 102 × 74.1 × 10.8 mm
• Weight: 220 g

Safety warnings (Precautions):

• If wireless charging is abnormal or a foreign object (FOD) is detected, the charging indicator flashes yellow and the system recovers within 5 s after the object is removed.
• You can control the Meshtastic interface using the buttons on the right side of the device.
• To ensure long battery life, charge the device at least once every three months.
• Do not expose the device to high temperatures or heat sources (car, sun, heater, microwave, oven, etc.) – risk of explosion.
• Only use original or certified adapters and data cables. Do not use incompatible or unapproved accessories – risk of fire or explosion.
• Do not leave the device in poorly ventilated areas for extended periods (e.g. handbag, bag) – risk of overheating or fire.
• The device contains a Li-ion battery – do not open the case, risk of damage to the cell or ignition.
• Do not drop, crush, puncture, short-circuit, immerse in water or fire. Dispose of damaged devices according to local regulations, do not dispose of in municipal waste.
• Do not use the device during a thunderstorm – risk of damage or electric shock.
• Avoid contact with liquids and impacts. If the battery shows swelling, leakage, deformation, etc., stop using it immediately.
• Keep the device out of reach of children.

Package contents:

• 1× Mesh pouch
• 1× USB-C to USB-C cable
• 1× USB-A to magnetic data cable
• 1× 3M magnetic sticker
• 1× printed manual (EN)

Comment:

• Water resistance: the device is not waterproof
• Interference: wireless charging may affect the quality of the RF signal; it is recommended to turn it off during critical communication
• Low consumption: the USB-C output may automatically turn off when the current is <50 mA
