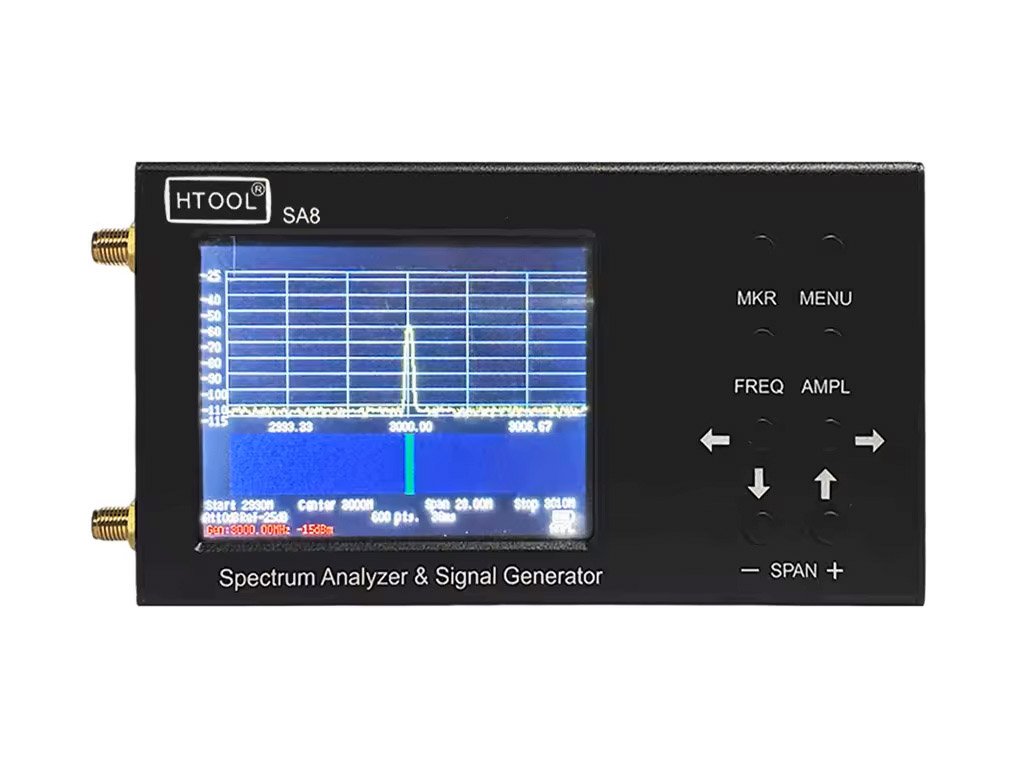

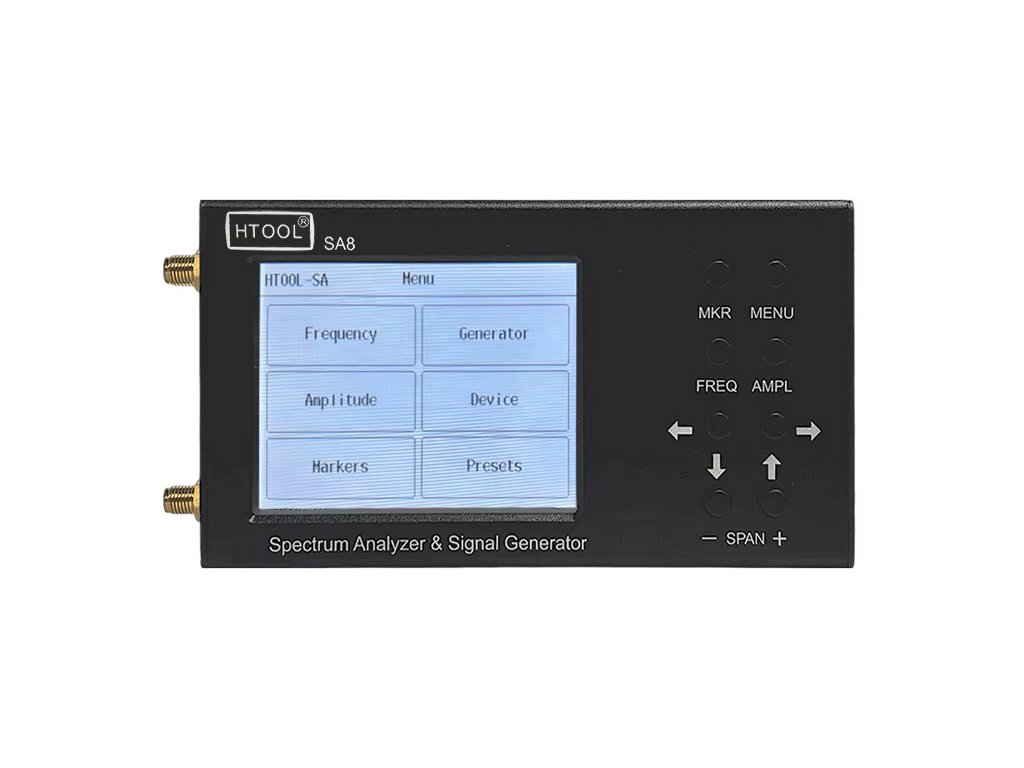

HTOOL SA8 Spectrum Analyzer and Signal Generator

Product detailed description

The HTOOL SA8 is a portable and versatile spectrum analyzer combined with a signal generator. It allows for quick analysis of the RF environment over a wide frequency range and can simultaneously generate signals for testing, tuning, and diagnostics. Thanks to its touchscreen display, PC connectivity, and built-in battery, it is ideal for both field work and use on a service bench.

Specifications:

• Type: spectrum analyzer and signal generator in one
• Frequency range: 35 MHz to 6200 MHz

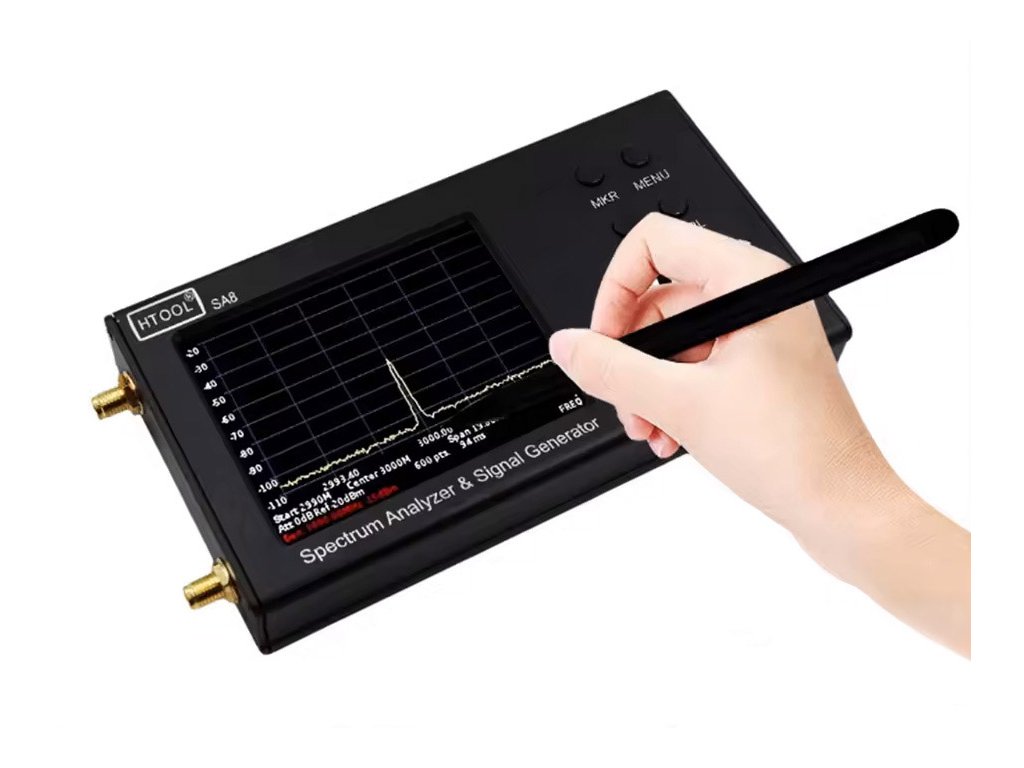

• Display: 3.2" color touchscreen display (stylus operation)
• Battery: integrated 3000 mAh, battery life at least 4 hours
• Interface: USB-C (PC connection, data transfer, and software control)
• Modes: RF signal analysis, signal generation, fast spectral scanning
• Suitable use: RF environment monitoring, frequency measurement, antenna tuning, repair and adjustment of repeaters, filters, and SWR (when using a directional coupler)
• Construction: compact portable design, suitable for field diagnostics

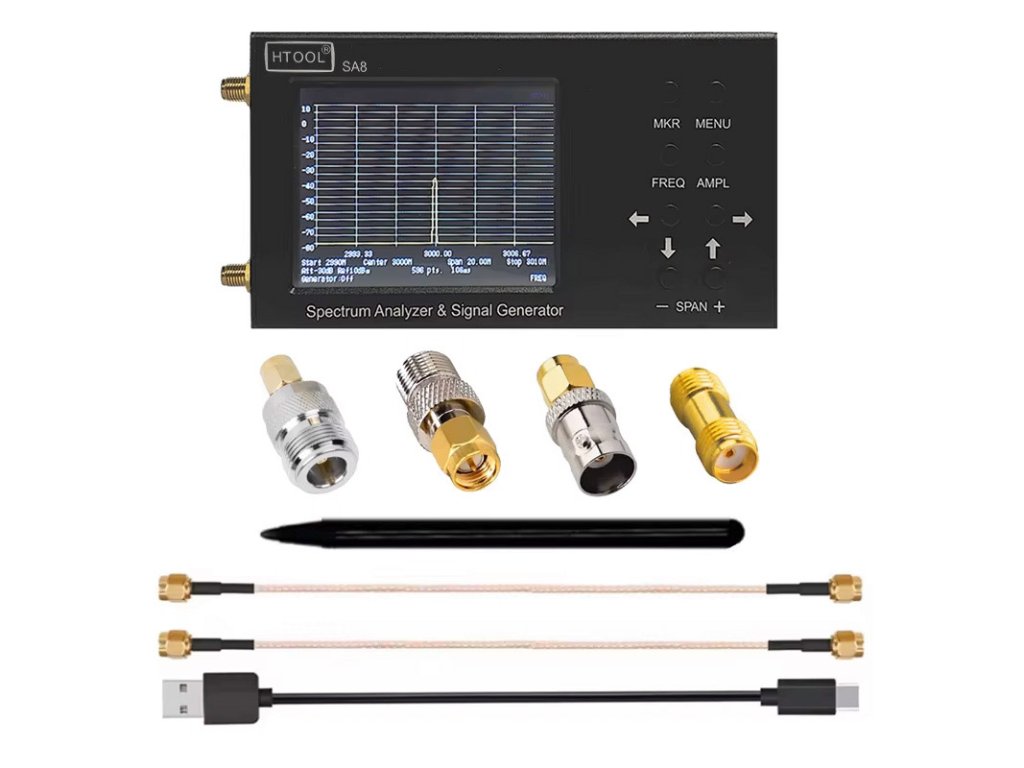

Package contents:

• 1× HTOOL SA8 Spectrum Analyzer & Signal Generator (6G version)
• 1× USB-C cable
• 2× SMA RG316 RF cable 30 cm
• 1× SMA female-female adapter
• 1× Stylus pen

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
• SD card not included.
