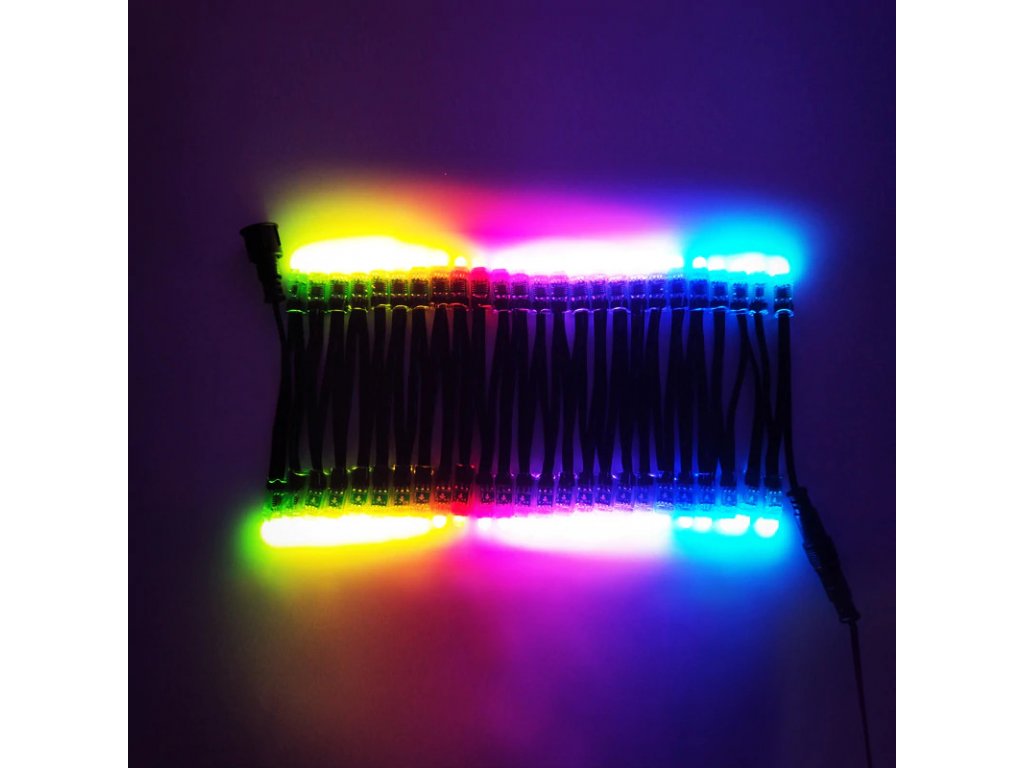

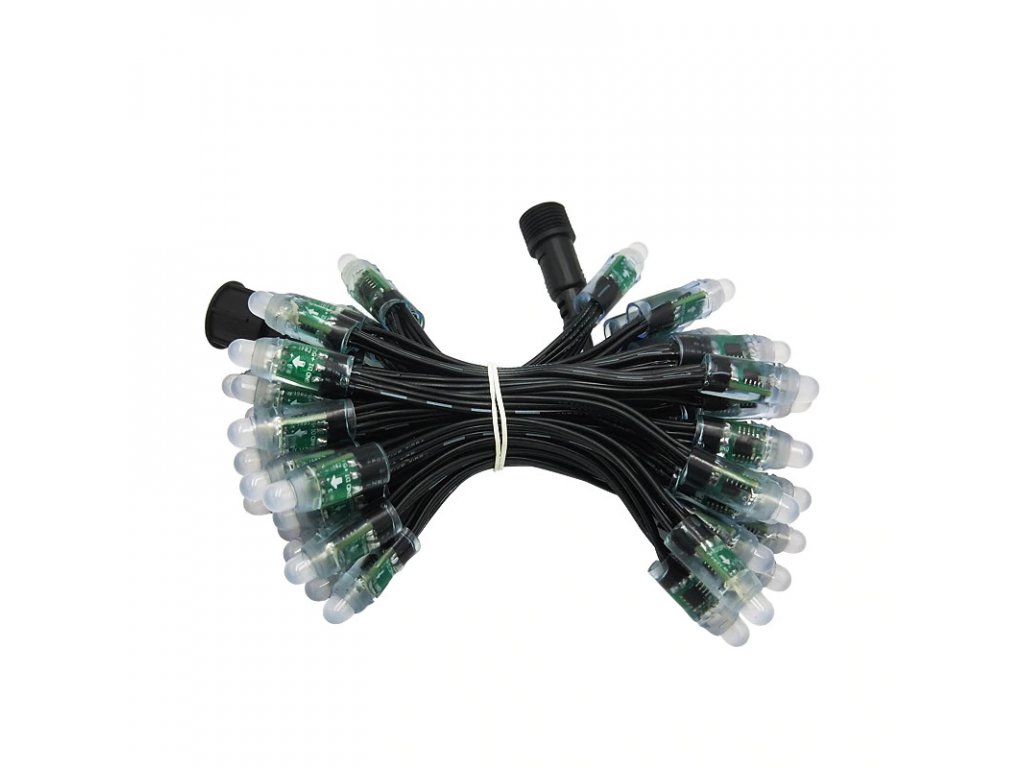

Intelligent RGB LED NeoPixel garland IP68 WS2811 12V

Product detailed description

The smart RGB LED string IP68 with WS2811 chips consists of LEDs connected in series, where each LED contains a controller with 3 bytes of memory to set the light intensity of individual colours (R, G, B). Control is carried out via a single digital wire, allowing a large number of LEDs to be controlled using a single pin of an Arduino or another microcontroller. Thanks to the IP68 rating, the string is also suitable for outdoor and humid environments. The 12V power supply allows multiple chains to be connected in series (limited only by the maximum current of the power source); however, note that with 12V power, the voltage on the data pin is the same, so a voltage level shifter circuit is necessary for direct control from a 5V Arduino.

Specifications:

• LED Type: WS2811 (integrated controller, series connection)
• Power Supply: 12V DC
• Current: 540 mA / 50 pcs LED
• LED Diameter: 8 mm
• Protection rating: IP68
• Brightness: approx. 350 mcd
• Connections: 4 (VCC, GND, DI – data input, DO – data output)
• Protocol: 24 bits (3× 8 bit RGB)
• Extended Length: approx. 4.7 m
• Interconnecting cable (input/output):
  • Interconnecting cable with connector, waterproof, 3-pin, male

Package contents:

• 1× Smart RGB LED NeoPixel String IP68 WS2811 12V

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustrative purposes only and may sometimes differ from the actual appearance of the item. However, this does not change their basic properties.
