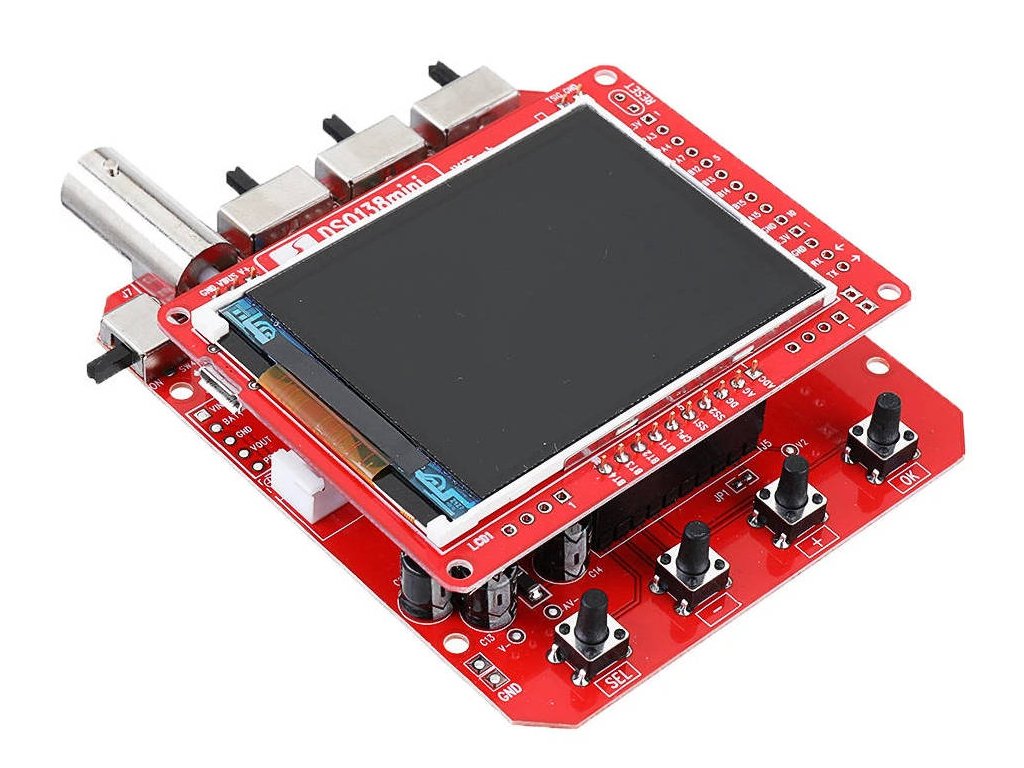

JYE Tech orig. Digital Oscilloscope DSO138mini 200khz

Product detailed description

JYE Tech original Digital Oscilloscope DSO138mini 200kHz is a compact and affordable oscilloscope designed for beginners and experienced electronics enthusiasts. This instrument provides a simple way to perform basic signal measurements and analyze various electrical circuits.

The heart of the oscilloscope is a Cortex-M3 ARM microcontroller (STM32F103C8). The display is a 2.4", 320 x 240 dot TFT LCD screen. The oscilloscope needs 3.5-6 V for power supply (power supply not included).

Specifications:

• 1 analog channel,
• bandwidth 0 to 200 kHz,
• sampling rate up to 1MS/s,
• aUTO, NORMAL, SINGLE, leading or trailing edge triggering,
• sensitivity 10 mV/d to 5 V/d,
• maximum input voltage 50 V,
• vertical resolution 12 bits,
• input impedance 1 MΩ,
• memory length 1 kpts,
• built-in 1 kHz, 3.3 V generator,
• HOLD function.

Included in delivery:

• 1 pc JYE Tech orig. Digital Oscilloscope DSO138mini 200khz
• 1pc Cable probe

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
