LILYGO OV2640 2MP camera

Product detailed description

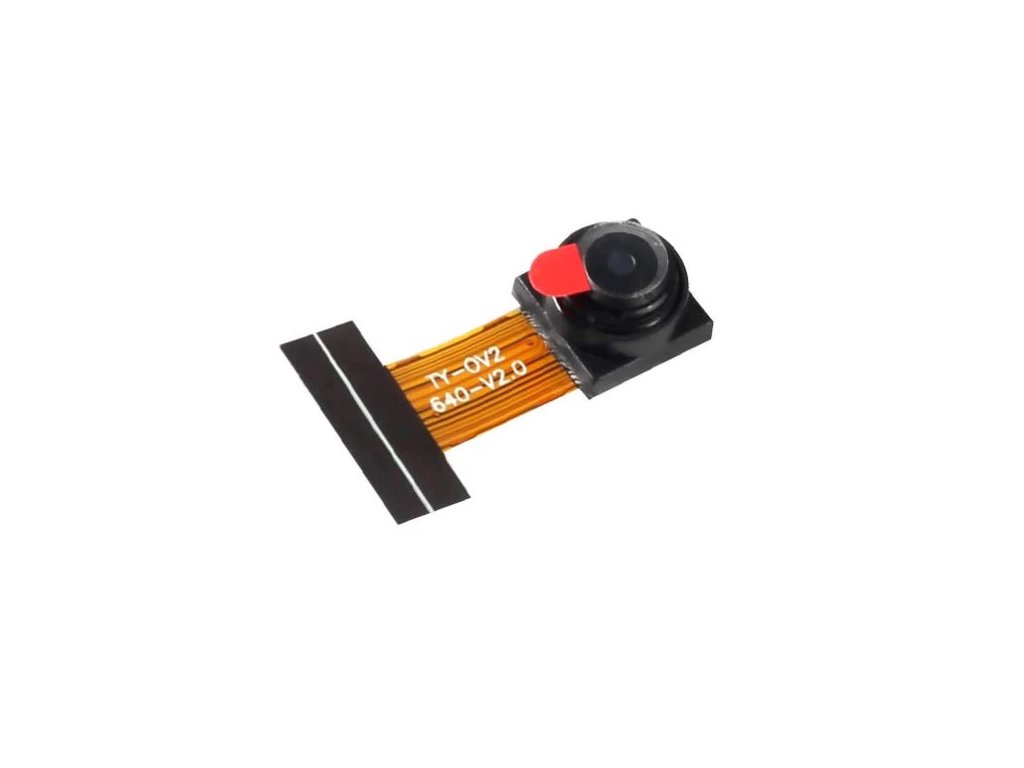

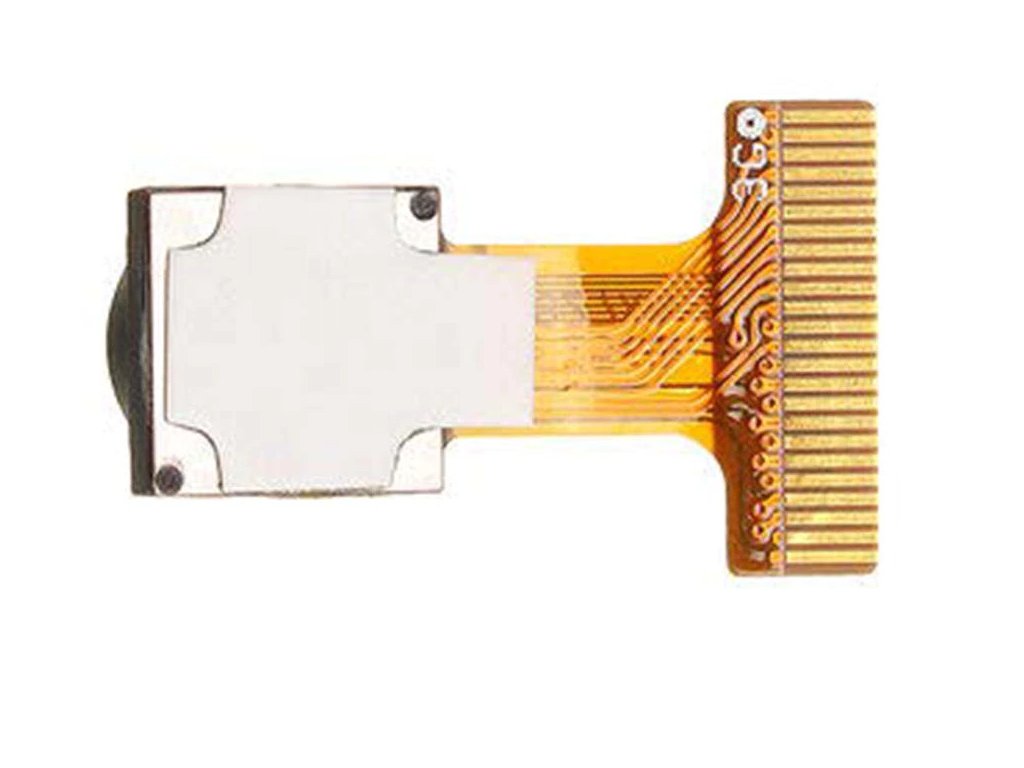

The compact LILYGO OV2640 2MP camera module is designed for easy integration with development boards, especially the popular Ai-Thinker ESP32-CAM. It offers a resolution of up to 2 MP (UXGA 1600×1200), with image transmission via a parallel 8-bit bus ensuring fast communication with the microcontroller. The module is available with different cable lengths (10 mm or 60 mm) and in Normal (standard field of view) or FishEye (wide-angle lens) versions. Thanks to its low power consumption and broad format support, it is ideal for IoT projects, surveillance systems, or AI applications.

Specifications:

• Model: OV2640
• Resolution: 2 MP (UXGA 1600 × 1200)

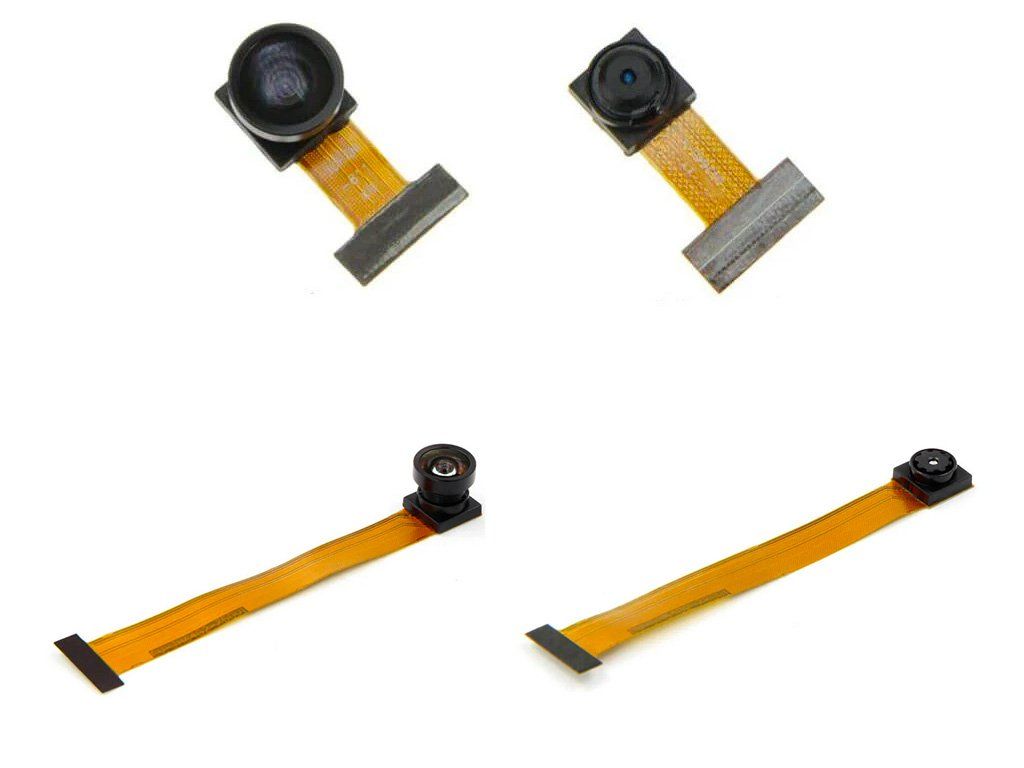

• Variants: Normal (standard lens), FishEye (wide-angle lens)
• Cable Length: 10 mm / 60 mm
• Sensor Size: 1/4"
• Pixel Size: 2.2 × 2.2 μm
• Core Power Supply: 1.2 V DC ±5%
• Module Power Supply: 2.5 – 3.0 V DC
• I/O Voltage: 1.7 – 3.3 V
• Communication: parallel 8-bit bus + synchronisation and clock signals
• Output Formats:
  • YUV (422/420) / YCbCr422
  • RGB565 / RGB555
  • 8-bit compressed data
  • 8 / 10-bit RGB data
• Frame Rate:
  • UXGA / SXGA: 15 fps
  • SVGA: 30 fps
  • CIF: 60 fps
• Power consumption:
  • Active: 125 mW (UXGA YUV, 15 fps)
  • Active (Compression): 140 mW
  • Standby mode: 600 μA
• Sensitivity: 0.6 V / Lux·s
• Signal-to-noise ratio: 40 dB
• Dynamic range: 50 dB
• Scanning mode: progressive
• Max. exposure: 1247 × tROW
• Gamma correction: programmable
• Dark current: 15 mV at 60 °C
• Capacity: 12 Ke
• Fixed pattern noise: < 1 % VPEAK-TO-PEAK
• Sensor dimensions: 3590 × 2684 μm
• Case dimensions: 5725 × 6285 μm
• Operating temperature: 0 °C to 50 °C
• Storage temperature: -30 °C to 70 °C

Package contents:

• 1× LILYGO OV2640 camera module (depending on the chosen variant)

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustrative purposes only and may sometimes differ from the actual appearance of the item. However, this does not change their basic properties.
