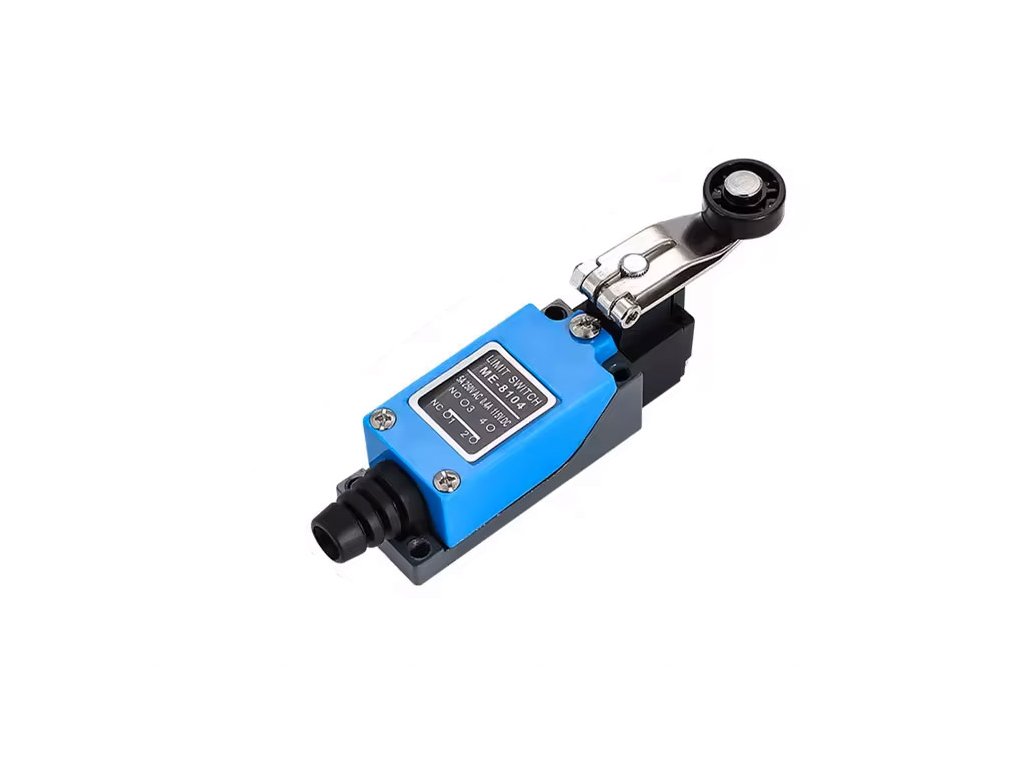

Limit Switch and Rotary Lever Arm ME-8104 with Roller CNC N3

Product detailed description

Limit switch ME-8104 with rotary lever arm and roller (CNC N3) for reliable detection of end positions in CNC machines, conveyors and industrial automation. The rotating arm with roller enables smooth contact with the cam from the direction as needed, the IP65 rated body resists dust and splashing water.

Specifications:

• Model: ME-8104 (rotary lever arm with roller)
• Contact configuration: 1× changeover (SPDT) – COM, NO, NC
• Rated load (AC): 5 A at 250 V AC (resistive load)
• Rated load (DC): approx. 0.4 A at 115 V DC (approximate)
• Degree of protection: IP65 (dustproof, splash-proof)
• Arm: Rotatable ±90° (right/left), spring return
• Roller (wheels): approx. 1.8 × 0.7 cm for smooth contact with the cam
• Arm length: approx. 4.6 cm
• Body dimensions: approx. 12.3 × 2.8 × 3.9 cm
• Mounting hole spacing: approx. 56 × 21 mm
• Connection: screw terminals inside the body (COM/NO/NC)
• Material: combination of metal and durable plastic
• Typical use: axis end stops, return/reference switches, mechanics travel detection

Package contents:

• 1 × limit switch ME-8104 with rotary lever arm and roller (CNC N3)

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product photos correspond to the real product, but in exceptional cases may differ, for example in colour.
