KR601E RFID access reader 125Khz Wiegand IP65

Product detailed description

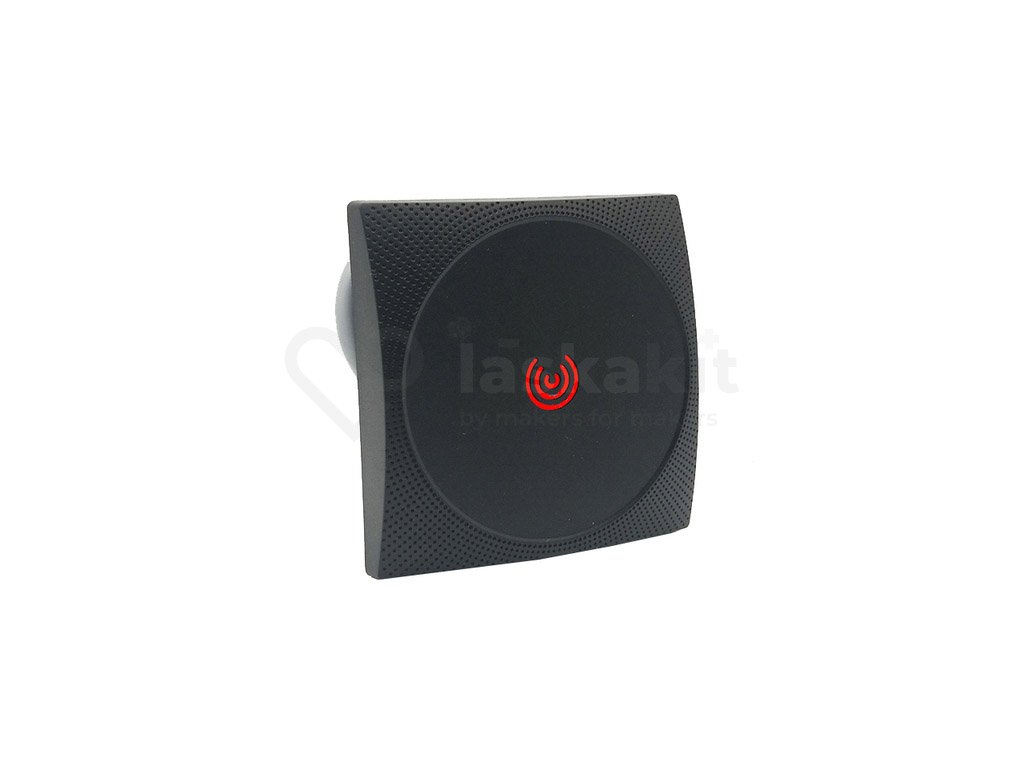

The KR601E waterproof RFID reader is used for access control to facilities using an RFID card or key fob. It reads 125 kHz cards and transmits the read card number via a Wiegand 26-bit interface, allowing it to be connected to a standard access control panel or controller. Audio and visual signalling can be controlled by a master controller. Thanks to the IP65 rating, it can also be mounted outdoors.

WARNING! The reader is very difficult to disassemble after assembly due to its construction! It is recommended to complete the reader after it is fully debugged. So it is not a defect, but a specific design of the reader.

Specifications:

• Frequency: 125 kHz
• Supported cards: 125 kHz ID cards and key fobs (EM4100 and compatible)
• Reading range: approx. 5–10 cm
• Output: Wiegand 26 bit
• Data line voltage level: 5 V
• Power supply: 12 V DC (±5 %)
• Power consumption:
  • Idle: < 80 mA
  • When reading a card: < 200 mA
• Signalling: buzzer and LED, externally controllable
• Protection rating: IP65 (outdoor use)
• Operating conditions:
  • Temperature: −10 °C to +50 °C
  • Humidity: 20–80% RH
• Storage temperature: −20 °C to +60 °C
• Dimensions: 86 × 86 × 16 mm

Connection:

• Red: VCC (+12 V)
• Black: GND
• Green: D0
• White: D1
• Purple: buzzer (active low – connect to GND)
• Grey: green LED (active low – connect to GND)

Package contents:

• 1× KR601E RFID reader

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustrative purposes only and may sometimes differ from the actual appearance of the item. However, this does not change their basic properties.
