KR602M RFID access reader with keyboard 13.56MHz Wiegand IP65
Code: LA162077D
Free Shipping
From 100 EUR
30 Days to Return
For Registered
30 Days to Return
For Registered Customers
Free Shipping
For orders from 100 EUR
Customer Care
We handle complaints within 5 days
Quick dispatch
Within 24 hours
Product detailed description
The KR602M waterproof RFID reader with keypad is designed for access control to facilities using an RFID card, key fob, or numeric code. It reads 13.56 MHz cards according to the ISO/IEC 14443A standard and transmits the read card number or entered code via a 34 or 26-bit Wiegand interface, allowing it to be connected to a standard access control panel or controller. Audio and visual signalling can be controlled by a master controller. Thanks to the IP65 rating, it can also be mounted outdoors.
Specifications:
- Frequency: 13.56 MHz
- Supported cards: ISO/IEC 14443A (IC cards and key fobs)
- Reading range: approx. 5–10 cm
- Output: Wiegand 34 bit (default) / 26 bit
- Power supply: 12 V DC (±5 %)
- Power consumption:
- Idle: < 80 mA
- When reading a card: < 200 mA
- Signalling: buzzer and LED, externally controllable
- Protection rating: IP65 (outdoor use)
- Operating conditions:
- Temperature: −10 °C to +50 °C
- Humidity: 20–80% RH
- Storage temperature: −20 °C to +60 °C

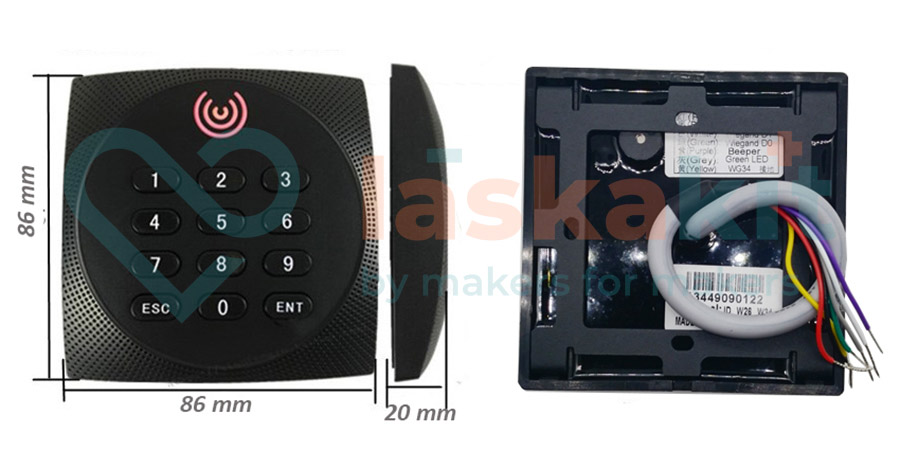

- Dimensions: 86 × 86 × 20 mm
Connection:
- Red: VCC (+12 V)
- Black: GND
- Green: D0
- White: D1
- Purple: buzzer (active low – connect to GND)
- Grey: green LED (active low – connect to GND)
- Yellow: Wiegand format selection – disconnected = 34 bit (default), connected to GND = 26 bit
Package contents:
- 1× KR602M RFID reader with keypad
Note:
- This product is not a standalone functional unit and may require professional installation.
- Product images are for illustrative purposes only and may sometimes differ from the actual appearance of the item. However, this does not change their basic properties.
Additional parameters
| Category: | RFID chips, readers and modules |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.188 kg |
Product rating
Be the first who will post an article to this item!
Discussion
List of discussions
R
program pro Arduino
Robert
program pro Arduino
Robert
#include
WIEGAND wg;
void setup() {
Serial.begin(9600);
wg.begin(2, 3);
}
void loop() {
if (wg.available()) {
unsigned long code = wg.getCode();
Serial.print("Wiegand Type: ");
Serial.print(wg.getWiegandType());
Serial.print(", Data: ");
// Pro Wiegand typ 8, výpis číselných hodnot pro Enter a Esc
if (wg.getWiegandType() == 8) {
Serial.print(", Number: ");
if (code == 13) {
Serial.println("Enter");
} else if (code == 27) {
Serial.println("Esc");
} else {
Serial.println(code);
}
}
// Pro Wiegand typ 34, výpis desítkové hodnoty s vedoucími nulami
else if (wg.getWiegandType() == 34) {
char formattedNumber[11]; // Dostatečně velký buffer pro 34bitové číslo
sprintf(formattedNumber, "%010lu", code); // Formátování s vedoucími nulami
Serial.print(", Decimal Number: ");
Serial.println(formattedNumber); // Výpis s vedoucími nulami
}
Serial.println(); // Nový řádek pro oddělení každého výpisu
}
}
