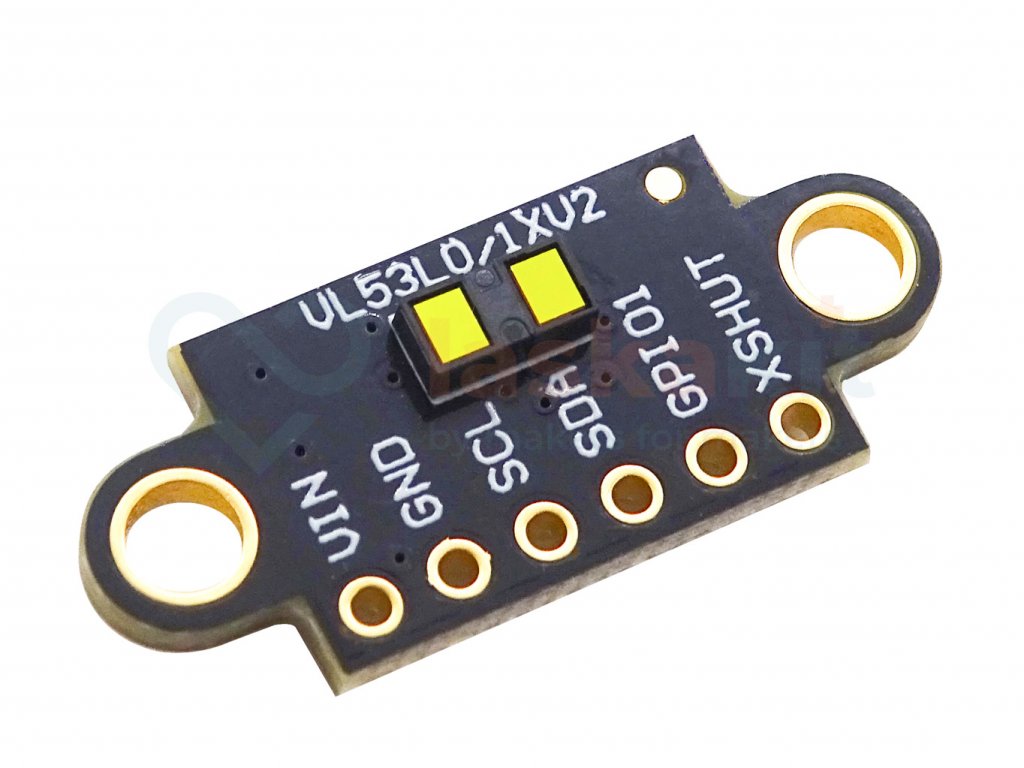

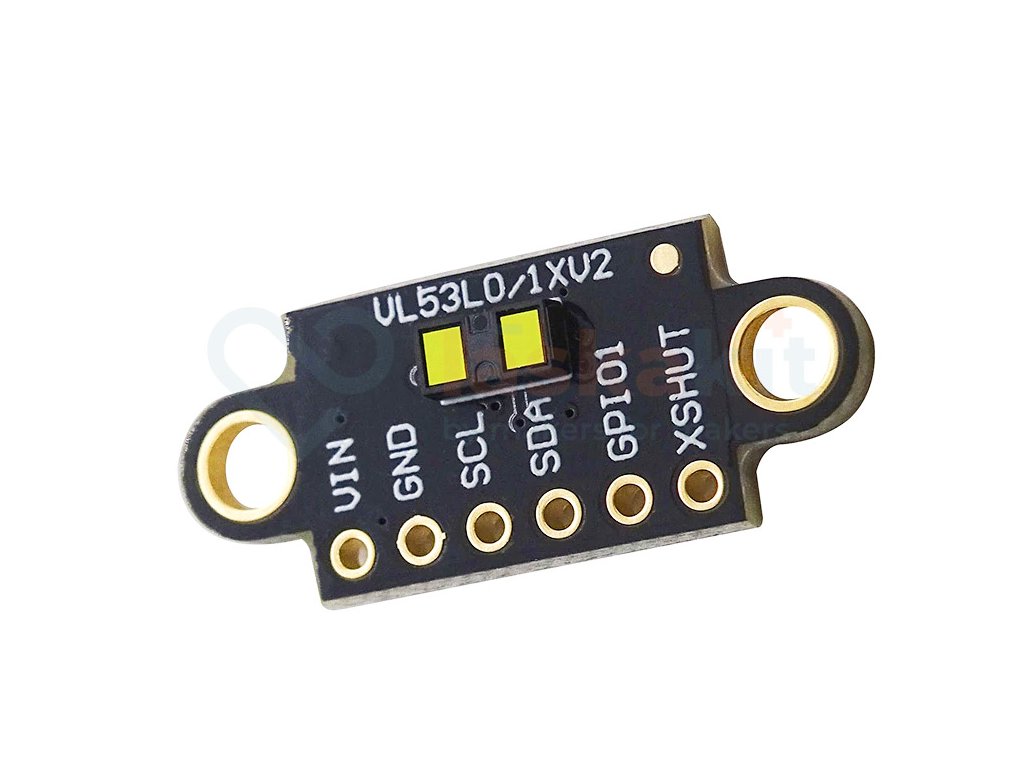

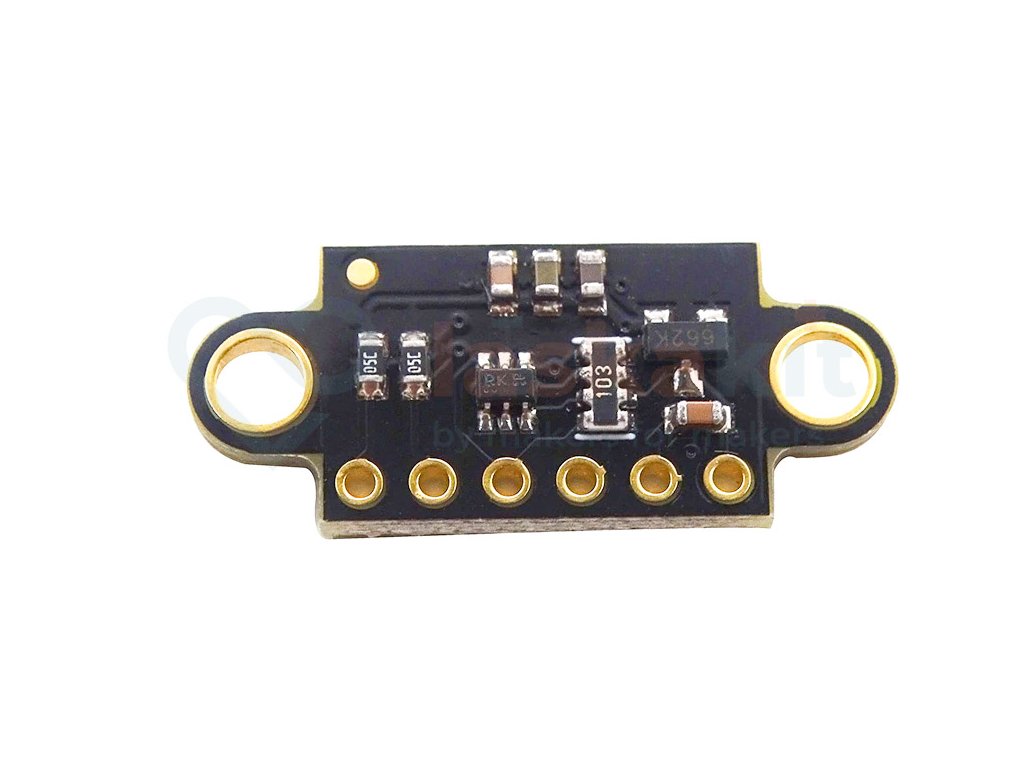

Laser distance sensor VL53L1X I2C

Product detailed description

The VL53L1X laser distance sensor from STMicroelectronics is a compact Time-of-Flight (ToF) sensor with an I2C interface. It uses an invisible 940nm laser and direct light flight time measurement, allowing it to measure distance accurately regardless of the target's colour or reflectivity. Unlike older IR sensors, it is not sensitive to ambient light. The sensor offers a programmable field of view (ROI), adjustable range and fast measurement – making it suitable for presence detection, liquid level measurement, object detection on conveyors or as part of robotics.

Specifications:

• Chip: VL53L1X
• Technology: Time-of-Flight (ToF), direct light flight time measurement
• Interface: I2C
• Power supply: 3–5 V DC
• I2C level: 2.8–5 V
• Measuring range: up to 400 cm
• Measurement time: < 33 ms
• Accuracy: 1 mm
• Field of View (FoV): 27° (programmable region of interest – ROI)
• Laser wavelength: 940 nm (Class 1)
• Module dimensions: 29.5 × 22 mm
• Compatibility: Arduino, ESP32, Raspberry Pi and others (I2C)

Package contents:

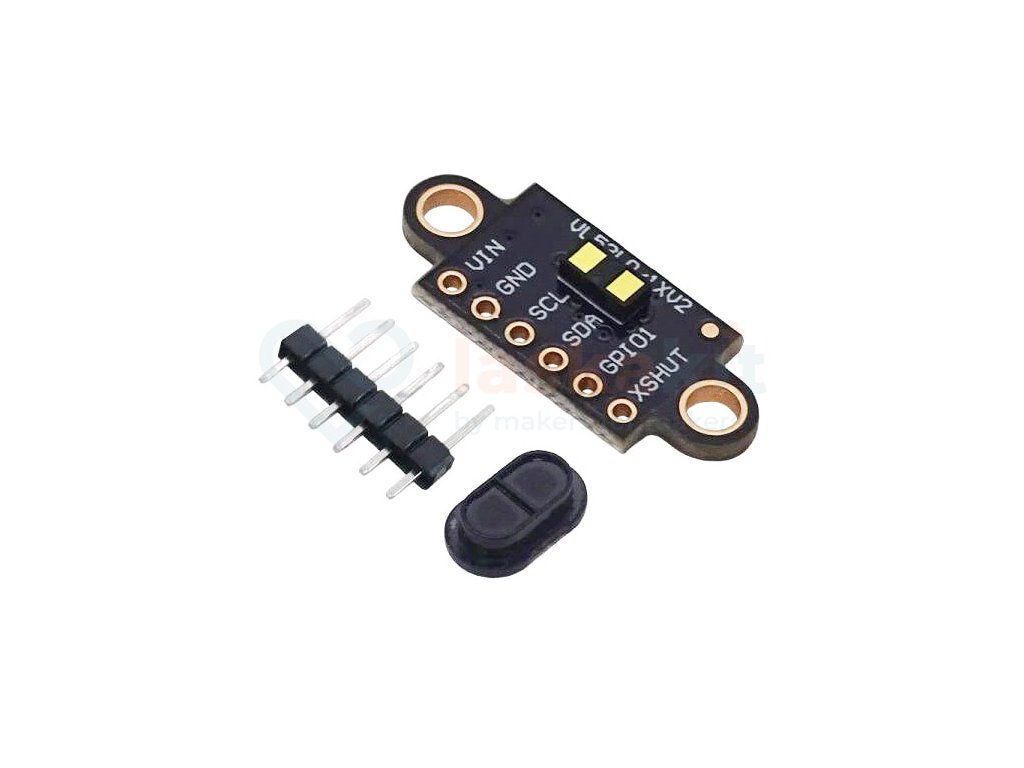

• 1× VL53L1X I2C Laser Distance Sensor

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustrative purposes only and may sometimes differ from the actual appearance of the item. However, this does not change their basic characteristics.
