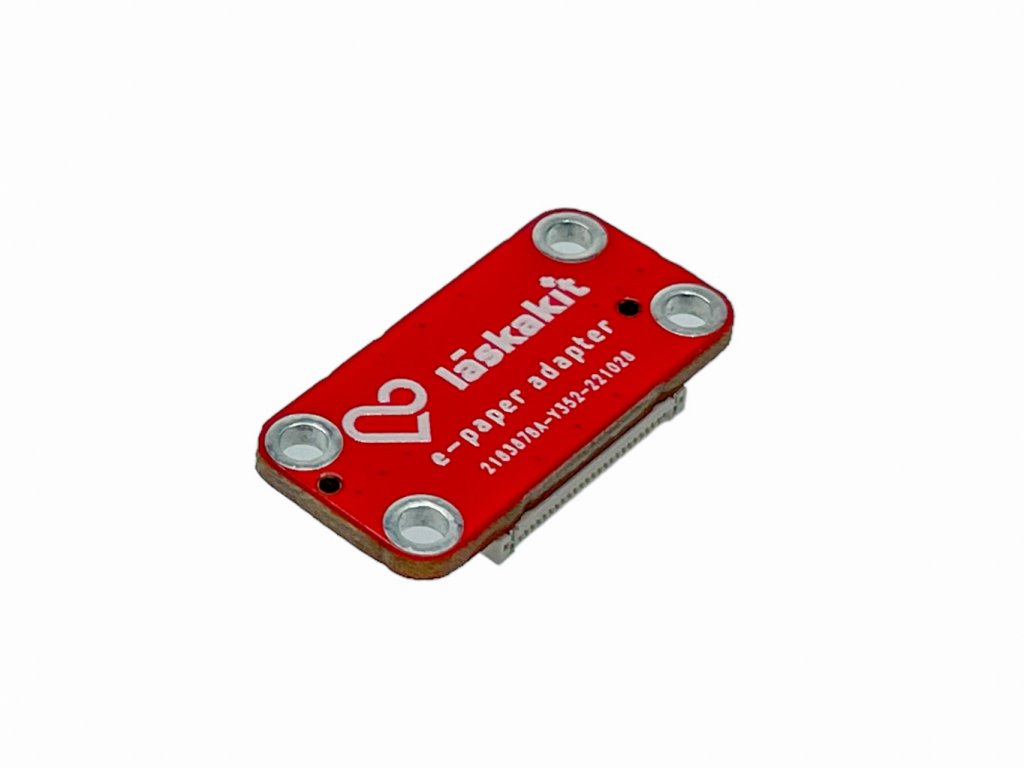

LaskaKit e-Paper FFC FPC 24pin adapter

Product detailed description

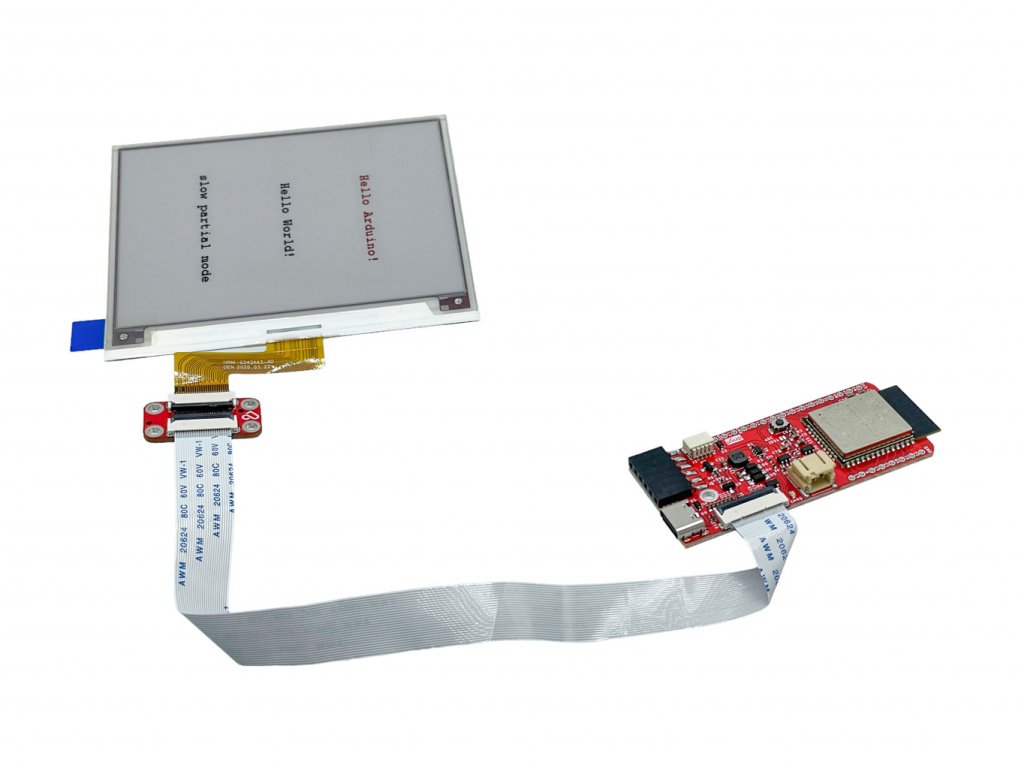

The LaskaKit e-Paper FFC/FPC 24pin adapter is designed for easy connection of two flexible flat cables (FFC/FPC) with 24 pins. It allows you to connect two modules or extend the cabling between the e-Paper display and the controller without the need for soldering.

Specifications:

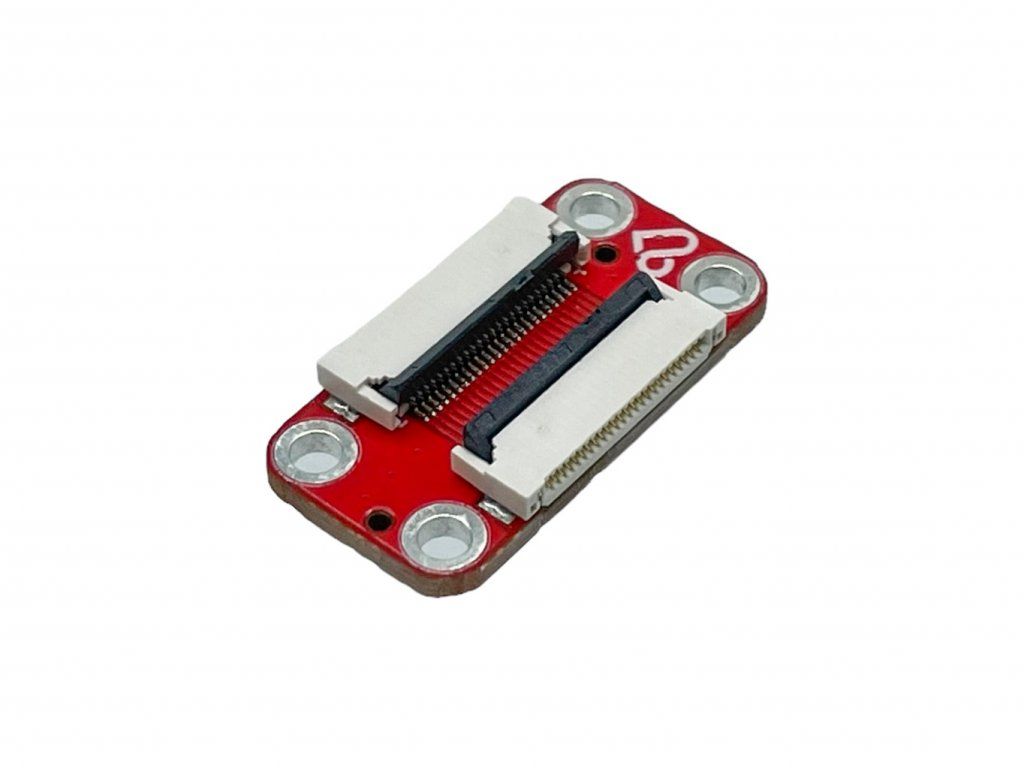

• Connectors: 2 × 24pin FFC/FPC socket
• Pin pitch: 0.5 mm
• Connector type: push-pull sockets for easy insertion and securing of the cable
• Supported displays: e-Paper modules with standard 24pin FFC/FPC cable
• Material: FR4 PCB with high-quality connectors
• Dimensions: compact design suitable for integration
• Dimensions: 26.67x13.34mm
• Hole spacing: 21.59x8.26mm
• Weight: approx. 3g

Included in delivery:

• 1pc LaskaKit e-Paper FFC FPC 24pin adapter

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
• Development board, cable and display not included
