LaskaKit Live-11.6 E-paper kit with WiFi for ”Live Image” V2

Product detailed description

Build your own "Živý obraz"! Get a smart e-Paper display that communicates with the Živý obraz server via Wi-Fi to get almost any information you want. The kit also includes a powerful battery that can last from weeks to years of use, depending on the refresh frequency.

The construction is simple and can be recommended even for beginners. No soldering required. Simply connect the e-Paper via the adapter and shielded cable to the development board, move everything into the frame, which you can either 3D print yourself or order from us, screw it together, connect the battery, flash the firmware, connect to Wi-Fi, and you're up and running. You can then send the content you want to display to the ePaper via the service.

What's New in Version V2:

• Added battery power switch
• STH40 temperature and humidity sensor

What is Living Picture:

A web-based service that greatly simplifies the process of getting information onto the e-Paper frame. You can simply upload your own image to the station, have the image retrieved from any URL available on the Internet, create a gallery of images to display them in sequence, use the existing smart gallery to get a calendar including an optional weather forecast, or create a Screen. The Screen is a custom overview page that you can design on the Living Picture server completely to your liking. You can place values on it, which you can also send to the server from your own home automation or get them from your current account in the TMEP service. There are really many options. More information can be found on the service website https://zivyobraz.eu/.

Upload FW conveniently in your browser:

• Our own FW
• FW from zivyobraz.eu

The product is available in multiple variants:

• 1️⃣ Display – choose between the Black-White and Red-Yellow-Black-White versions
• 2️⃣ Case – choose the colour of the 3D printed case, or the option I will print it myself
• 3️⃣ Assembly – decide whether you want the product delivered as a kit (DIY) or assembled and programmed

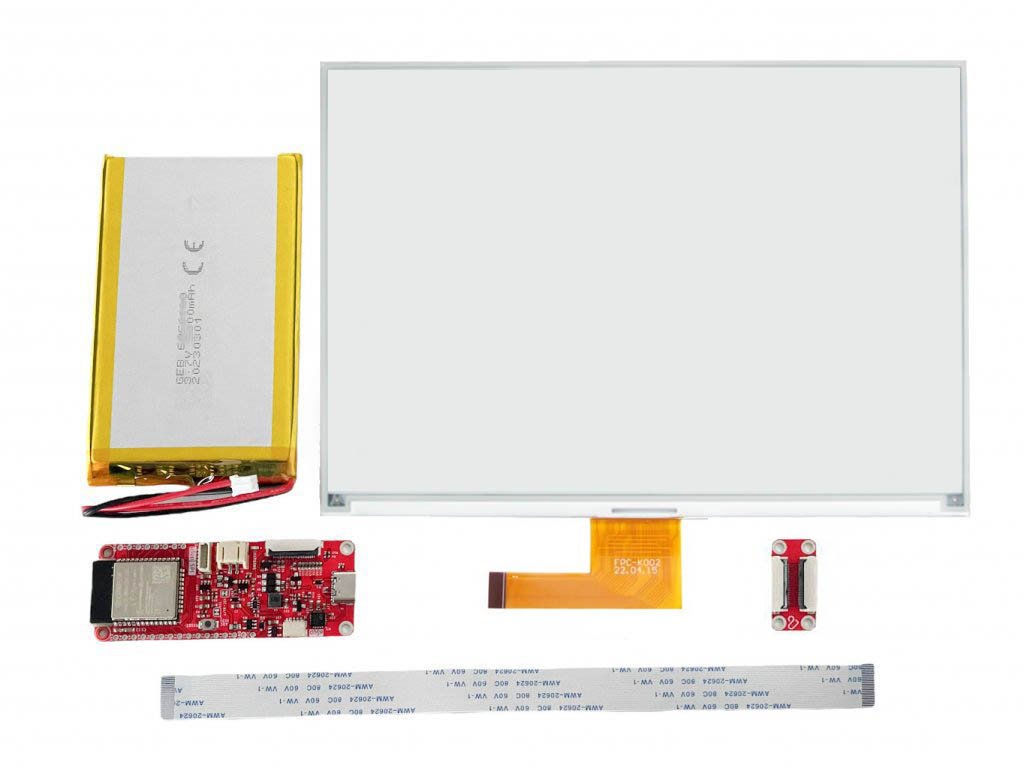

Parts list:

• 1pc LaskaKit ESPink ESP32 e-Paper PCB antenna
• 1pc ePaper display to choose from:
  • Black-White: Good Display GDEY116T91 11.6" 960x640 (fast update, 5s).
  • Red-Yellow-Black-White: Good Display GDEY116F51 11.6" 960x640 (slow update, 20s)
• 1pc LaskaKit e-Paper FFC FPC 24pin adapter
• 1pc FFC FPC unshielded flexible cable AWM 20624 80C 60V 0.5mm 24pin, 20cm
• 1pc LaskaKit LiPol Battery 8000mAh
• 1pc LaskaKit SHT40 Air temperature and humidity sensor
• 1pc μQuick JST-SH 4-pin cable - 20cm
• 1pc LaskaKit JST-PH-2 connector with cable 5cm
• 1 pc LaskaKit Battery Power Switch
• 10pcs Screw for thermoplastics with lens head and cross groove 2,2x8 BN 82428 steel
• 4 pcs Screw for thermoplastics with lens head and cross slot 2.2x5BN 82428 steel

Package Contents:

• 1pc LaskaKit Live-11.6 E-paper kit with WiFi for "Living Picture" V2

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustrative purposes only and may sometimes differ from the actual appearance of the item. However, this does not change their basic properties.
• 3D Printed box is not included, you can print it or buy it separately.
