LaskaKit Live-7.4 E-paper kit with WiFi for ” Living Image”

Product detailed description

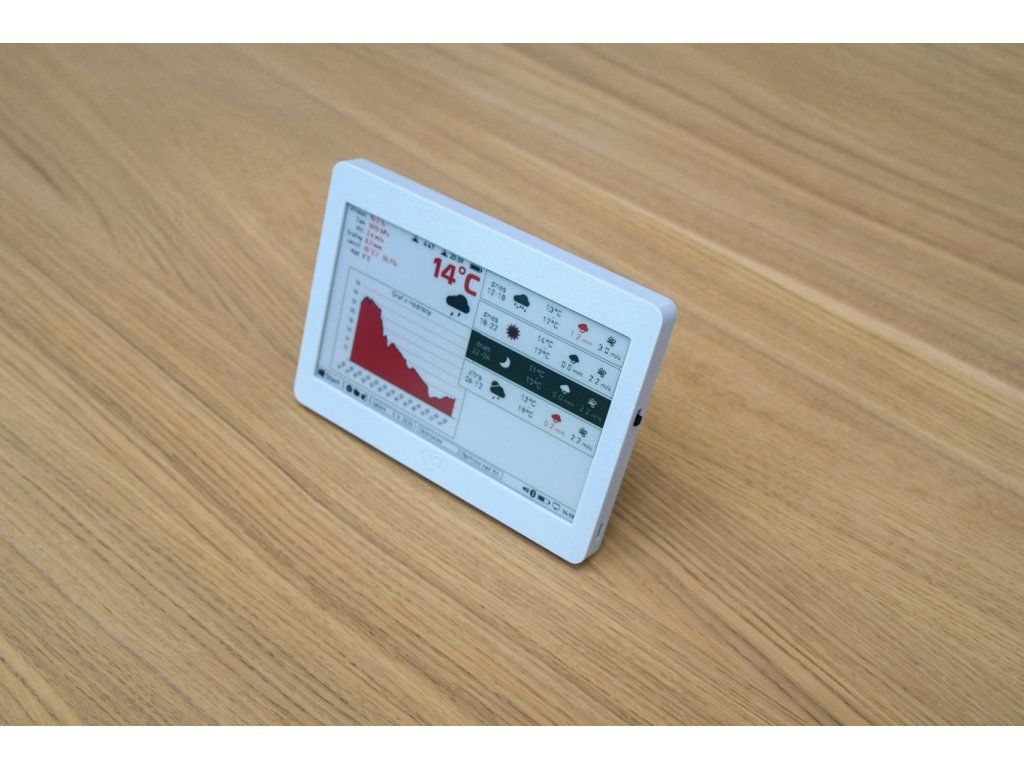

Build your own "Live Image"! Get a smart e-Paper display that communicates with the Living Picture server via Wi-Fi to get almost any information you want. The kit also includes a powerful battery that can last from weeks to years of use, depending on the refresh frequency.

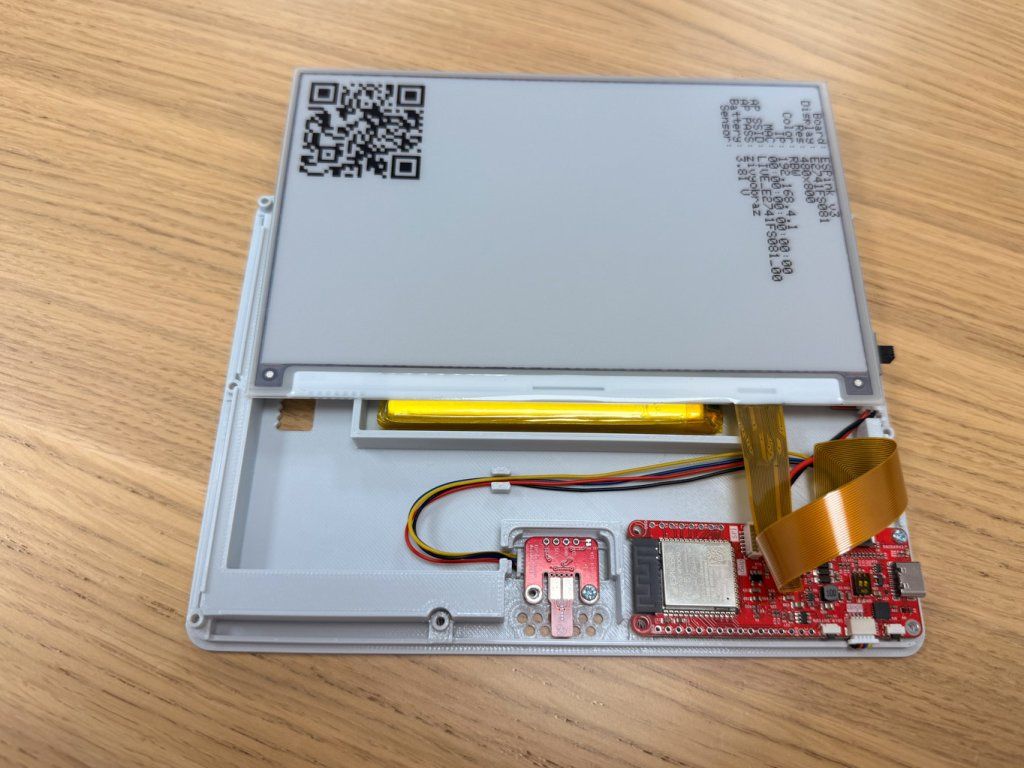

The construction is simple and can be recommended even for beginners. No soldering required. Simply connect the e-Paper via the adapter and shielded cable to the development board, move everything into the frame, which you can either 3D print yourself or order from us, screw it together, connect the battery, flash the firmware, connect to Wi-Fi, and you're up and running. You can then send the content you want to display to the ePaper via the service.

What is Live Image:

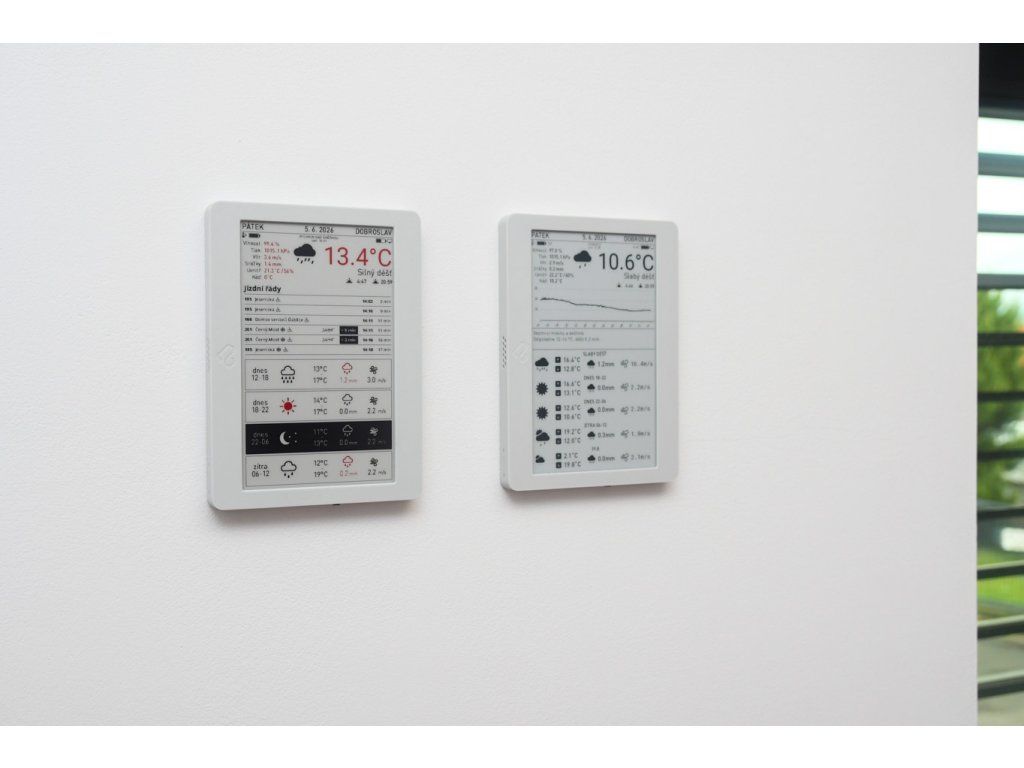

A web-based service that greatly simplifies the process of getting information onto the e-Paper frame. You can simply upload your own image to the station, have the image retrieved from any URL available on the Internet, create a gallery of images to display them in sequence, use the existing smart gallery to get a calendar including an optional weather forecast, or create a Screen. The Screen is a custom overview page that you can design on the Live Image server completely to your liking. You can place values on it, which you can also send to the server from your own home automation or get them from your current account in the TMEP service. There are really many options. More information can be found on the service website https://zivyobraz.eu/.

Upload FW conveniently in your browser:

• Our own FW
• FW from zivyobraz.eu ( Not yet supported)

The product is available in multiple variants:

• 1️⃣ Display – choose between Black & White and Red-Black-White

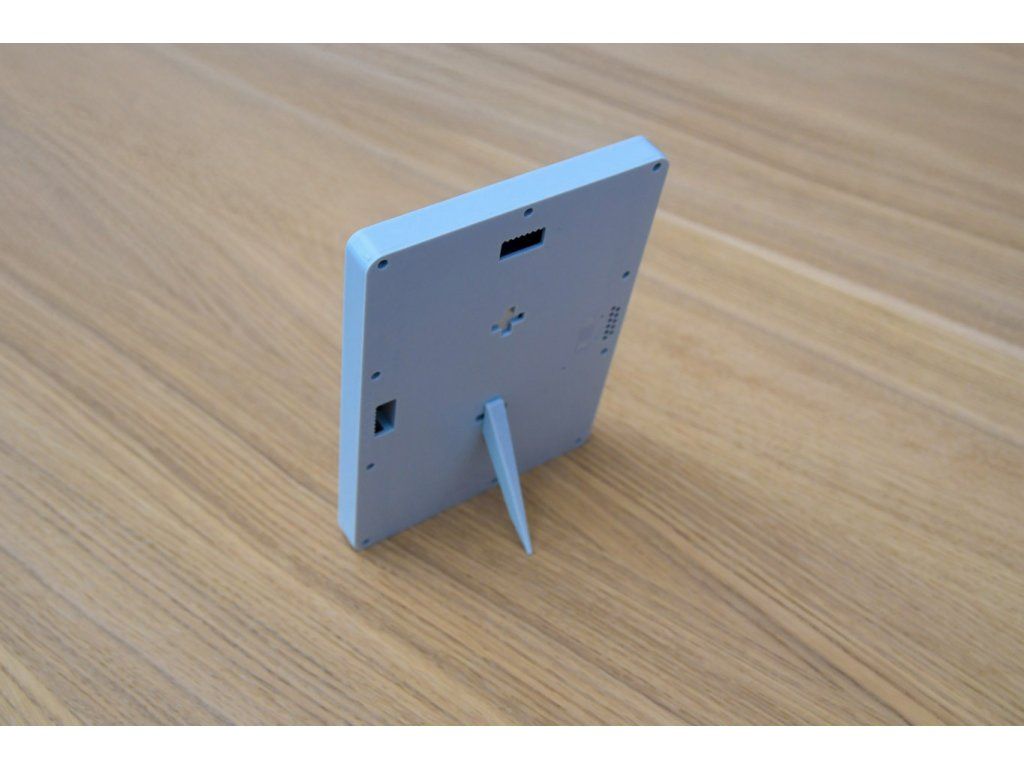

• 2️⃣ Case – choose the colour of the 3D printed case, or the Print it myself option
• 3️⃣ Assembly – decide whether you want the product delivered as a kit (DIY) or assembled and programmed

Parts list:

• 1pc LaskaKit ESPink ESP32 e-Paper PCB antenna (jumper on the bottom side must be connected)
• 1pc ePaper display to choose from:
  • Black & White: Good Display E2741CS0B2 7.4" 800x480 (fast update, 4s)
  • Red-Black-White: Good Display E2741FS081 7.4" 800x480 (slow update, 32s)
• 1pc LaskaKit LiPol Battery 6000mAh
• 1pc LaskaKit SHT40 Air temperature and humidity sensor
• 1pc μQuick JST-SH 4-pin cable - 20cm
• 1pc LaskaKit JST-PH-2 connector with cable 5cm
• 1 pc LaskaKit Battery Power Switch
• 10pcs Screw for thermoplastics with lens head and cross groove 2,2x8 BN 82428 steel
• 4 pcs Screw for thermoplastics with lens head and cross slot 2.2x5BN 82428 steel

Package Contents:

• 1pc LaskaKit Live-7.4 E-paper kit with WiFi for "Live Image"

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change their basic properties.
