LaskaKit XC6220 Stabilizer Module with Low Iq 3.4-6V 3.3V/1A

Product detailed description

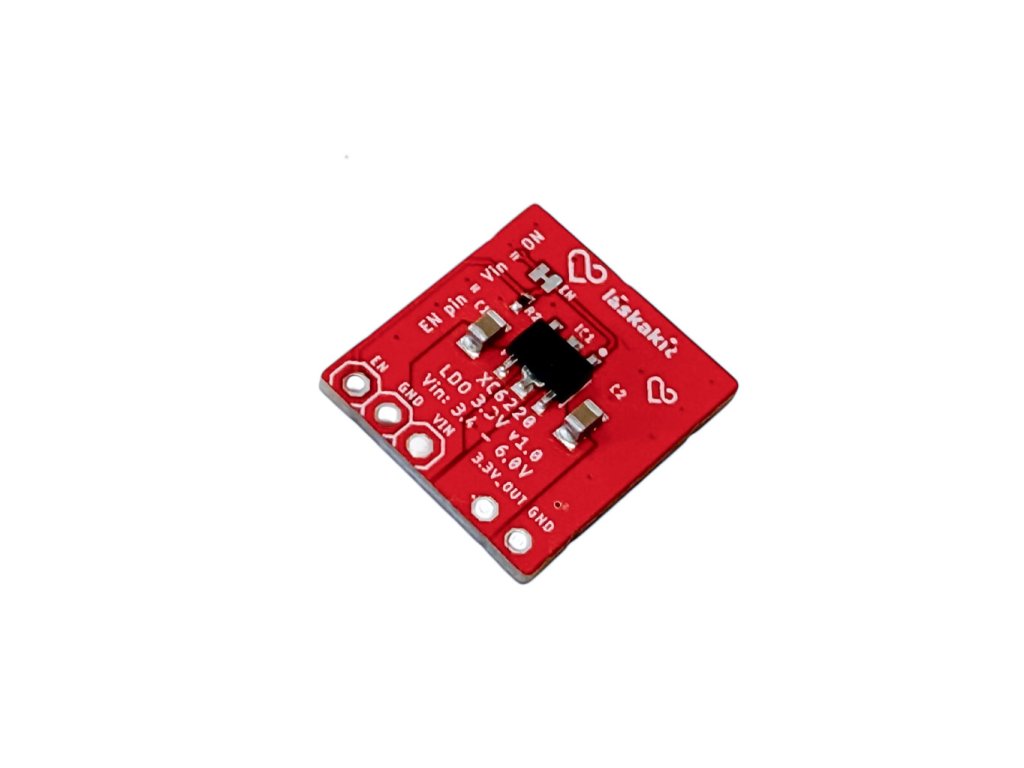

A small module with an LDO voltage regulator based on the XC6220B circuit, designed for stabilisation at a fixed output voltage of 3.3 V. The module is designed with a large copper area on the underside for better heat dissipation and the possibility of mounting an aluminium heatsink. Thanks to its compact dimensions, low quiescent current and simple connection, it is ideal for powering microcontrollers, sensors and other peripherals operating at 3.3 V.

Specifications:

• Integrated circuit: XC6220B
• Input voltage: 3.4–6.0 V
• Output voltage: 3.3 V (fixed)
• Maximum output current: up to 1 A (with sufficient cooling)
• Dropout voltage: typically ~0.2 V at 500 mA
• Quiescent current (Iq):
  • Power Save mode ~8 µA (Vin=Vce=Vout(t)+1.0V Iout=0.1mA )
  • High Speed mode ~53 µA (Vin=Vce=Vout(t)+1.0V Iout=10mA )
• Protection: against overheating and short circuit
• Capacitors: 10 µF input / 10 µF output
• Terminals: VIN, VOUT, GND, EN (enable pin)

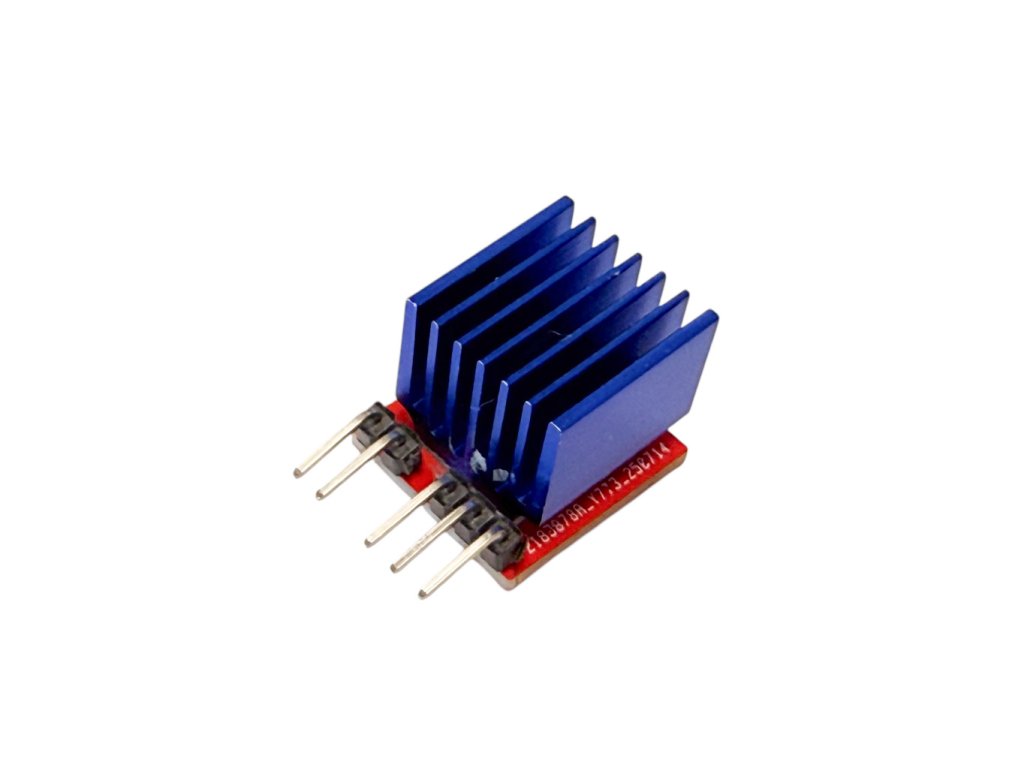

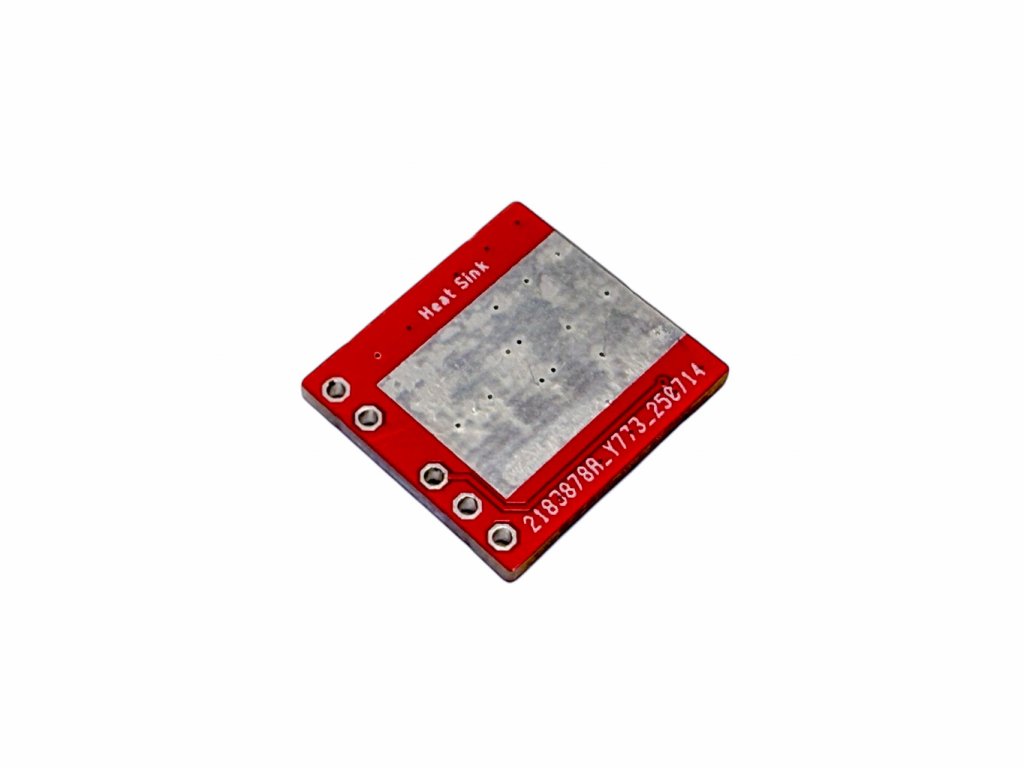

• Large copper area on the underside for heat dissipation

Measurements:

Included in delivery:

• 1pcs LaskaKit XC6220 stabiliser module with low Iq 3.4-6V 3.3V/1A

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product photos correspond to the real product, but in exceptional cases, the colour of the heatsink may vary, for example.
