LaskaKit Arduino MAXI Starter kit, RFID

Product detailed description

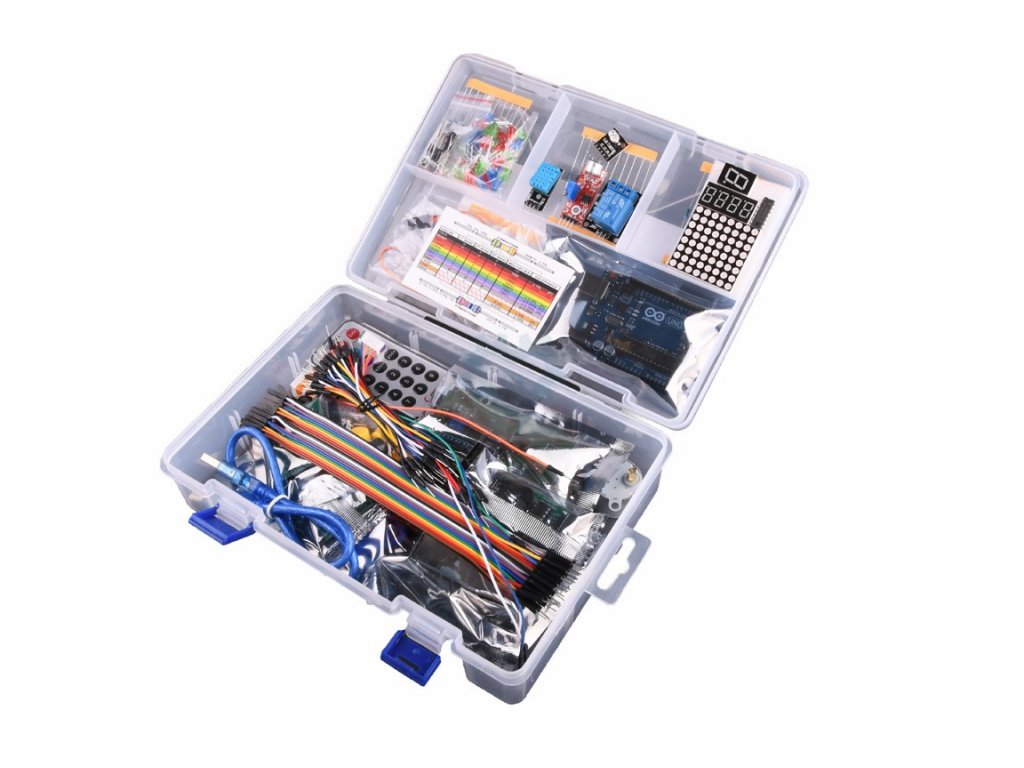

The LaskaKit Arduino MAXI Starter kit is our largest beginner set, featuring an Arduino UNO R3, UNO R4 WiFi or Mega 2560 board and over 30 types of components – from LEDs and buttons to displays, sensors and motors, all the way to an RFID reader. The kit includes a guide with 31 lessons, where you will wire the circuit step by step, upload the program, and understand how each component works. You will start by blinking an LED and gradually progress to a real-time clock, a stepper motor, remote control, or an access system with an RFID card and keypad. All components are stored in a plastic partitioned box, so nothing gets lost.

Specifications:

• Control board (depending on the selected variant):
  • Arduino UNO R3 (clone)
  • Arduino UNO R4 WiFi (clone)
  • Arduino Mega 2560 R3 (clone)
• Manual: in Czech, 31 lessons with principle descriptions, wiring diagrams and completed programs; available for download in the Related Files tab
• Programming: Arduino IDE 2 (Windows, macOS, Linux)
• Required libraries (installation via Library Manager in Arduino IDE):
  • LiquidCrystal I2C (Frank de Brabander)
  • Rtc by Makuna
  • DHT sensor library (Adafruit)
  • IRremote (version 4.x)
  • MFRC522
  • Keypad
• Displays:
  • LCD 1602 with I²C converter
  • 4-digit seven-segment display
  • single-digit seven-segment display
  • 8×8 LED matrix
• Sensors:
  • DHT11 temperature and humidity
  • LM35 temperature
  • flame, sound and water level
  • photoresistors and vibration sensors
• Actuators:
  • 28BYJ-48 stepper motor with ULN2003 driver
  • 9g servo
  • relay module (1 channel)
  • active and passive buzzer
• Controls and inputs:
  • 4×4 matrix keypad
  • PS2 joystick
  • HX1838 IR receiver and remote control
  • buttons and potentiometer
• RFID: MFRC522 reader (13.56 MHz), chip card and key fob
• Other circuits: DS1302 real-time clock, 74HC595 shift register, RGB LED
• Package dimensions: approx. 225 × 160 × 60 mm

List of lessons:

1. LED control with a button
2. LED control via PWM
3. LED flowing stream
4. Interactive flowing LED lights
5. I²C bus scanner
6. I²C LCD display
7. Buzzer
8. Shock sensor
9. Quiz buzzer
10. Serial monitor
11. Photoresistor
12. Sound control with light
13. Flame sensor
14. Voltmeter
15. Sound sensor
16. Water level sensor
17. LM35 temperature sensor
18. Seven-segment display
19. Stopwatch – 4-digit seven-segment display
20. 8×8 LED matrix
21. RGB LEDs
22. Seven-segment display control with 74HC595
23. Real time clock
24. Temperature and humidity sensor DHT11
25. Relay module
26. Stepper motor
27. Servo
28. PS2 joystick
29. Infrared receiver
30. RFID entry protection system
31. Input protection system with password

Important wiring notice:

• The RFID reader comes with un-soldered pin headers, which you will need to solder. Other modules have pins already soldered. If you prefer not to solder, please let us know in the order notes and we will solder them for you.
• Power the RFID reader only from the 3.3V pin; 5V voltage will destroy it.
• If the LCD display lights up but does not show anything, adjust the contrast using the trimmer on the back of the adapter. You can find the display address (usually 0x27, sometimes 0x3F) using the program from lesson 5.
• Seven-segment displays may have a common cathode (CC) or a common anode (CA). The manual in lesson 18 explains how to determine the type and what to change in the program.
• Resistors are marked with colour bands; their values can be found in the introduction of the manual.
• With the UNO R4 WiFi board, the Arduino IDE will display a warning for the LiquidCrystal I2C library stating that it is intended for the AVR architecture. You can ignore this warning; the library works correctly.

Package contents:

• 1× Arduino control board (according to chosen variant, clone)
• 1x USB cable
• 1× breadboard (830 points)
• 1× set of jumper wires for breadboard
• 10× Dupont jumper wires male–female (20 cm)
• 15× 5 mm LEDs (5× red, 5× blue, 5× yellow)
• 1× RGB LED
• 18× resistors (8× 220 Ω, 5× 1 kΩ, 5× 10 kΩ)
• 1× 50 kΩ potentiometer
• 4× push button with cap
• 1× active buzzer 5 V
• 1× passive buzzer 5 V
• 1× 74HC595 shift register
• 1× HX1838 IR receiver
• 1× IR remote control
• 1× LM35 temperature sensor
• 1× flame sensor
• 2× vibration sensor
• 3× photoresistor
• 1× 4-digit seven-segment display
• 1× single-digit seven-segment display
• 1× 8×8 LED matrix
• 1× ULN2003 stepper motor driver
• 1× 28BYJ-48 stepper motor
• 1× 9 g servo
• 1× LCD 1602 (blue or green) with I²C converter
• 1× PS2 joystick
• 1× DHT11 temperature and humidity sensor
• 1× water level sensor
• 1× sound sensor
• 1× MFRC522 RFID reader 13.56 MHz
• 1× RFID chip card 13.56 MHz
• 1× RFID chip key fob 13.56 MHz
• 1× relay module (1 channel)
• 1× DS1302 real-time clock
• 1× 4×4 matrix keypad
• 1× 9V battery connector cable
• 1× plastic compartment box

Note:

• The new version 3.0 manual (for Arduino IDE 2 and the UNO R4 WiFi board) is currently in beta. Until it is verified, you can also find the original manual and codes for version 2.1 in the Related Files section.
• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustrative purposes only and may sometimes differ from the actual appearance of the item. However, this does not change their basic properties.
