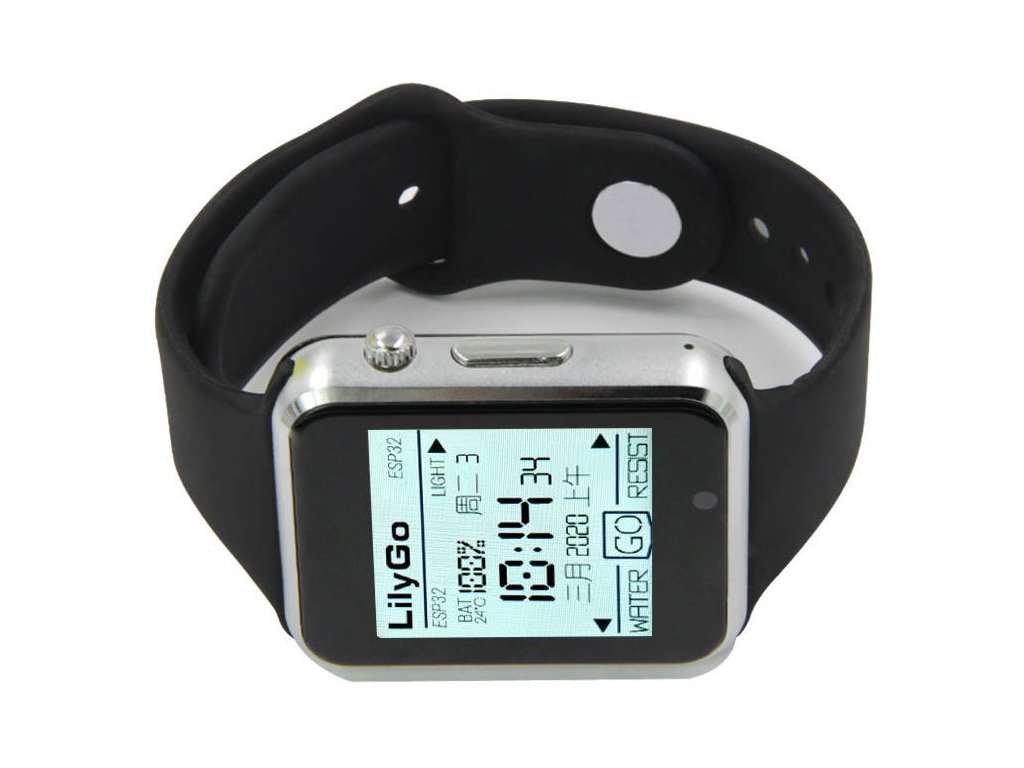

LilyGO T-Watch-2020 V1 ESP32 1.54 Touch display watch
Code: DD100116
Free Shipping
From 100 EUR
30 Days to Return
For Registered
30 Days to Return
For Registered Customers
Free Shipping
For orders from 100 EUR
Customer Care
We handle complaints within 5 days
Quick dispatch
Within 24 hours
Product detailed description
The latest version of a development kit for wearable electronics in the shape and size of a watch. The kit is based on the ESP32 microcontroller clocked at 240MHz, which includes WiFi and Bluetooth. Also included on the kit board is a BMA423 3-axis accelerometer, PCF8563 real-time clock, LED, vibration motor and speaker. The power supply is provided by a 3.7V Li-ON battery, which is charged via a microUSB connector.
FreeRTOS is used as the operating system. Programming is done via the microUSB connector.
Specifications:
| Chipset | ESP32, dual-core MCU, PMU power management AXP202 |
| FLASH | QSPI flash 16MB / PSRAM 8MB |
| SRAM | 520KB |
| PSRAM | 8MB |
| Buttons | 1x Power |
| USB to TTL | CP2104 |
| Oscillator | 40MHz |
| Supply voltage | 2.7V-3.6V |
| Operating temperature range | - 40 ℃ ~ + 85 ℃ |
| Dimensions and weight | 48x40x12.7mm 58.5g |
| Display | 1.54 inch LCD capacitive touch screen ST7789V + FT6236U |
| Integrated sensors | BMA423 3-axis accelerometer, pedometer function, activity recognition/tracking, advanced gesture recognition |
| Real time clock | PCF8563 |
| Power | USB 5V/1A |
| Charging current | Programmable |
| Batteries | 3.7V Li-ON - LS-Q1 |
| Wi-Fi | |
| Standard | FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC(esp32 chip) |
| Protocols | 802.11 b/g/n (802.11n, speed up to150Mbps) A-MPDU and A-MSDU polymerization, support 0.4μS Protection interval |
| Frequency range | 2.4GHz~2.5GHz(2400M~2483.5M) |
| Output power | 22dBm |
| Communication range | 300m |
| Bluetooth | |
| Protocols | Meet bluetooth v4.2BR/EDR and BLE standard |
| Frequency | with -97dBm sensitivity NZIF receiver Class-1, Class-2&Class-3 emitter AFH |
| Audio frequency | CVSD&SBC audio frequency |
| Software Specifications | |
| Wi-Fi Mode | Station/SoftAP/SoftAP+Station/P2P |
| WiFi security | WPA/WPA2/WPA2-Enterprise/WPS |
| Encryption support | AES/RSA/ECC/SHA |
| Firmware upgrade | UART download/OTA (Through network/host to download and write firmware) |
| Software development | Support cloud server development /SDK for user firmware development |
| Network protocols | IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT |
| User configuration | AT + Instruction set, cloud server, android/iOS app |
| OS | FreeRTOS |
Delivery components:
- 1pc LilyGO T-Watch-2020 V1 ESP32 1.54 Touch display watch
- 1pc strap for attaching the watch to the wrist
- 1 pc microUSB cable
Remark:
- This product is not a standalone functional unit and may require professional installation.
- Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
- The included demo software does not have full functionality, it is for demonstration only.
Sources:
Additional parameters
| Category: | Retired |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.105 kg |
| Type: | ESP |
| Logical levels: | 3.3V |
| I/O pins: | Ne |
| PWM pins: | Ne |
| ADC pins: | Ne |
| Frequency: | 40MHz |
| Flash memory: | 16MB |
| SRAM memory: | 8.5MB |
| EEPROM memory: | Ne |
| Connector with battery charger: | Yes |
| Microcontroller: | ESP32 |
| Converter: | CP2104 |
| Bluetooth: | Yes |
| WiFi: | Yes |
| The item has been sold out… | |
4,5
4 ratings
Add a rating
5
4
3
2
1
List of ratings
5
AV
Aleš Verner
Aleš Verner
Bude to hračka na dlouhé zimní večery. Možností využití je jistě spousta. Jen odlaďování programu velmi zpomaluje příliš pomalá kompilace v Arduino IDE. Hlavně to bude chtít ještě lepší optimalizaci spotřeby.
5
TH
Tomáš Haase
Tomáš Haase
hodinky fajn je s nimi zábava. pro skutečné použití to chce hodně pracovat s výdrží té baterie. tedy umět psát kvalitní kód
5
JD
Jan Dytrych
Jan Dytrych
I když jsem nekoupil zde, tak musím popupravit pana Štrunce, když se kód správně napíše, tak lze dosáhnout s připojenou Wifi i 1,5 dne na tu malou baterii :-)
3
MŠ
Miloslav Štrunc
Miloslav Štrunc
Hezký vzhled i HW výbava. Jediné co bych vytknul jako zásadní problém je malá kapacita baterie která se pak projevuje velmi malou výdrží na baterie. Nevydrží na jedno nabití ani jeden den, spíše se výdrž pohybuje v řádu hodin.
