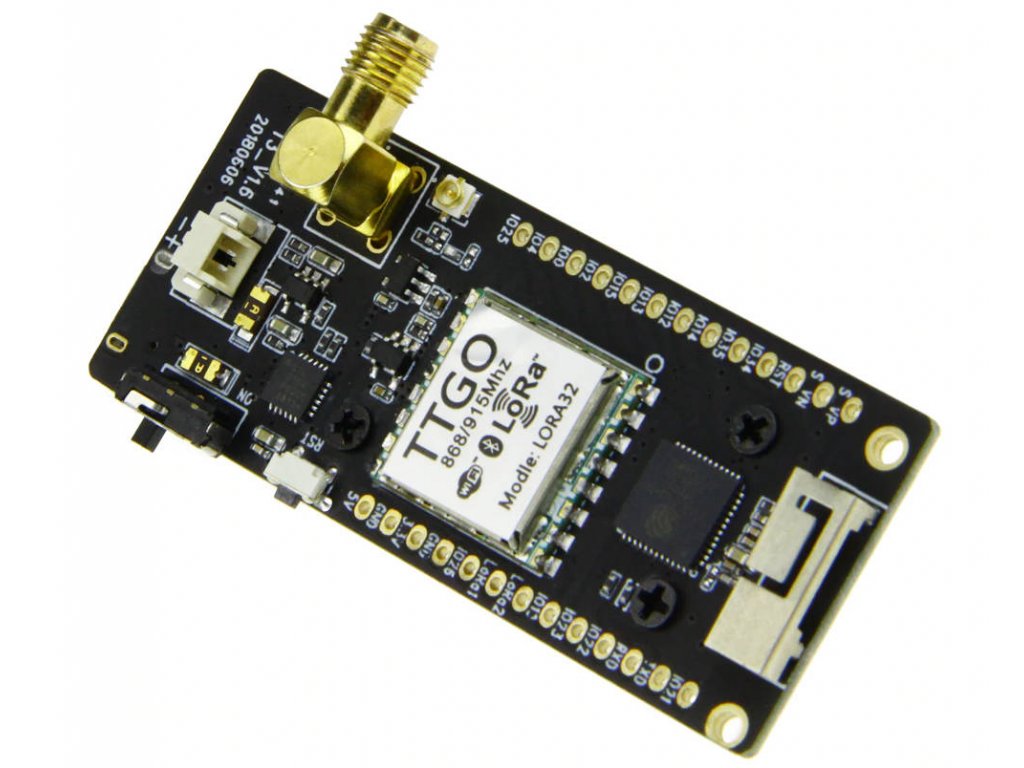

LilyGO TTGO LoRa32 T3_V1.6.1 433Mhz 0.96" SMA WiFi Module

Product detailed description

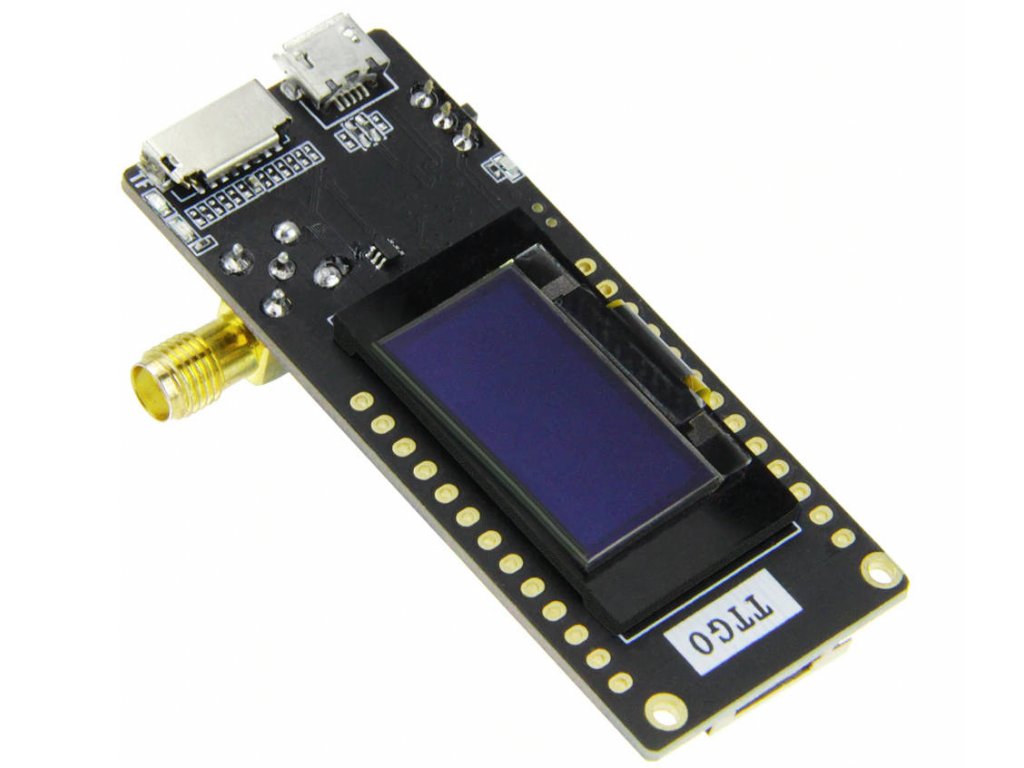

LoRa IoT platform with integrated Bluetooth and WIFI ESP32 moduleand 0.96" OLED display.

Specifications:

• USB-TTL: CH9102F
• Working voltage:8~3.7v
• Acceptable current: 10~14mA
• Transmit current:
  • 120mA@+20dBm
  • 90mA@+17dBm
  • 29mA@+13dBm
• Operating frequency: 433MHz
• Transmit power: +20dBm
• Receive sensitivity:
  • -139dBm@LoRa &62.5Khz&SF=12&146bps
  • -136dBm@LoRa &125Khz&SF=12&293bps
  • -118dBm@LoRa &125Khz&SF=6&9380bps
  • -123dBm@FSK&5Khz&1.2Kbps
• Frequency error: +/-15KHz
• FIFO space：64Byte
• Data rate：
  • 2K~300Kbps@FSK
  • 018K~37.5Kbps@LoRa
• Modulation Mode ：FSK,GFSK,MSK,GMSK,LoRa TM，OOK
• Interface form：SPI
• Sleep current：
  • 2uA@SLEEP
  • 5uA@IDLE
• Operating temperature: -40℃- +85℃
• Digital RSSI function
• Automatic frequency correction
• Automatic gain control
• Fast wake-up and frequency hopping
• Highly configurable data packet handler
• SMA Antenna
• TP4054

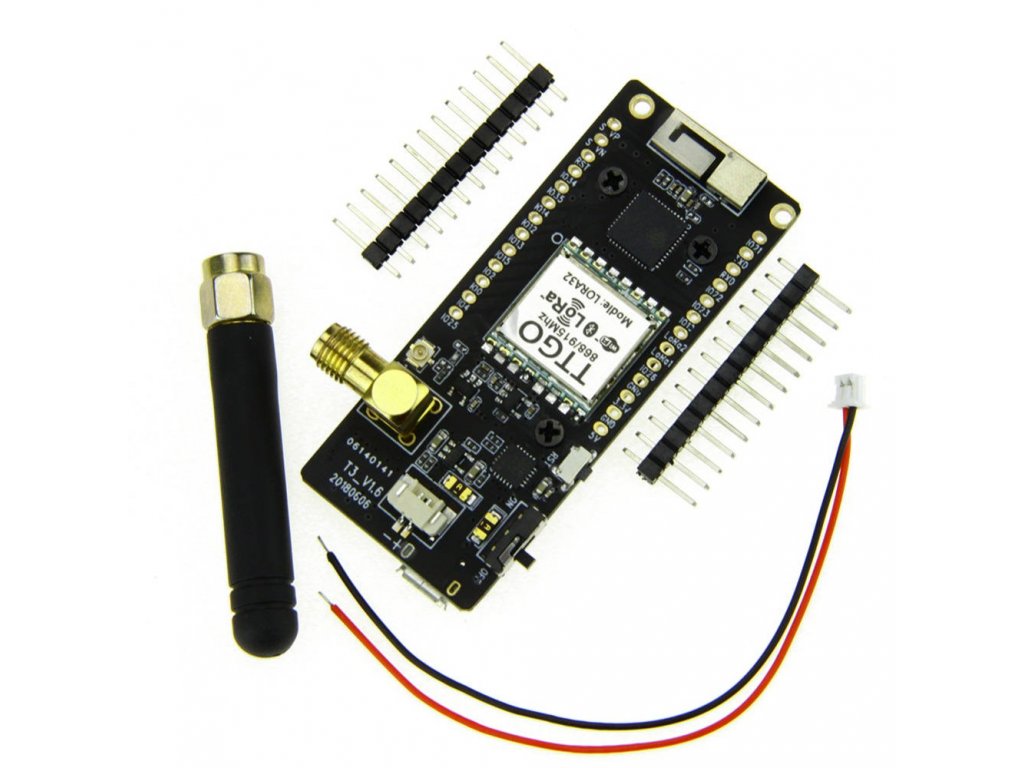

Delivery components:

• 1pc LilyGO TTGO LoRa32 T3_V1.6.1 433Mhz 0.96" SMA WiFi Module
• 1pc Cable with battery connector
• 1pc Antenna

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
