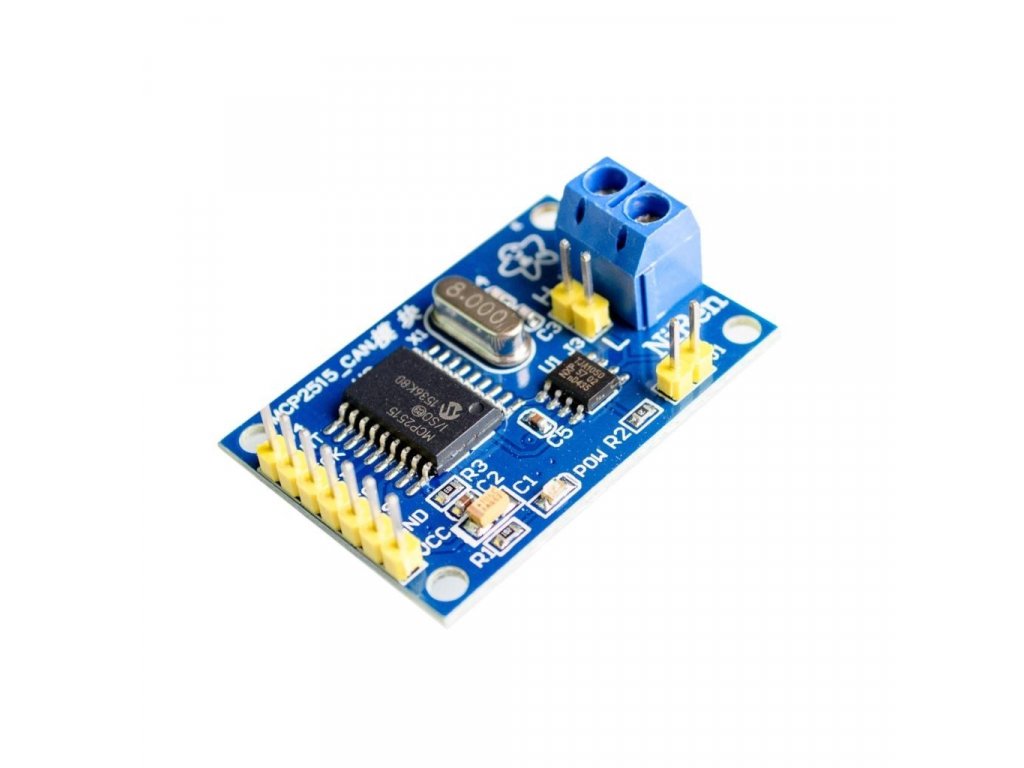

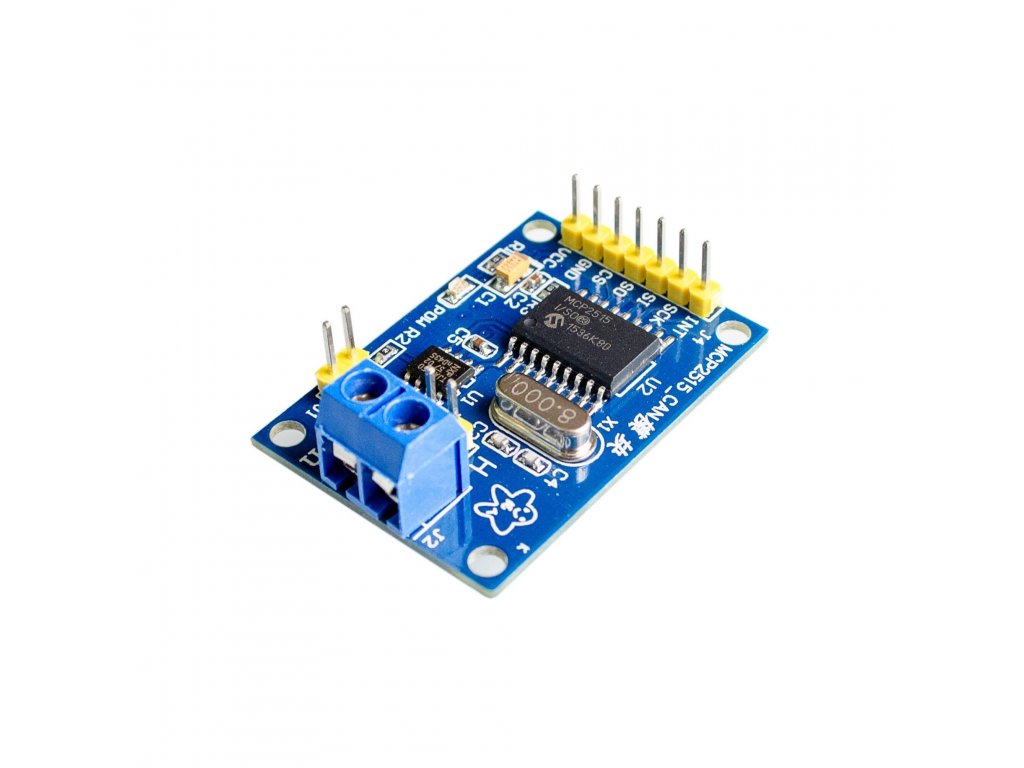

MCP2515 CAN Bus Module TJA1050, 8MHz, SPI

Product detailed description

MCP2515 is a standalone CAN controller from Microchip, supporting the CAN 2.0B specification and enabling communication using standard and extended frames. The module is also equipped with a TJA1050 CAN transceiver and an 8 MHz crystal, making it suitable for connection to microcontrollers via the SPI interface. Integrated masks and filters effectively filter out unwanted messages, thereby reducing the load on the main microcontroller and increasing communication stability.

Specifications:

• Controller: MCP2515 (Microchip)
• CAN specification: 2.0B (standard and extended frames)
• Transceiver: TJA1050
• Crystal: 8 MHz
• Communication speed: up to 1 Mb/s
• Data field: up to 8 bytes
• Interface: SPI
• Number of masks and filters: 2 masks, 6 filters
• Supply Voltage: 5 V DC
• Operating current: typically 5 mA
• Standby current: approx. 1 µA (without LED power)
• Termination resistor: 120 Ω
• Operating temperature: −40 °C to +85 °C
• Dimensions: 44 × 28 mm

Package contents:

• 1x MCP2515 CAN Bus Module with TJA1050 (8 MHz, SPI)

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustrative purposes only and may sometimes differ from the actual appearance of the item. However, this does not change their basic properties.
