Multifunction soil probe, PH, NPK, conductivity, temperature and humidity RS485

Product detailed description

The ZTS-3002-TR-ECTHNPKPH-N01 is a professional multifunctional sensor for measuring soil parameters - moisture, temperature, pH, electrical conductivity (EC) and NPK nutrients. It is ideal for agriculture, horticulture, environmental monitoring, but also for smart irrigation or research projects. The RS485 (Modbus RTU) communication interface makes it easy to integrate into industrial and DIY systems.

Key features:

• Soil temperature measurement
• Accurate moisture measurement (gravimetric)
• Electrical Conductivity (EC) - an indicator of salinity and ion concentration
• Soil pH monitoring - acidity / alkalinity
• Nutrient measurement NPK (nitrogen, phosphorus, potassium) - in mg/kg

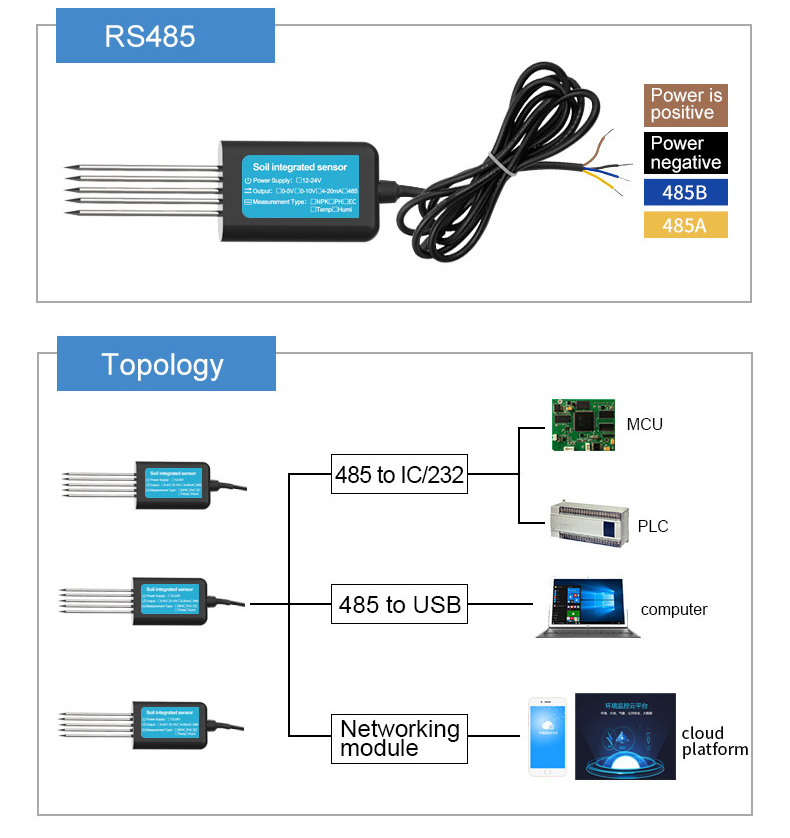

• Communication interface RS485 (Modbus RTU)
• Robust and waterproof construction - suitable for permanent outdoor use

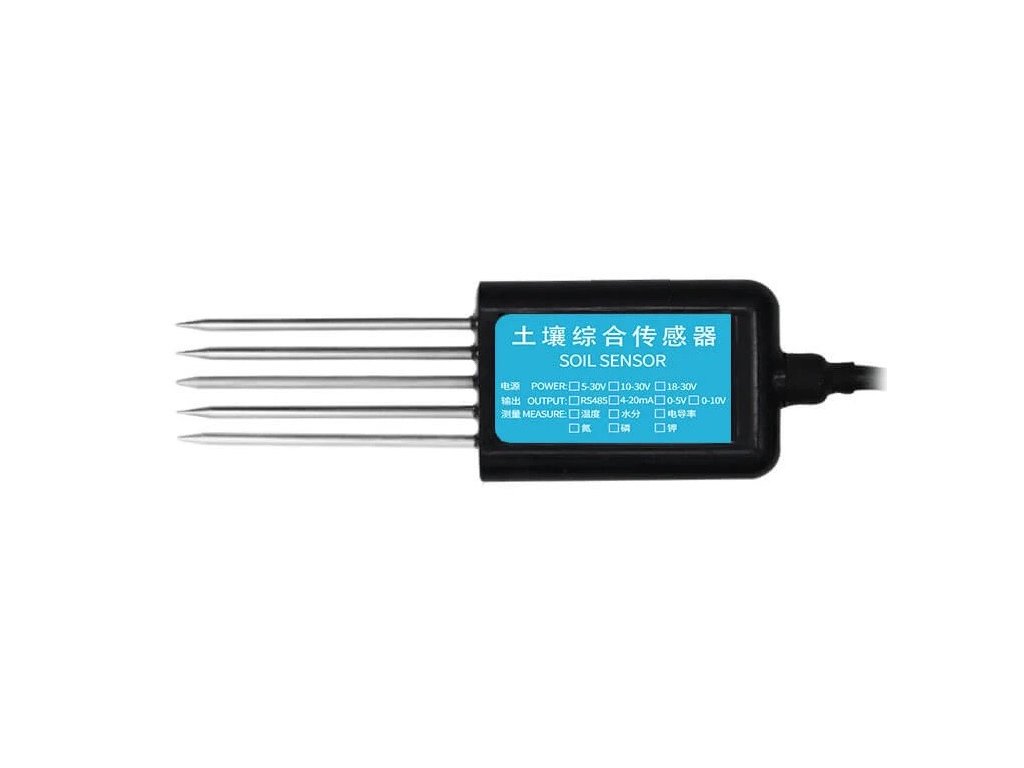

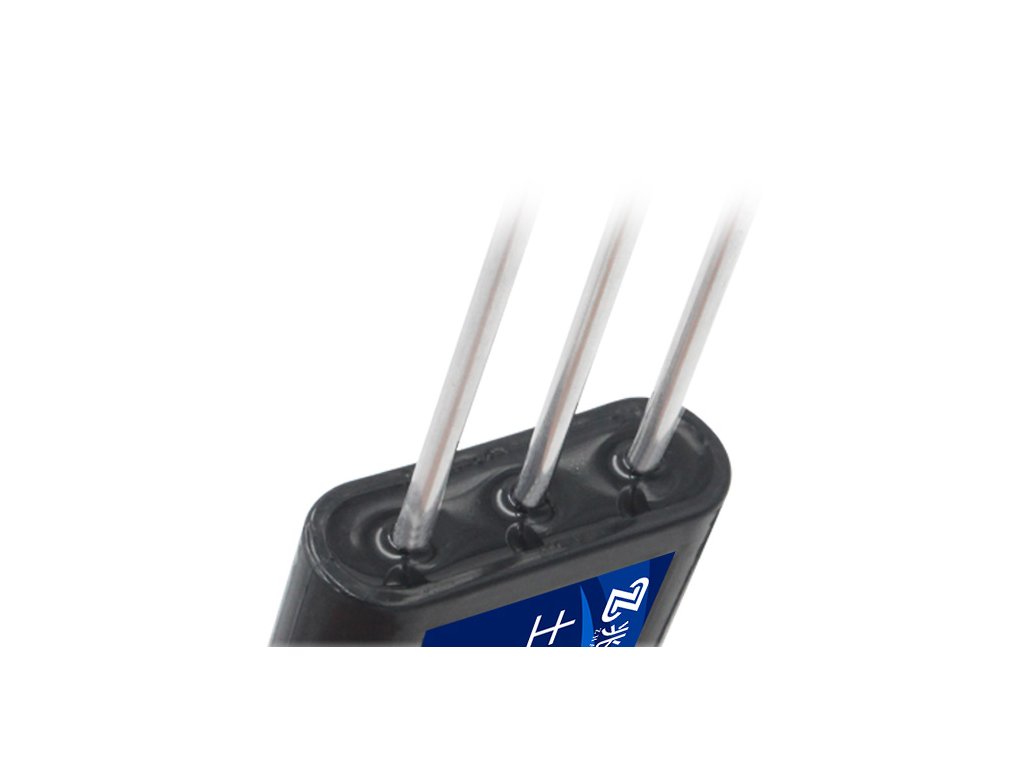

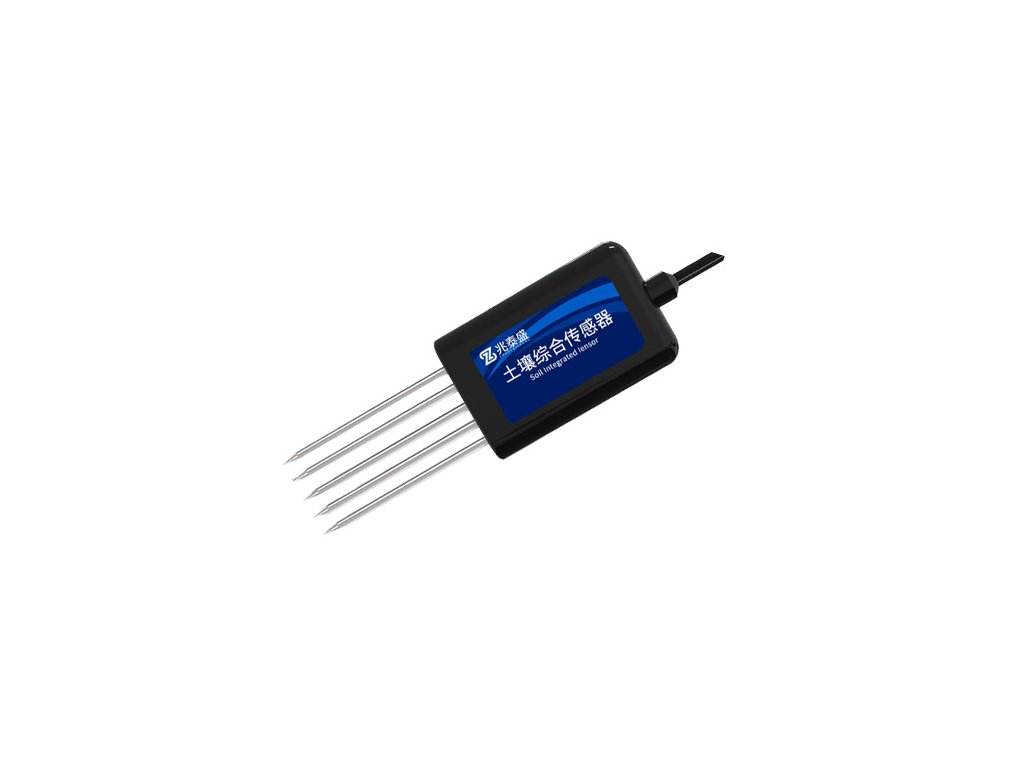

• Compact dimensions, integrated probe with steel tips

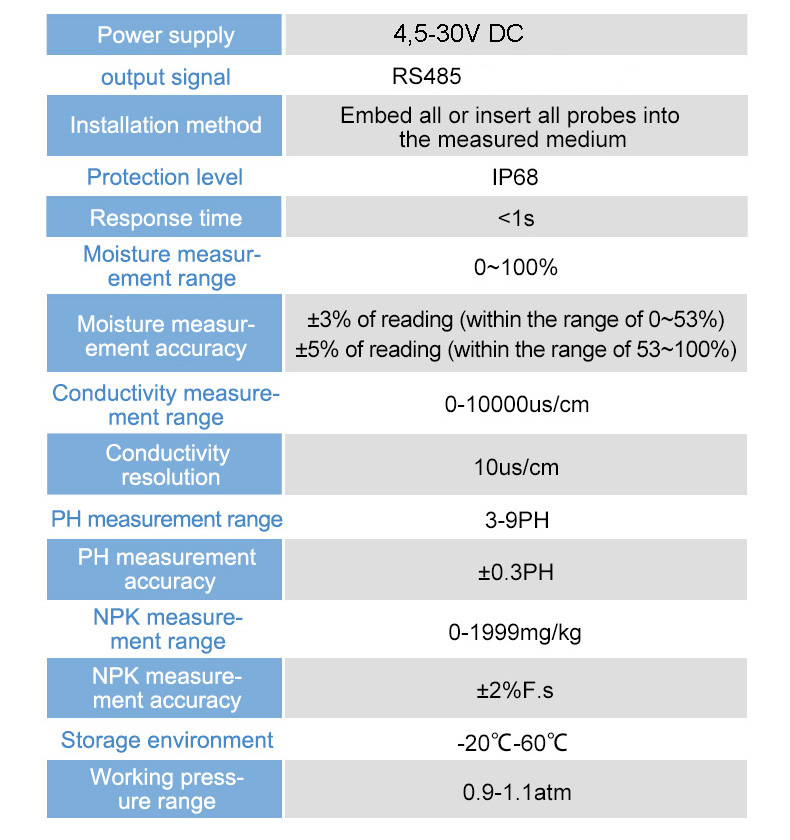

Specifications:

• Model: ZTS-3002-TR-ECTHNPKPH-N01
• Power supply: 4.5-30 V DC
• Interface: RS485, Modbus RTU
• Baud rate: 2400/4800/9600 - default 4800
• Soil temperature: -30 to +70 °C
• Soil moisture: 0–100% RH
• soil pH: 3-9 pH
• Electrical Conductivity (EC): 0-10000 µS/cm
• NPK content: 0-1999 mg/kg for each element
• Probe material: stainless steel + ABS
• Protection: IP67 (waterproof)
• Probe dimensions: approx. 123x45x15 mm (without cable)
• Cable length: usually 1.2 m

nn

Included in delivery:

• 1pc Multifunctional soil probe, PH, NPK, conductivity, temperature and humidity RS485

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
