Power and Data Waterproof USB-C to JST-PH-6 2mm Cable 15cm

Product detailed description

This power and data cable is designed for secure and reliable connection of devices with a JST-PH-6 connector (2.0 mm pitch) and a USB-C port. Thanks to its waterproof design and panel mount connector with TPC fast charging support, it is ideal for demanding applications where moisture or splashing water is a risk. The cable supports both data transfer and power supply and is equipped with CC1/CC2 conductors for proper communication and charging control.

Specifications:

• Connector Type: USB-C (male) → JST-PH-6 (female)
• JST Connector Pitch: 2.0 mm
• Number of Pins: 6
• Cable Length: 15 cm
• Transmission: Power + Data Signals
• Waterproof Rating: Splash-proof
• Temperature resistance: 105℃
• Mounting: Panel

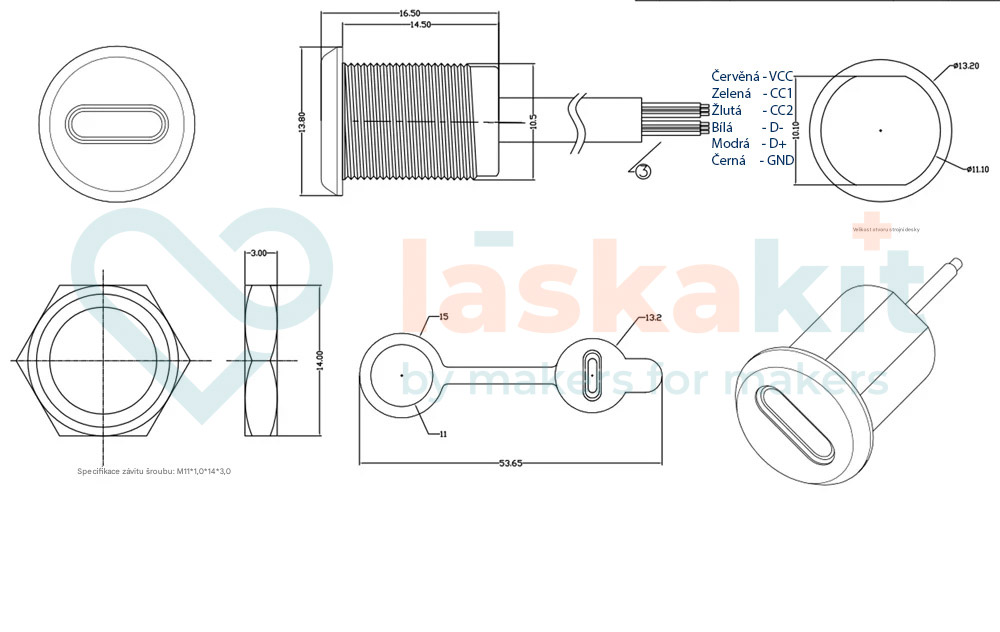

• Wires:
  • Red: VCC
  • Green: CC1
  • Yellow: CC2
  • White: D-
  • Blue: D+
  • Black: GND
• Rated voltage and current: 30V, 3A
• Contact resistance: ≤ 0.03Ω
• Insulation resistance: ≥ 100MΩ (DC 250V)
• Voltage test: 500VAC
• Insertion and extraction force: 5–20N
• Lifespan: 10,000 cycles
• Conductor material: Multi-stranded copper conductors with insulation

Package contents:

• 1× Waterproof power and data cable USB-C to JST-PH-6 2 mm, length 15 cm

Comment:

• This product is not a stand-alone functional unit and may require professional installation.
• Photographs are for illustrative purposes only and the actual appearance may vary slightly.
• Before use, verify the correct wiring to avoid damage to the connected device.
