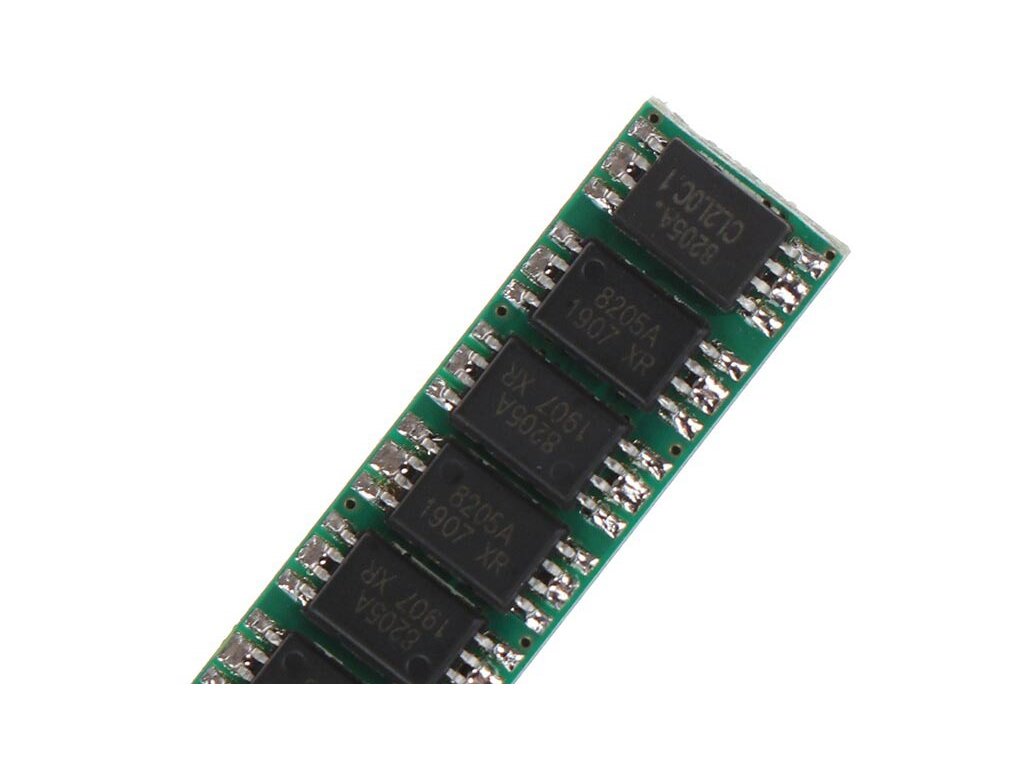

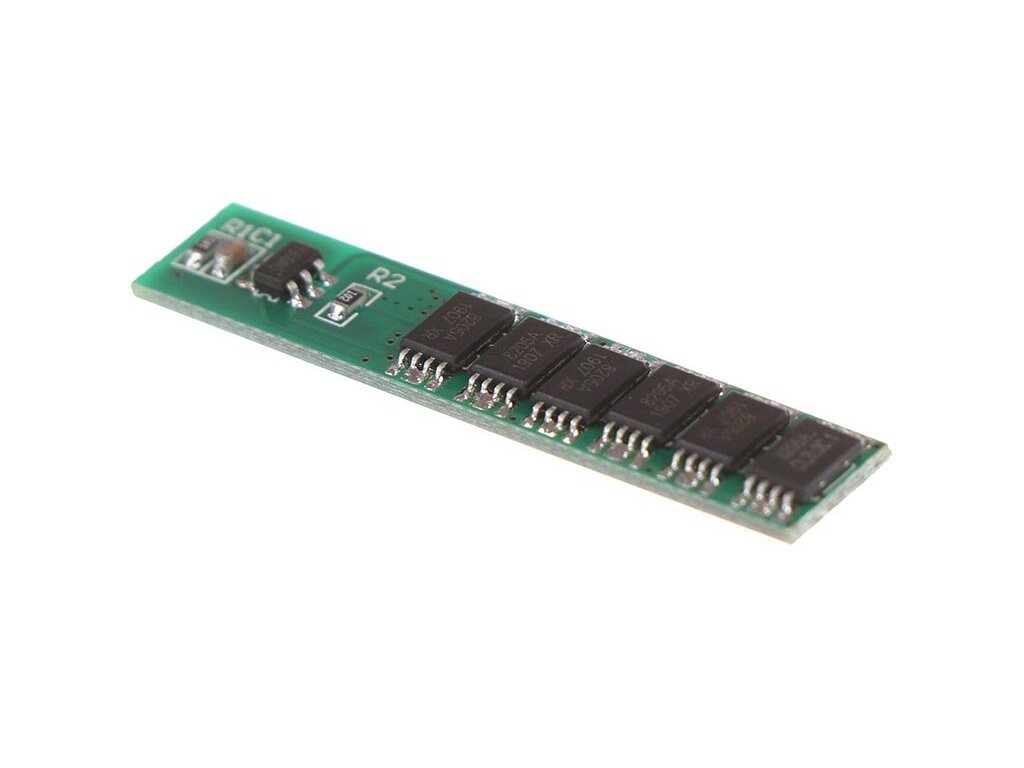

Li-Ion battery protection 1S 12A

Product detailed description

The 1S 12A Li-Ion Battery Protection is a protection module designed for single cell (1S) lithium-ion batteries to ensure safe charging, discharging and operating conditions. These modules are key to protecting batteries from damage and ensuring long life

Specifications:

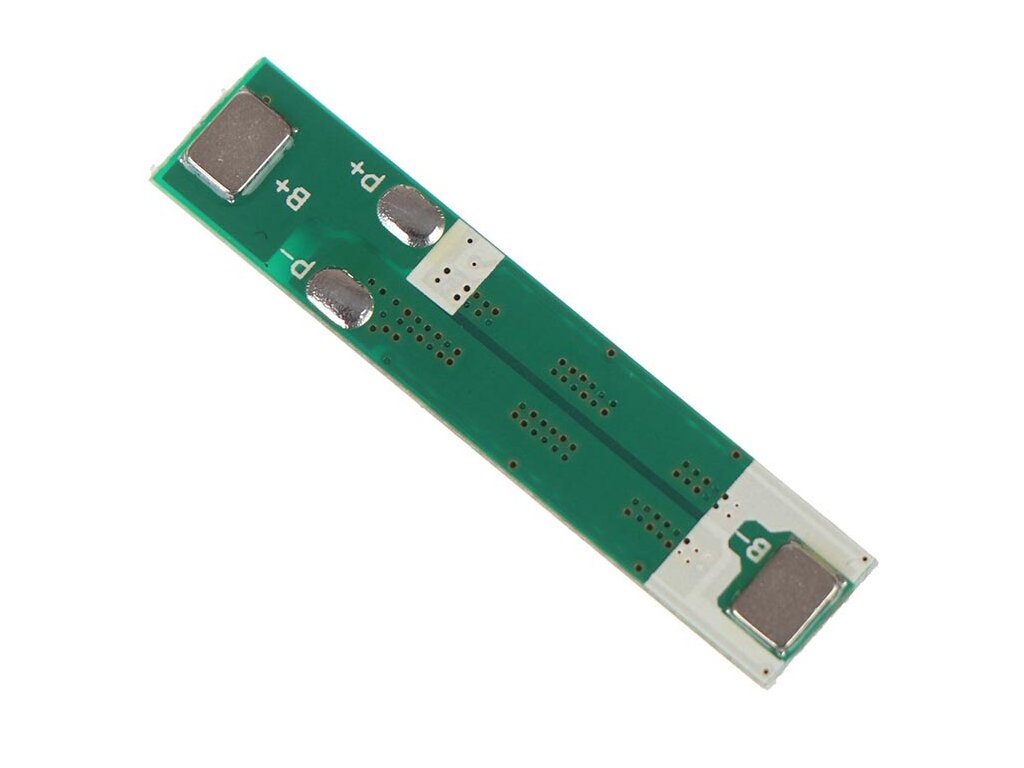

• Connection:
  • B+ -> Plus battery
  • B- -> Minus battery
  • P+ -> Plus charging and output
  • P- -> Minus charging and output
• Protections:
• Short circuit protection
• Overload protection: 15A
• Overcharge protection: 4.25V± 0.05V
• Deep discharge protection: 2.54V
• Overcurrent protection
• Continuous discharge current: <12A
• Operating temperature: -40°C to 50°C
• Dimensions: 35x7.6x2.2mm

• Included in delivery:

  • 1pc Li-Ion battery protection 1S 12A

  Notes:

  • This product is not a standalone functional unit and may require professional installation.
  • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
