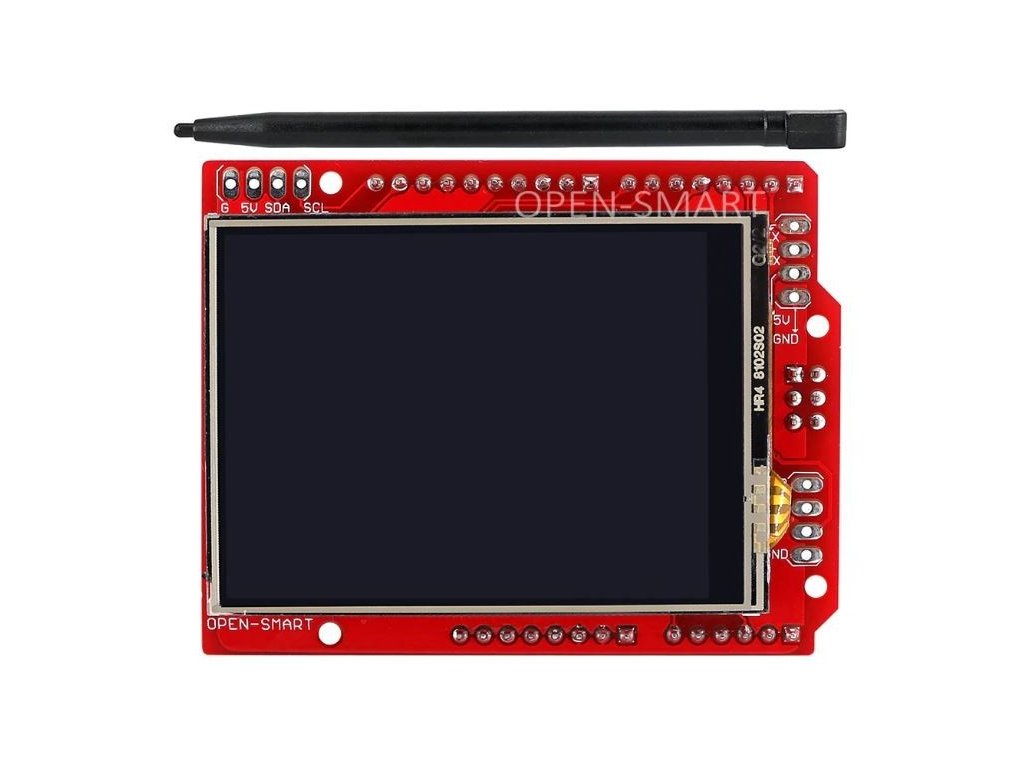

Open-Smart 2.4" 320x240 TFT display, touch screen, Arduino shield

Product detailed description

This amazing display is the best way to add a fairly large, colorful and bright display to a Arduino Uno project.

You can put this shield directly on Arduino Uno or Mega, no converter or adapter is needed.

Specifications:

• Display size: 2.4"
• Touch panel: 4 Wire Resistive Touchscreen
• Integrated SD card slot
• Integrated thermometer LM75 on i2c
• Resolution: 320x240 pixels
• Colors: 65k
• Driver: SPFD5408
• Type of backlight: white LED

Included in delivery:

• 1pc OPEN-SMART 320x240 Color LCD TFT display 2.4", shield Arduino
• 1pc Pen

Remark:

• This product is not a self-contained functional unit and may require professional installation
• The display can be in two variants see pictures 1 and 2.
• After mounting the shield, please check that the pins from the bottom side do not touch the component housings on the bottom plate! This could cause a short circuit and destroy the shield or even the motherboard. Goods damaged in this way are not covered by the warranty!
