AC motor speed controller 220V 6000W dimmer

Product detailed description

The dimmer is designed for switching AC voltage, which can transmit current up to 24A. Triac is used to switch on/off power for lamps or heating elements, it can also be used in fans, pumps, air purifiers. The output voltage can be set in the range of approx. 10-230V.

Specifications:

• Triac: BTA41-600B
• Load: 230VAC/24A (peak 40A)
• Input voltage: 110-230V AC
• Output voltage: 10-230V AC (110-230V)
• Output power:
  • Maximum: 6000W (resistive load)
  • Recommended long-term: 3000W
• Efficiency: 90%
• Dimensions: 130x60x47mm

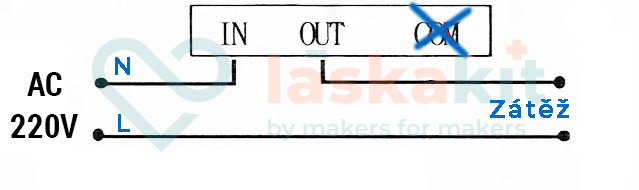

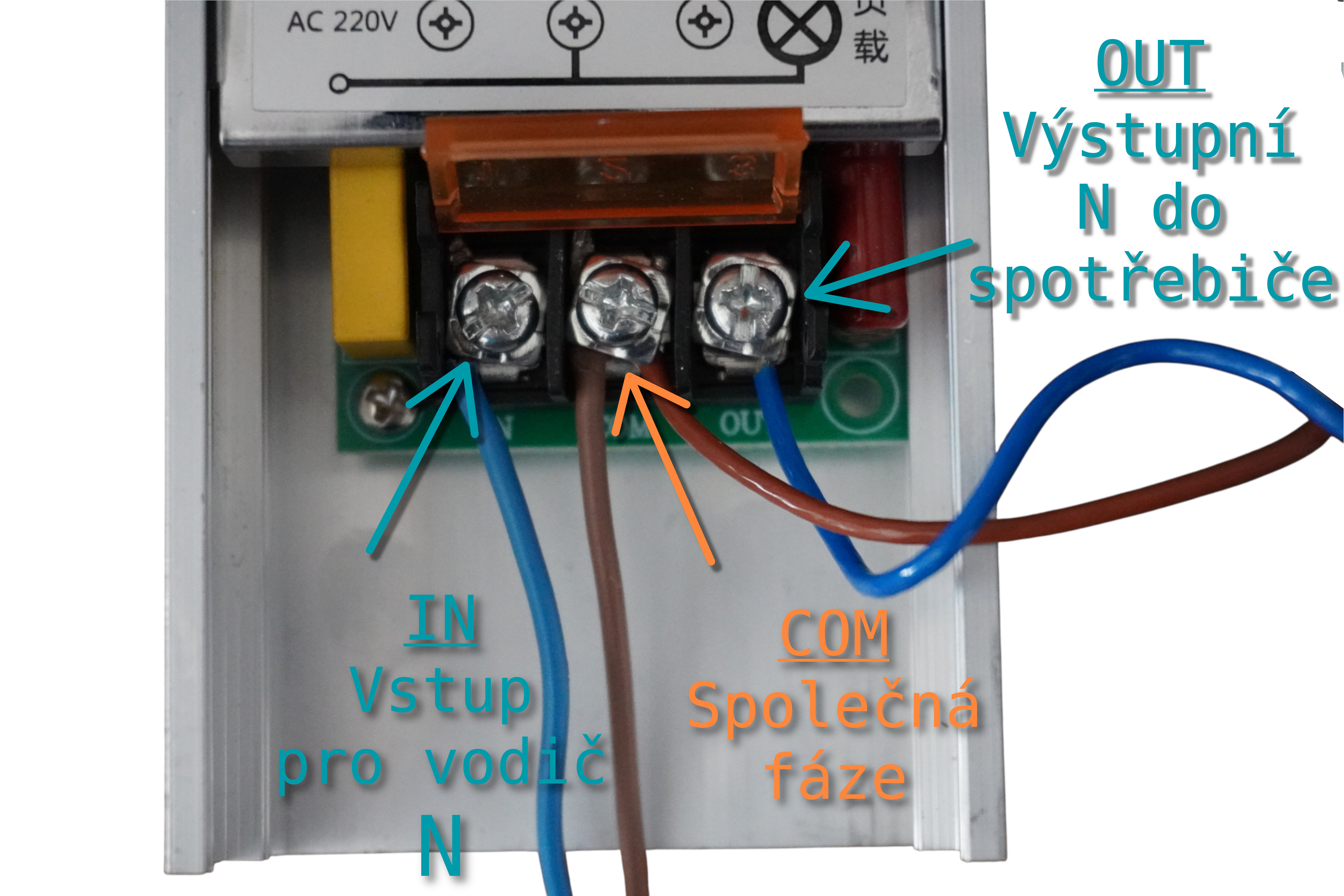

Wiring, ATTENTION! Plug in neutral wire (N) through the regulator, phase conductor (L) it must not go through the regulator!

Included in delivery:

• 1pc AC motor speed controller 220V 6000W dimmer

Remark:

• You need to connect the load. No regulation is possible without load.
• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
• This controller cannot dim energy saving bulbs and LEDs and can only control the speed of commutator motors (drill, angle grinder, etc.).
