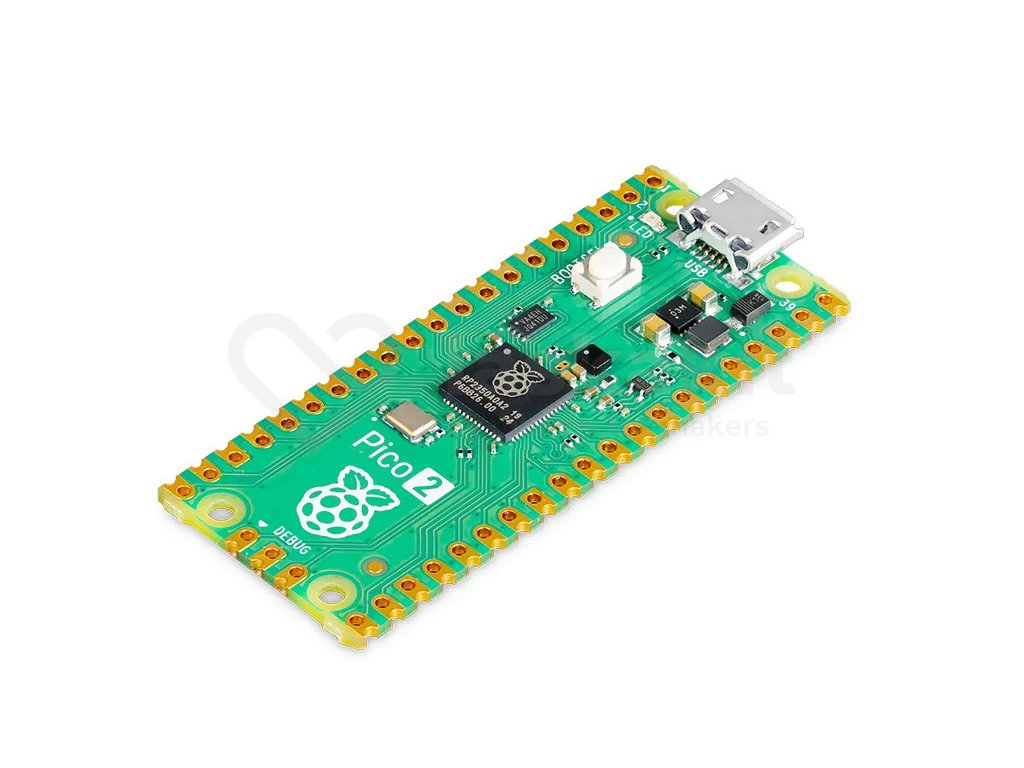

Raspberry Pi Pico 2

Product detailed description

Raspberry Pi Pico 2 is an improved version of the popular development board, built on the new RP2350 microcontroller. It offers a pair of Arm Cortex-M33 cores clocked up to 150 MHz, which can be software-switched to RISC-V Hazard3 cores, double the SRAM memory at 520 kB and 4 MB of on-board flash. Compared to the first Pico, it adds extensive security features while remaining software and hardware compatible with the original model in the same compact design.

The board features multi-function soldering pads around the perimeter, allowing you to solder header pins and insert it into a breadboard thanks to the standard 2.54 mm pitch. Castellated pads allow the entire Pico to be mounted directly onto your own PCB as a surface-mount module.

Thanks to MicroPython, deep guides and easy setup, the Pico 2 works well for beginners; a C/C++ SDK is also ready for use. At the same time, it offers sufficient power and flexibility for professional use – from machine learning and smart homes to wearable electronics and robotics.

Specifications:

• Microcontroller: Raspberry Pi RP2350A
• Cores: 2× Arm Cortex-M33 (FPU, DSP) or 2× RISC-V Hazard3, software-switchable
• Clock Frequency: up to 150 MHz
• Memory:
  • SRAM: 520 kB on-chip
  • Flash: 4 MB QSPI on-board
  • OTP: 8 kB (antifuse, one-time programmable)
• Power Supply: 1.8–5.5 V DC (VSYS) or 5 V via micro USB
• USB: 1.1 controller and PHY, device or host mode
• GPIO: 26× multi-function pins (3 of which can be used as analogue inputs)
• Interface:
  • Interfaces: 2× UART, 2× SPI, 2× I2C
  • ADC: 3× 12-bit channel, 500 ksps
  • PWM: 16 programmable channels
  • PIO: 3 blocks, total of 12 state machines
• Security:
  • Arm TrustZone for Cortex-M
  • signed and encrypted boot, SHA-256 hardware acceleration
  • random number generator, glitch protection
• Integrated Peripherals: temperature sensor, AON timer (replaces RP2040 RTC), ROM-based floating-point libraries, low-power sleep modes
• Programming: drag-and-drop via USB mass storage, MicroPython, C/C++ SDK
• Operating Temperature: -20 °C to +85 °C
• Dimensions: 21 × 51 × 1 mm (DIP40 format, 2.54 mm pitch)
• Wireless Connectivity: No (WiFi and Bluetooth are available in the Pico 2 W version)

Package contents:

• 1× Raspberry Pi Pico 2 (without pre-soldered pin headers)

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustrative purposes only and may sometimes differ from the actual appearance of the item. However, this does not change their basic properties.
