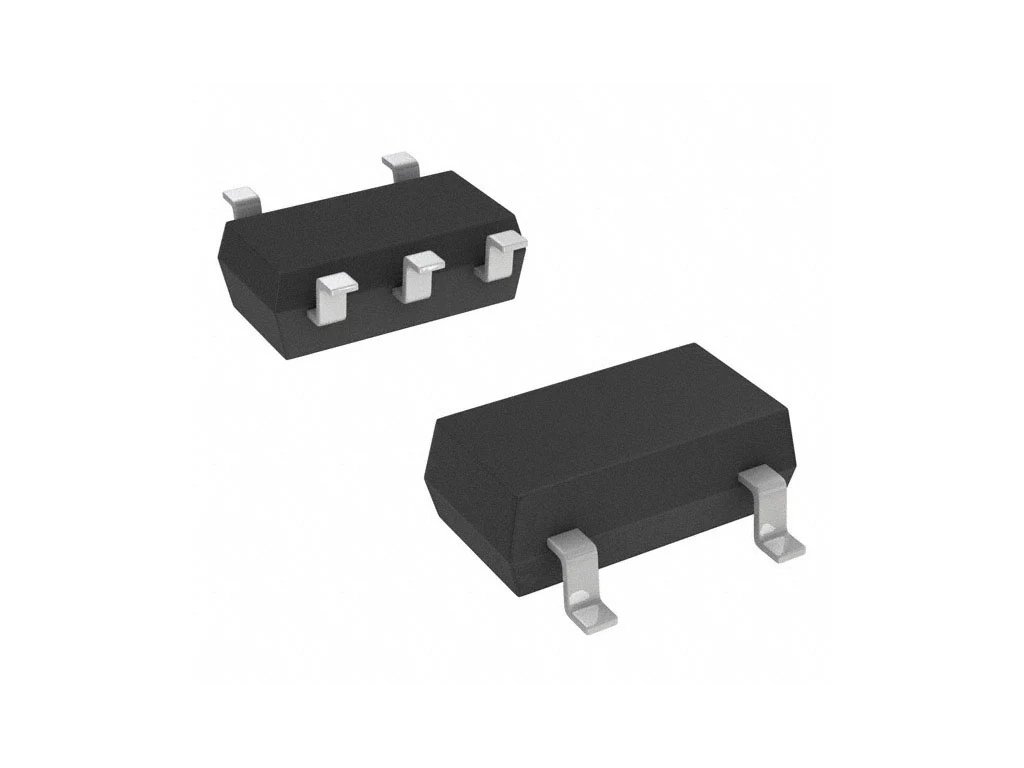

Richtek RT9080-33GJ5 3.3V 0.6A voltage regulator, TSOT-23-5

Product detailed description

Richtek RT9080-33GJ5 is a modern linear LDO regulator designed to provide a stable output voltage of 3.3 V with a maximum output current of up to 600 mA. Its main advantage is an extremely low quiescent current (Low Quiescent Current) of approximately 2 µA, making it ideal for battery-powered devices, IoT applications, and other energy-efficient electronics. Low dropout voltage allows for efficient operation even with a small difference between input and output voltage. The compact TSOT-23-5 package is suitable for use in miniature devices, and integrated protections ensure safe and reliable operation.

Specifications:

• Type: LDO linear regulator
• Model: RT9080-33GJ5
• Output Voltage: 3.3 V
• Maximum Output Current: 600 mA
• Input Voltage: 3.5 – 5.5 V
• Dropout Voltage: Typically Approx. 250 mV (under higher load)
• Quiescent Current: Typically 2 µA (Low Quiescent Current)
• Protections: Thermal Protection, Short-Circuit Protection
• Package: TSOT-23-5
• Operating Temperature: −40 to +125 °C

Package contents:

• 1× Richtek RT9080-33GJ5 3.3 V Stabilizer

Note:

• The product is not a self-contained functional unit and may require professional assembly.
• Photos are for illustrative purposes only and may differ slightly from the actual appearance of the product without changing its properties.
