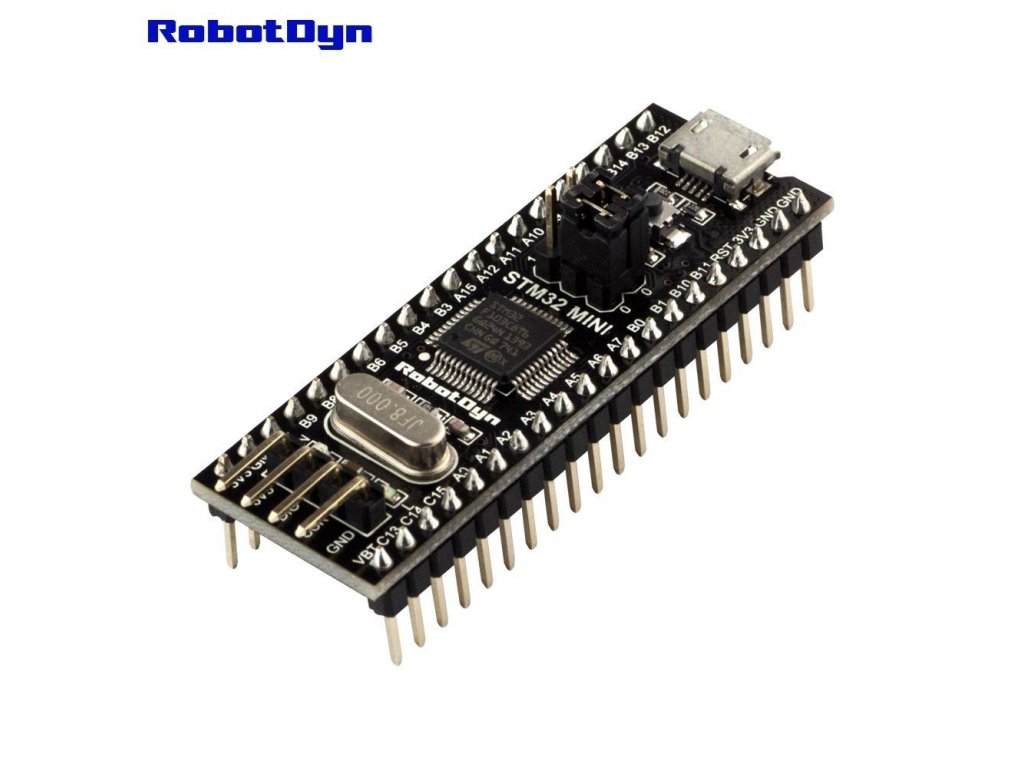

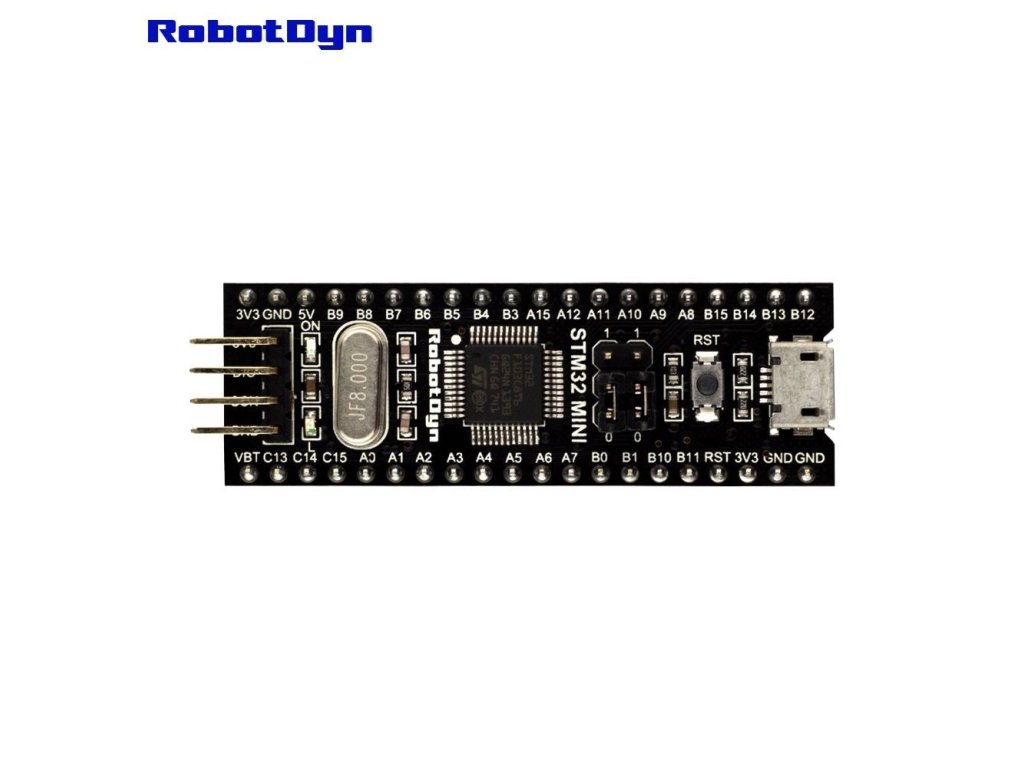

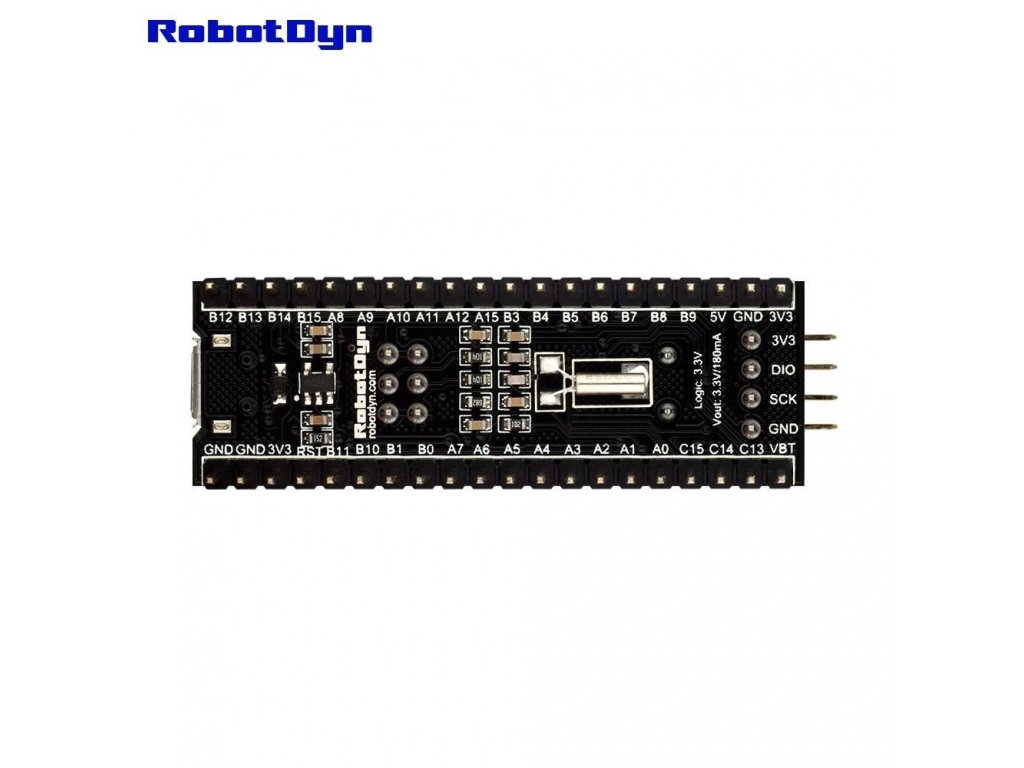

RobotDyn BluePill ARM STM32 STM32F103C8T6 STM firmware
BluePill and RedPill are nicknames for the cheapest kit with ARM STM32 processors.
Development board based on the STM32F103C8T6 processor from the Cortex-M3 series from STMicroelectronics.
Technical parameters of the used processor:
- ARM Cortex-M3, 72 MHz max
- Supply voltage 2.0 - 3.6V
- 64 KB FLASH
- 20K SRAM
- PLL Low-power modes
- 2 x 12bit ADC (0 - 3.6V, 16 channels)
- DMA (7 channels, can be used for timers, ADC, SPI, I2C and USART)
- 7 timers 2x I2C, 3x USART, 2x SPI, CAN, USB 2.0 Full speed
- CRC unit
Wiring with Processing IDE (reference)Programming language
- Multiplatform development environment (Win/Linux/Mac/...)

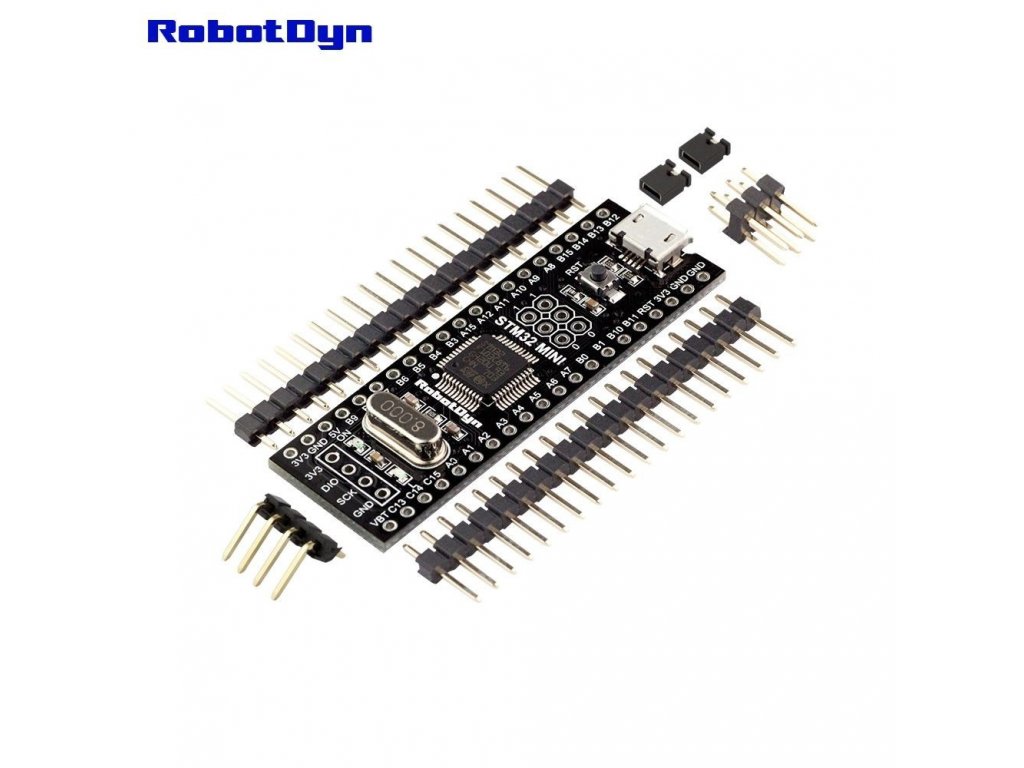

Included in delivery:
- 1x RobotDyn BluePill ARM STM32 STM32F103C8T6 STM firmware
- 1x Pin strips
Sources:
RobotDyn: Schematic Pinout Dimensions
bluepill.com BigBuckBunny video on 2.4'' TFT
Remark:
- The pins are not soldered in the board, but are included in the package.
- This product is not a standalone functional unit and may require professional installation.
- Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
Additional parameters
| Category: | Retired |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.006 kg |
| EAN: | 6970622930693 |
