    Home / Finished / RobotDyn ESP8266-PRO 8M flash

    RobotDyn ESP8266-PRO 8M flash

    Code: DD100027
    Not rated
    RobotDyn ESP8266-PRO 8M flash
    €4,04 €3,34 excl. VAT
    Retrieved from
    The item has been sold out…

    Module with ESP8266 module from RobotDyn in the form of Arduino Nano with 8MB flash memory.

    Detailed information

    Free Shipping
    Free Shipping
    From 100 EUR
    30 Days to Return
    30 Days to Return
    For Registered
    30 Days to Return
    30 Days to Return
    For Registered Customers
    Free Shipping
    Free Shipping
    For orders from 100 EUR
    It Doesn't End With Shipping
    Customer Care
    We handle complaints within 5 days
    Quick dispatch
    Quick dispatch
    Within 24 hours

    Product detailed description

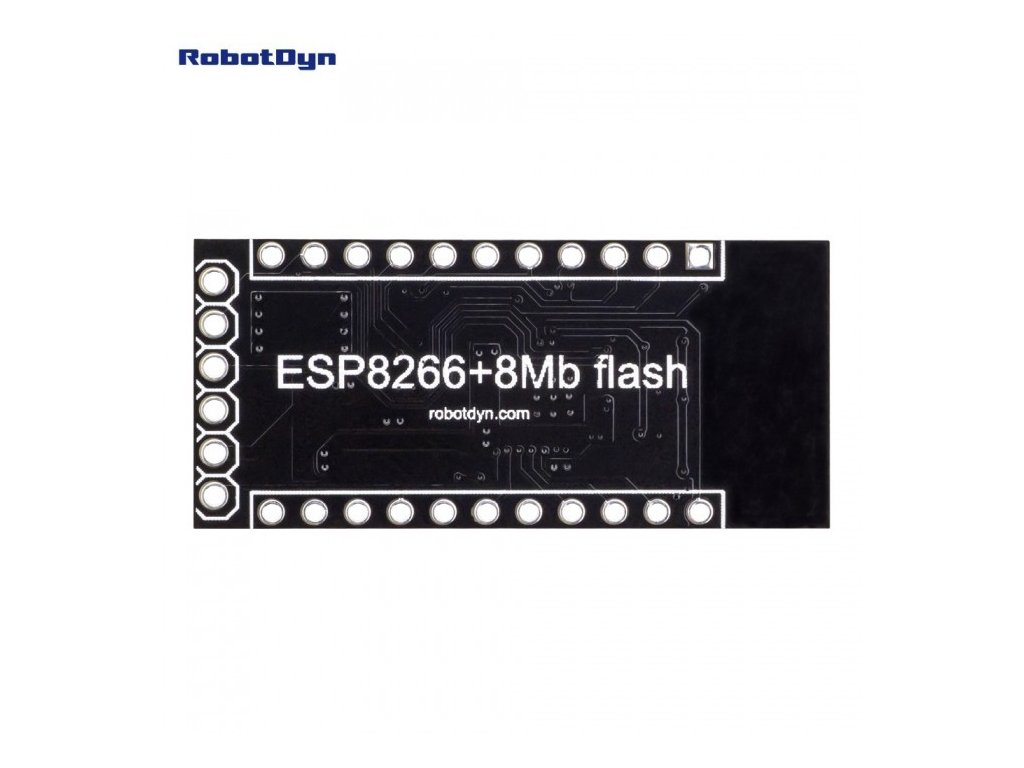

    RobotDyn ESP8266-PRO 8M flash

    The ESP8266-PRO WI-FI module is based on the esp8266 chip from Expressif.
    WI-FI ESP8266-PRO is a lightweight version of the NodeMCU board, it does not have a USB-TTL converter.

    It combines WI-FI access point and station + microcontroller functions and uses a simple LUA-based programming language.

    10 GPIO D0-D10, PWM, IIC and SPI communication, 1-Wire and ADC A0 etc.

    Specifications:

    • SDIO 2.0, SPI, UART
    • Integrated RF switch, balun, 24dBm PA, DCXO, and PMU
    • Integrated RISC processor, on-chip memory and external memory interface
    • QoS management
    • I2S interface for Audio
    • Integrated WEP, TKIP, AES, and WAPI encryption and security
    • Supports APSD for VoIP applications

    Network:

    • 802.11 b/g/n
    • WIFI Direct (P2P), soft-AP
    • Integrated TCP/IP stack
    • Integrated TR switch, balun, LNA
    • Integrated PLLs, controllers, DCXOs and power management units
    • + 19.5dBm output power in 802.11b mode
    • Integrated 32-bit CPU can be used as application processor
    • SDIO 1.1 / 2.0, SPI, UART
    • STBC, 1 × 1 OFF, 2 × 1 OFF
    • A-MPDU & A-MSDU aggregation and 0.4ms guard interval
    • Standby power consumption <1.0mW (DTIM3)
    • Support 3 modes: AP, STA, AP + STA

    Power

    • ONLY 5V!

    Included in delivery:

    • 1pc RobotDyn ESP8266-PRO 8M flash

    Sources:

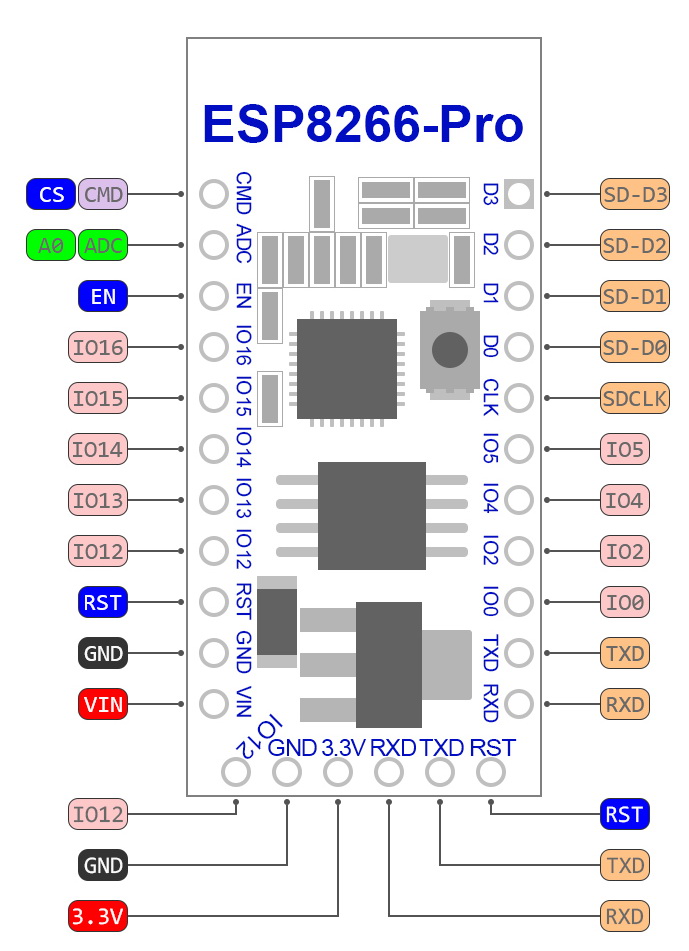

    Schematic PinOut Dimensions

    Remark:

    • This module requires a 5V supply for VCC and 3.3V logic. This is a powerful version of WIFI with good throughput through the environment. At peak times the power consumption can be quite high. It needs at least 300mA.
    • This product is not a standalone functional unit and may require professional installation.
    • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

    Additional parameters

    Category: Retired
    Warranty: 2 years
    Weight: 0.006 kg
    EAN: 6970622930884
