Product detailed description

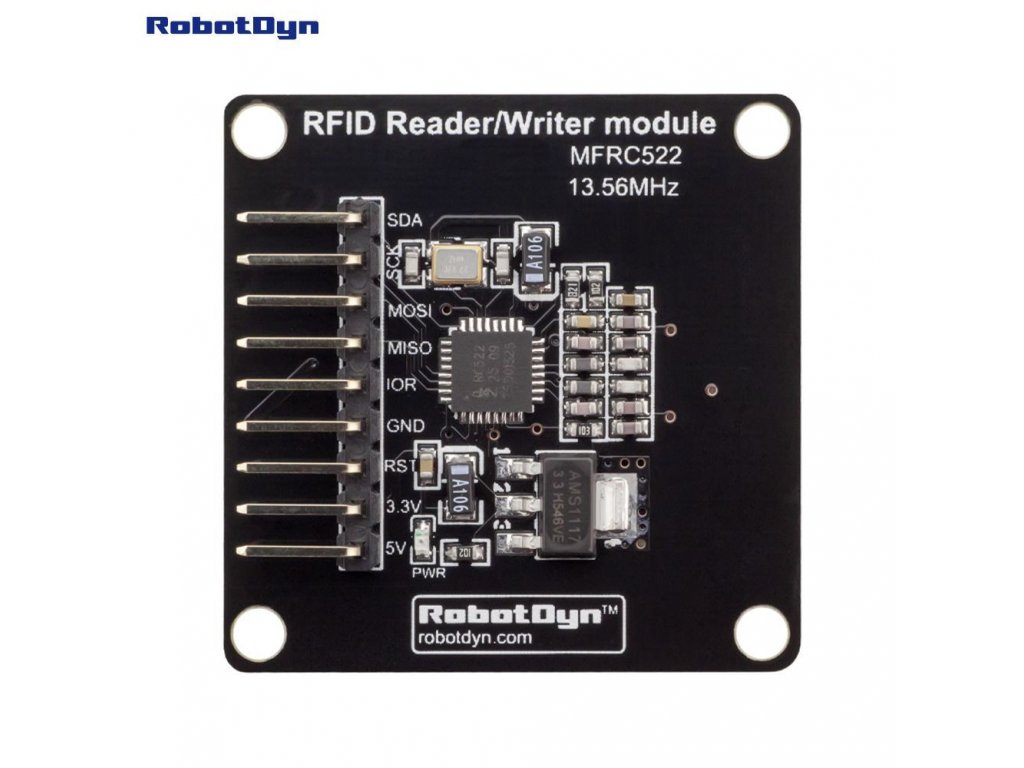

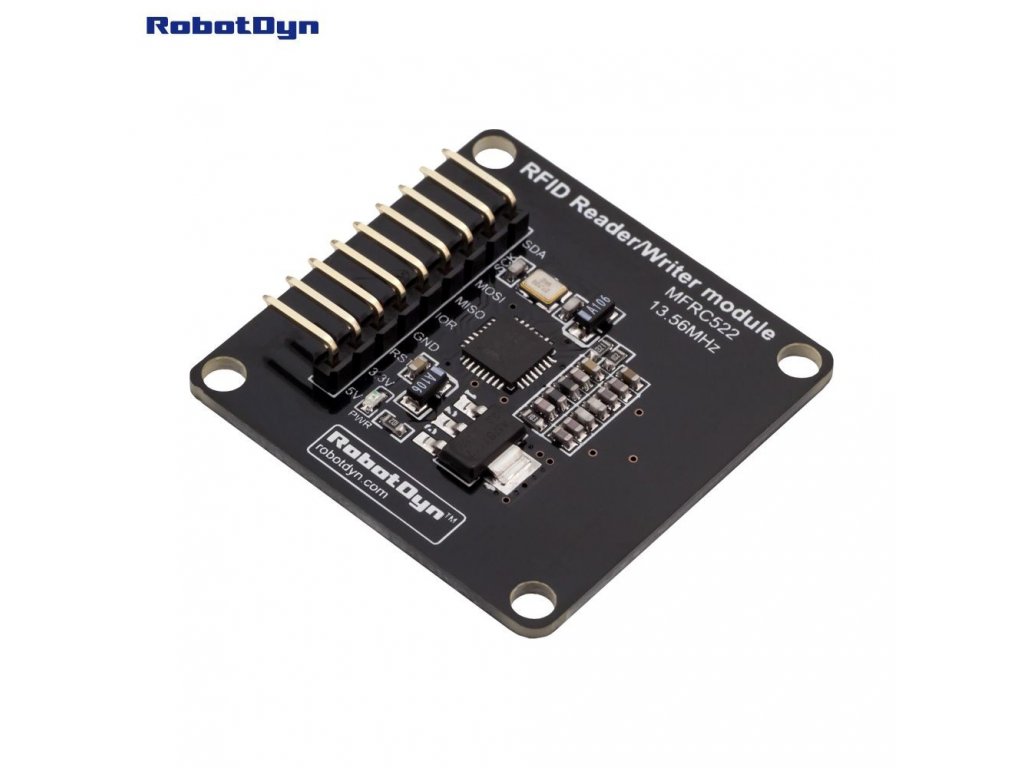

RobotDyn RFID reader with built-in antenna MFRC-522 RC522
With the MF RC522 module you can read and write MIFARE 13.56MHz contactless smart cards.
Specifications:
- Supported card types: Mifare1 S50, S70, Mifare1 Mifare UltraLight, Mifare Pro, Mifare DESFire
- Operating frequency: 13.56 MHz
- Working voltage 3.3-5V
- Working current: 13-26mA
- Quiescent current: 10-13mA
- Sleep current: <80uA
- Peak current: <30mA
- Reading distance: 0~60mm
- Operating temperature: -20 to 80C
- Max SPI speed: 10Mbit
- Dimensions: 36x36mm
Scope of Delivery:
- 1 pc RFID card reader module
Resources:
MFRC522 Datasheet MF1 S50 Datasheet RC522 Quick Start
Note:
This product is not a standalone functional unit and may require professional installation.
Additional parameters
| Category: | Retired |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.006 kg |
| EAN: | 6970622931706 |
