Product detailed description

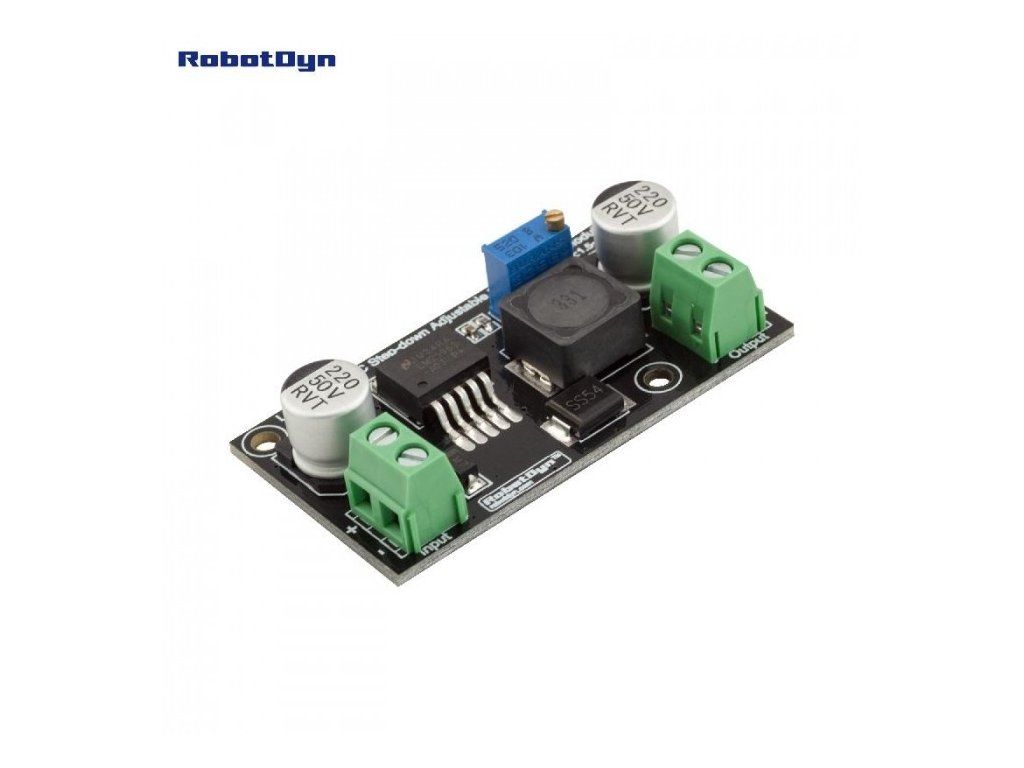

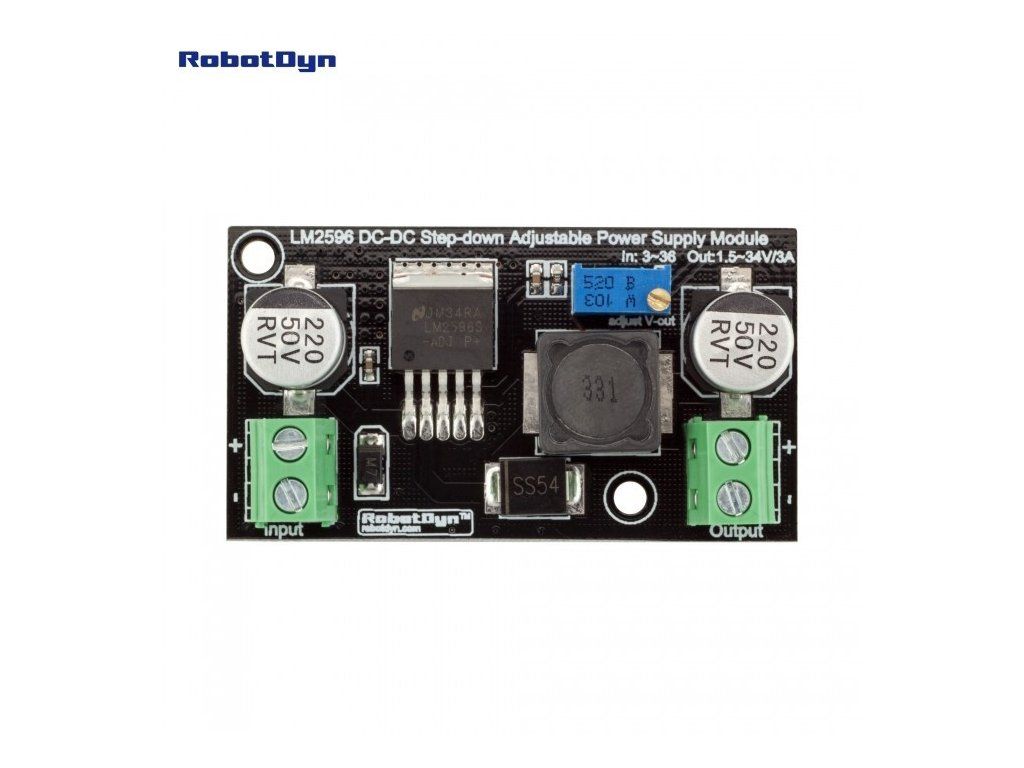

RobotDyn Step-down converter with LM2596
Pulse DC/DC converter Step-down, non-isolated.
LM2596S control circuit in D2PAK-5 housing. The output voltage is continuously adjustable by a multi-turn trimmer.
Product Description:
- input voltage: 3-36V
- output voltage: 1.5-34V (adjustable).
- output current: peak 2A ( 3A max)
- output power: 15W
- Switching frequency: 150kHz
- efficiency: up to 92%

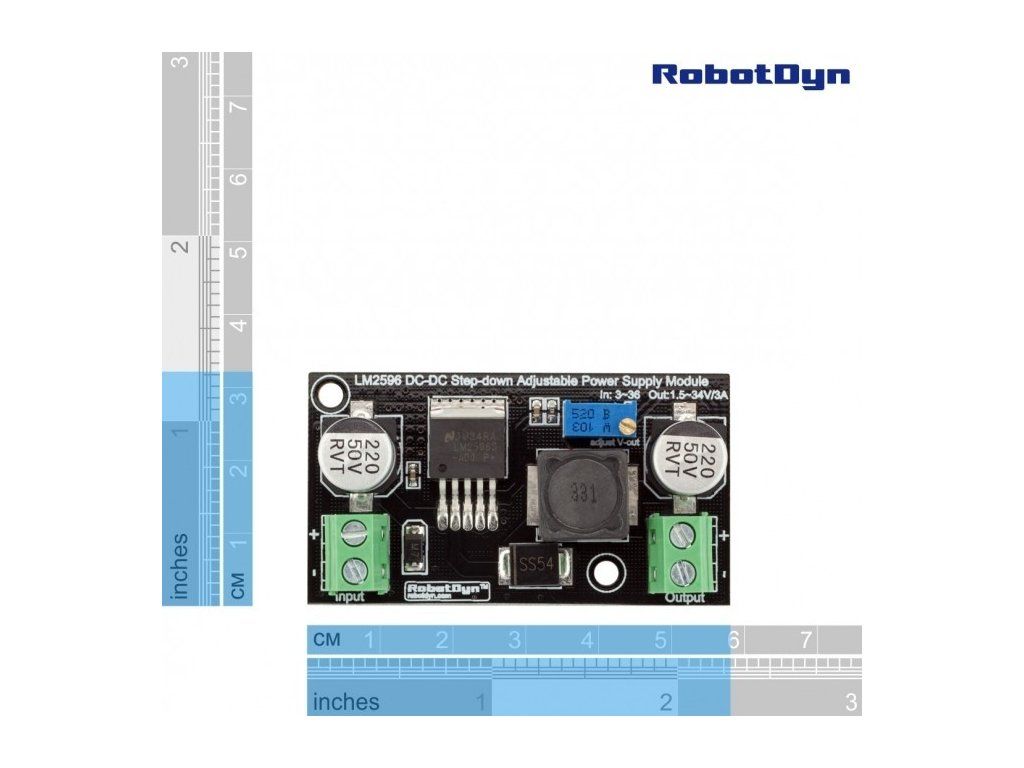

- dimensions: 40 x 21.5 x 13.5mm
Included in delivery:
- 1pc RobotDyn Step-down converter with LM2596
Sources:
Remark:
This product is not a standalone functional unit and may require professional installation.
Additional parameters
| Category: | Retired |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.022 kg |
| EAN: | 6970622932031 |
