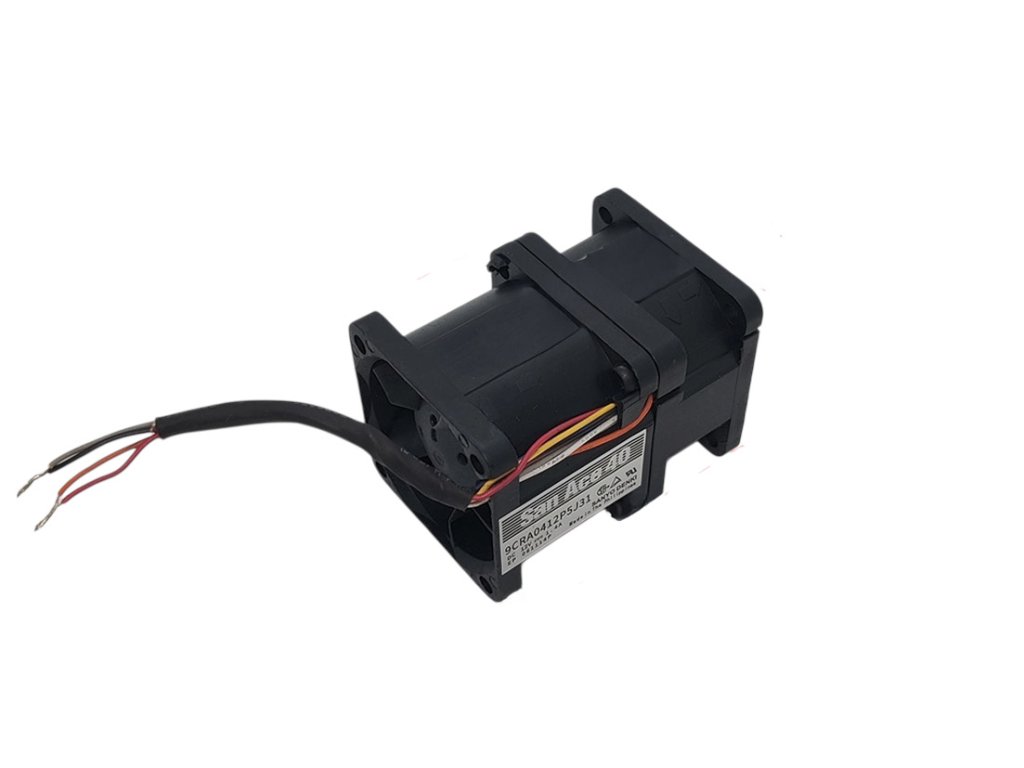

Sanyo Denki San Ace 40 9CRA0412P5J31 fan

Product detailed description

High-performance axial counter-rotating fan (counter-rotating, 2× rotor) for demanding cooling in a compact space. Two independent motors in one body provide high static pressure and stable flow for servers, power supplies and industrial modules.

Specifications:

• Manufacturer: Sanyo Denki
• Series: San Ace 40
• Model: 9CRA0412P5J31
• Fan type: axial with counter-rotating rotors (Counter Rotating, Dual Motor)
• Dimensions: 40 × 40 × 56 mm
• Supply voltage: DC 12 V
• Current draw: approximately 1.4 A (total for both motors)
• Power consumption: approx. 16.8 W
• Speed: up to 25,000 rpm
• Airflow: up to 1.2 m³/min
• Static pressure: up to 1,000 Pa (10.2 mmH₂O)
• Noise level: approx. 60 dB(A)
• Bearings: ball bearing (Ball Bearing)
• Number of wires: 4 (two motors × 4 wires: power, ground, tachometer, PWM)
• Connector: double 4-pin (or 8-pin depending on version)
• Flow direction: axial, with counter-rotating rotors for increased pressure
• Usage: servers, network devices, power supplies, industrial cooling

Package contents:

• 1× Sanyo Denki San Ace 40 9CRA0412P5J31 fan

Comment:

• This product is not a standalone functional unit and may require professional installation.
• Product photos are for illustrative purposes only and may differ slightly from the actual appearance, which does not change their basic properties.
