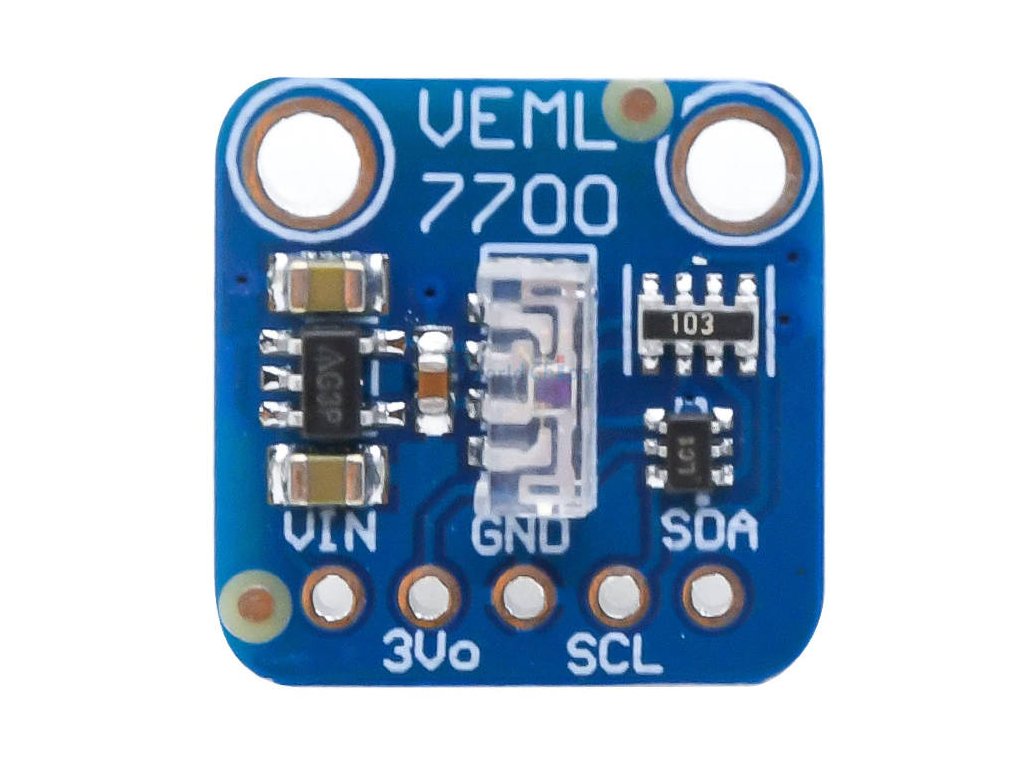

Light intensity sensor VEML7700, I2C

Product detailed description

The VEML7700 sensor from Vishay is a high-precision digital ambient light sensor with 16-bit resolution and an I2C interface. With a wide dynamic range from 0 lx up to 140 000 lx and a resolution of up to 0.0042 lx/step, it covers applications from dark rooms to direct sunlight. The sensor features adjustable gain and integration time, allowing for the optimisation of both power consumption and accuracy. It is suitable for automatic display brightness control, smart lighting, or weather stations with Arduino, ESP32 or Raspberry Pi.

Specifications:

• Interface: I2C (standard and fast mode, 10 kHz – 400 kHz)
• I2C address: 0x10 (fixed)
• Power supply: 2.5 V – 3.6 V DC
• I2C bus voltage: 1.7 V – 3.6 V
• Resolution: 16 bits
• Measuring range: 0 lx – 140 000 lx
• Maximum resolution: 0.0042 lx/step (at ×2 gain, 800 ms integration time)
• Current consumption: typically 45 μA (active mode), 0.5 μA (off)
• Features: adjustable gain (×1/8, ×1/4, ×1, ×2), adjustable integration time (25–800 ms), threshold interrupts, PSM power-saving mode
• Noise rejection: 100 Hz and 120 Hz (artificial light flicker)
• Compatibility: Arduino, ESP32, Raspberry Pi (Adafruit VEML7700 library recommended)
• Operating temperature: −25 °C to +85 °C

Package contents:

• 1× VEML7700 Light Intensity Sensor, I2C

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustrative purposes only and may sometimes differ from the actual appearance of the item. However, this does not change their basic properties.
