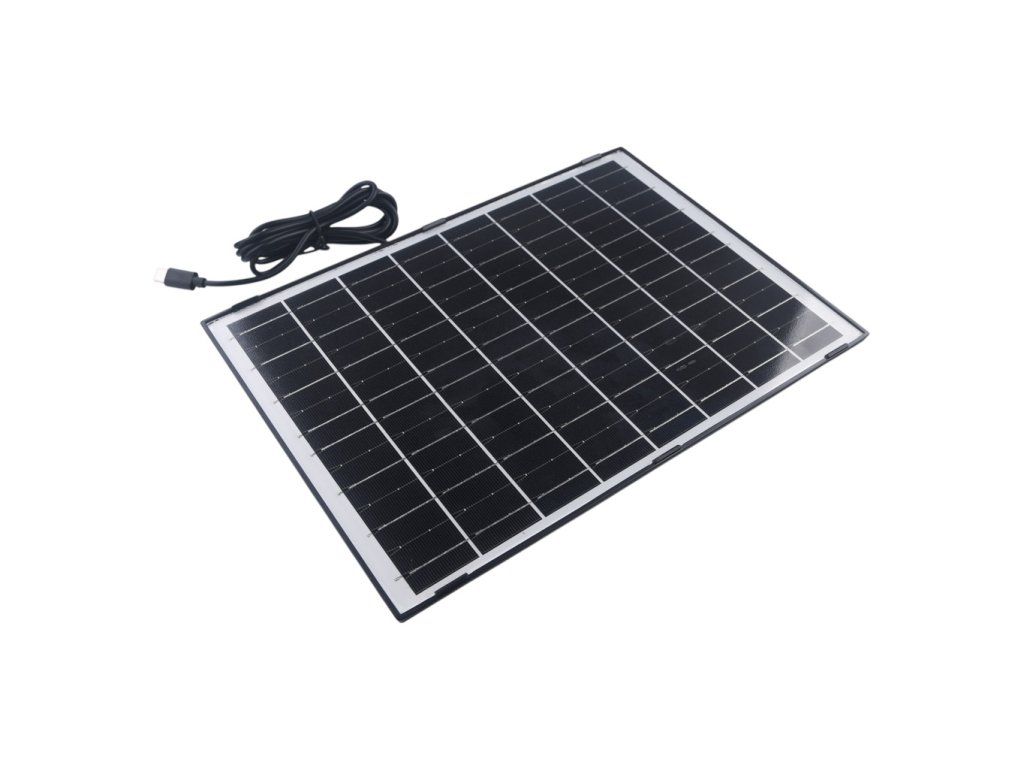

Solar panel QL10-5V 10W 5V/2A with wall mount

Product detailed description

The QL10-5V monocrystalline solar panel with 10 W power and 5 V / 2 A output via USB-C serves as a permanent power source for outdoor devices without access to the mains – security cameras, weather stations, IoT sensors, or development boards. The panel is equipped with Grade A+ M10 monocrystalline silicon cells, ensuring high efficiency even under poor lighting conditions. The cable is terminated with a USB-C connector, allowing you to connect powered devices without soldering or additional adapters. An adjustable wall mount is included in the package, making it easy to orient the panel south at the optimal angle.

Specifications:

• Model: QL10-5V
• Cell type: monocrystalline silicon, Grade A+ M10 cells
• Maximum power: 10 W
• Output:
  • Nominal voltage: 5 V DC
  • Open-circuit voltage (Voc): approx. 6–7.5 V depending on illumination
  • Current: up to 2 A
  • Connector: USB-C (VBUS and GND only, no USB PD communication)
  • Regulation: the panel contains no electronics, regulator or battery
• Dimensions:
  • Panel: 196 × 272 × 15 mm
• Construction:
  • aluminium alloy frame, laminated surface
  • rear cable outlet potted with sealant and closed with a cover
  • adjustable wall mount (included in the package)
• Usage: outdoor installation (cameras, sensors, weather stations, IoT)
• Cable Extension: max. 10 m, 1.5 mm² copper cable recommended

Package contents:

• 1× QL10-5V 10 W solar panel with USB-C cable
• 1× wall mount

Note:

• The panel does not include an integrated battery or charging circuit. The open-circuit voltage is higher than the nominal 5 V; therefore, connect it only to devices with their own input regulation or via a solar charging module.
• The USB-C connector is used only to provide voltage to the VBUS and GND pins – the panel does not communicate via USB Power Delivery, so it may not work with devices requiring PD.
• Direct the panel south; otherwise, the charging capacity will decrease significantly.
• The panel must not be shaded during the day – even partial shade significantly reduces power output.
• Mount the panel so that the back side with the outlet cover faces downwards, never upwards towards the sky.
• Actual power output depends on solar radiation intensity, season, panel tilt, and the current draw of the connected device.
• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustrative purposes only and may sometimes differ from the actual appearance of the item. However, this does not change their basic properties.
